Add and Configure FANUC CNC
For this CNC Work Cell application example, you will add the FANUC CNC to the EtherNet I/P network.

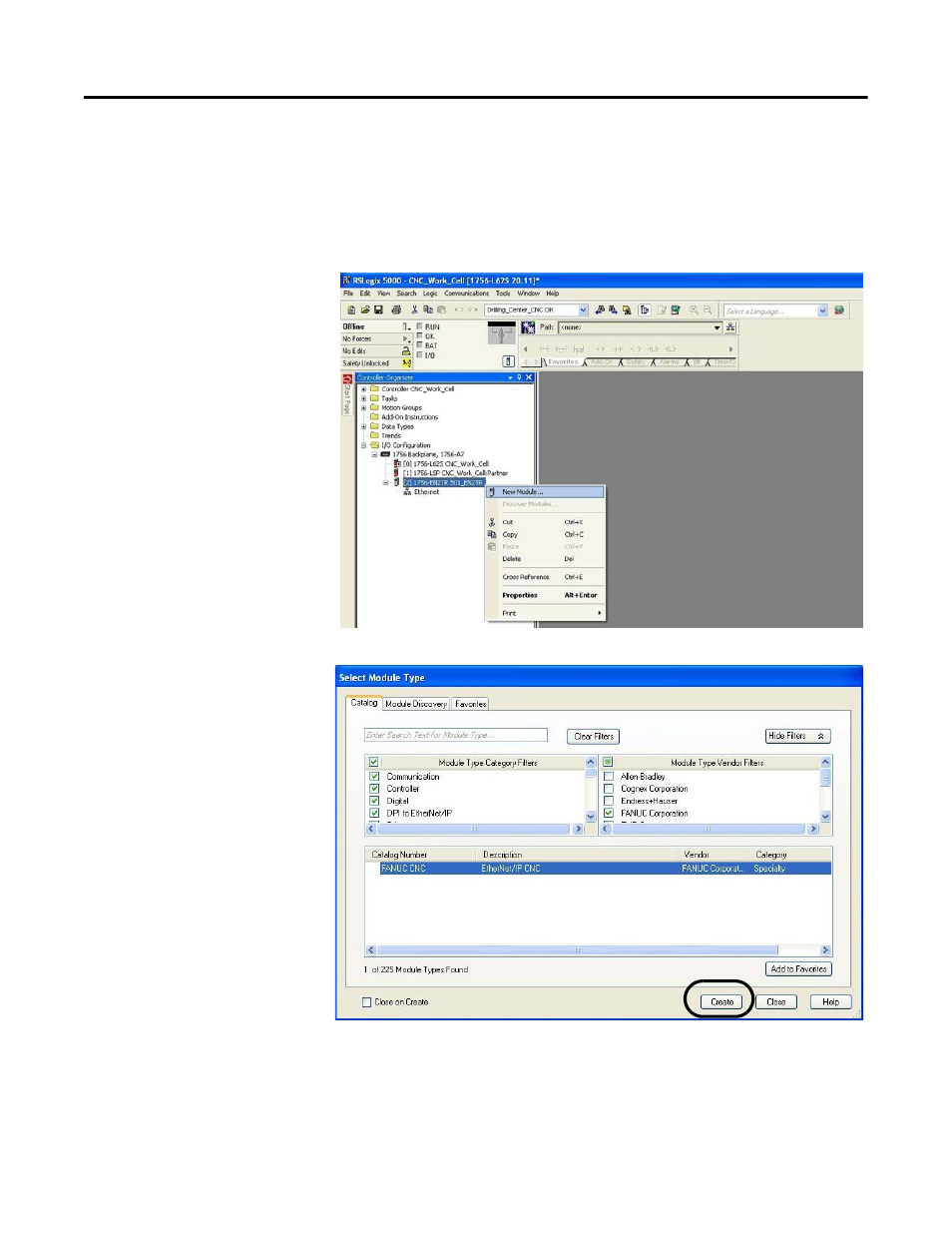

1. Open your RSLogix 5000 software project file.
2. Expand the I/O
Configuration folder in the
Controller Organizer and
browse to the controller
backplane.
3. Right-click the network
communication module for
your CNC and choose New
Module.
For the CNC Work Cell
example, the 1756-EN2TR
module is selected.
The Select Module Type
dialog box opens.
4. Click the FANUC
Corporation vendor and
select the appropriate CNC
series module.
For the CNC Work Cell
example, the FANUC
CNC module type is
selected for the Drill CNC.
5. Click Create.
The New Module dialog
box opens.
