Create a new rslinx enterprise configuration, Configure and download factorytalk project – Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 198
198
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 6
System Commissioning
6.

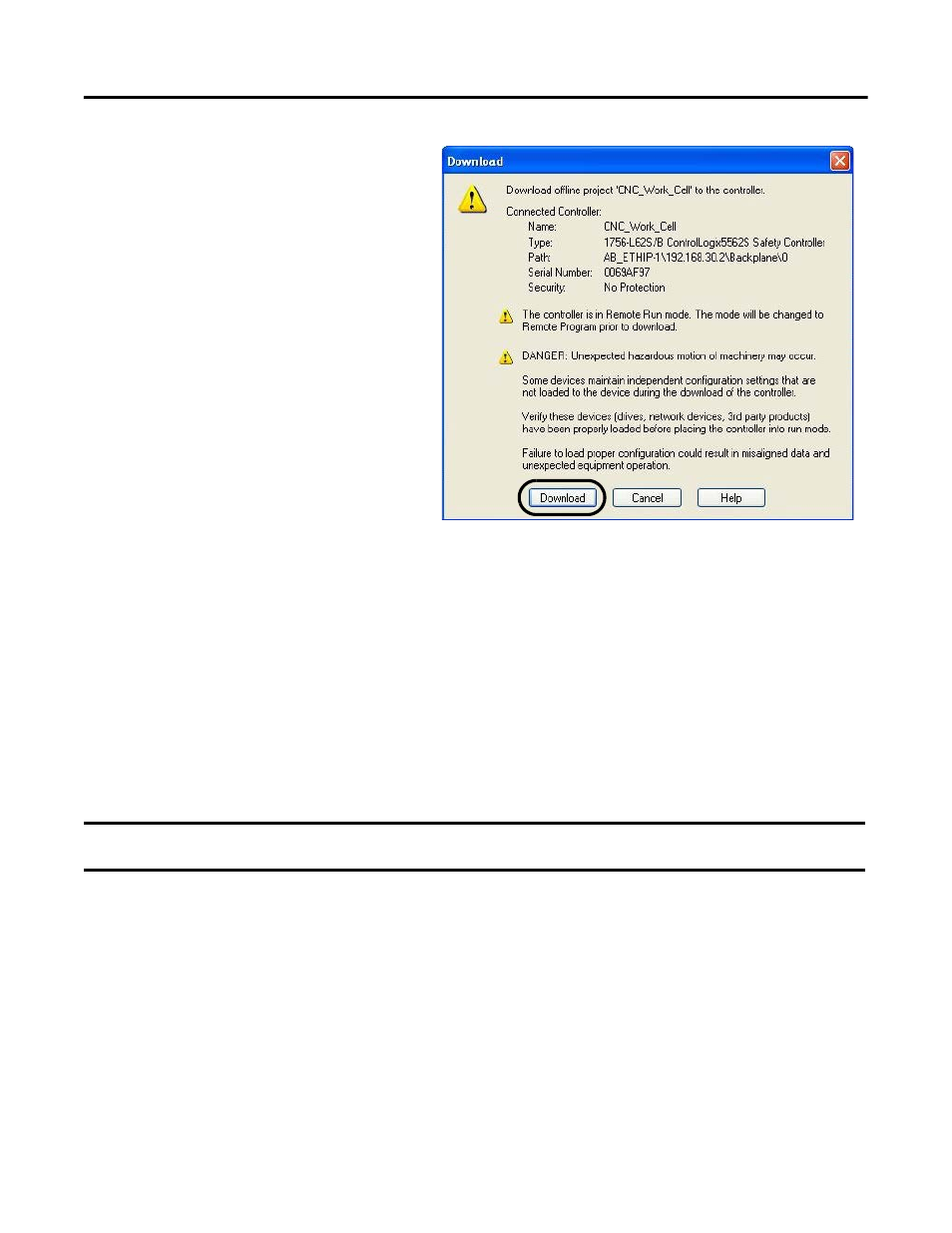

Click Download.
7.
From the Communications menu, choose
Run mode to switch the controller to Run
mode.
Configure and Download FactoryTalk Project to PanelView Plus Terminal
Create a New RSLinx Enterprise Configuration
In this example, we use RSLinx Enterprise software to configure communication between your personal
computer and/or PanelView Plus terminal and your system’s Logix controller.
1.
Open your HMI project file in FactoryTalk View Studio software.
IMPORTANT These download steps assume PanelView Plus power and communication wiring is connected, PanelView Plus terminal
power is applied.
