Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 157
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
157
FactoryTalk View ME Configuration
Chapter 5
4.

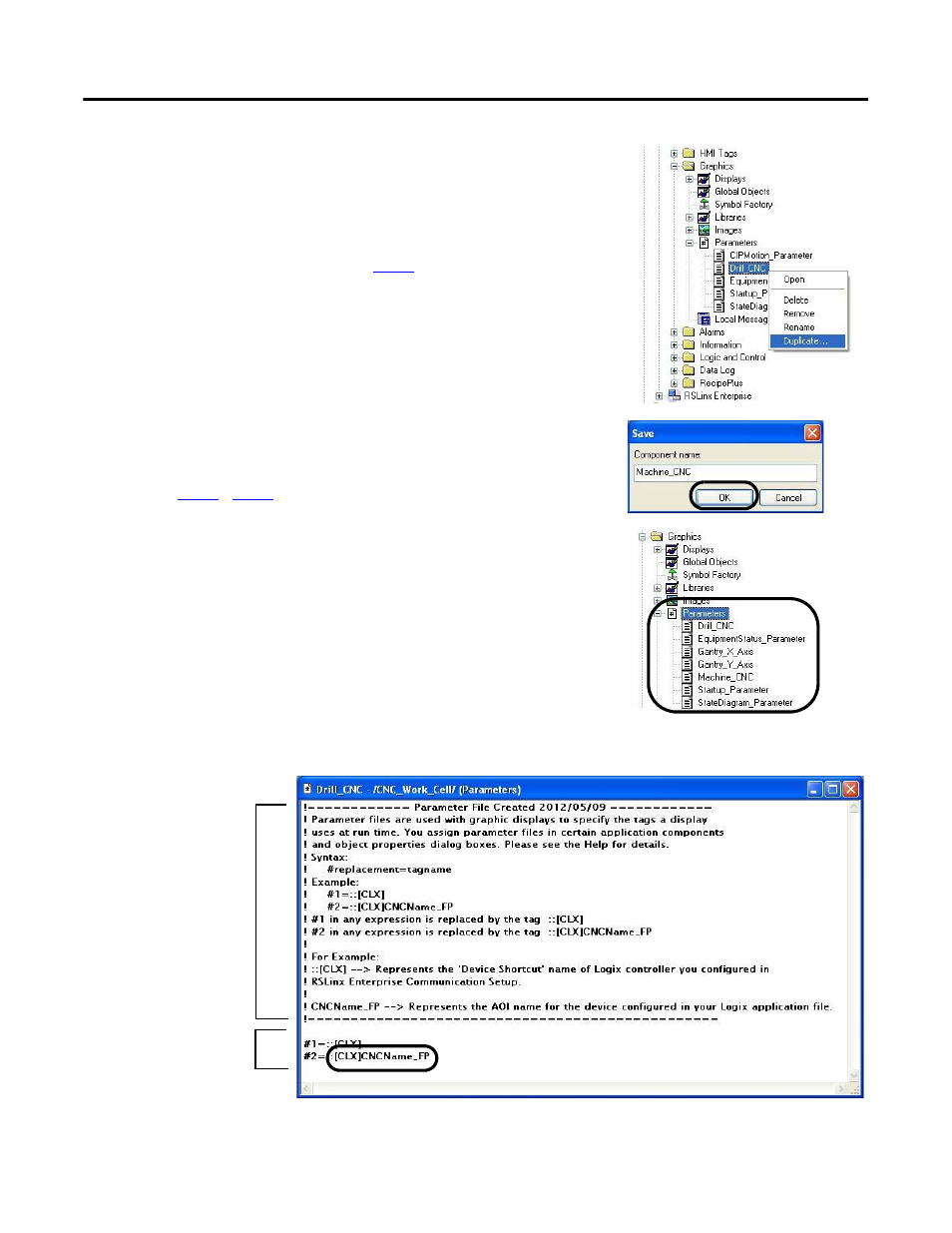

To create another parameter file based on an existing one, right-click
the parameter file and choose Duplicate.
For the CNC Work Cell application example, Drill_CNC and
Machine_CNC use the same Fanuc_CNC_Faceplate, but require
individual parameter files. For example, Drill_CNC is duplicated
and renamed to Machine_CNC in
step 5
.
5.
Rename the parameter file as needed for your application.
6.
Click OK.
7.
Repeat
step 1
…
step 6
for each device or logic module parameter file.
This is the completed CNC Work Cell renamed parameter file
listing.
8.
Assign the parameters in each of the parameter files.
In each parameter file, there are references to controller links
(shortcuts) or specific tag names. The ! before any text indicates that
line is a comment and each parameter file contains instructions on
how to configure it. The # before a number indicates a parameterized
tag.
Parameters
Comments
