Chapter 4
GuardLogix Configuration

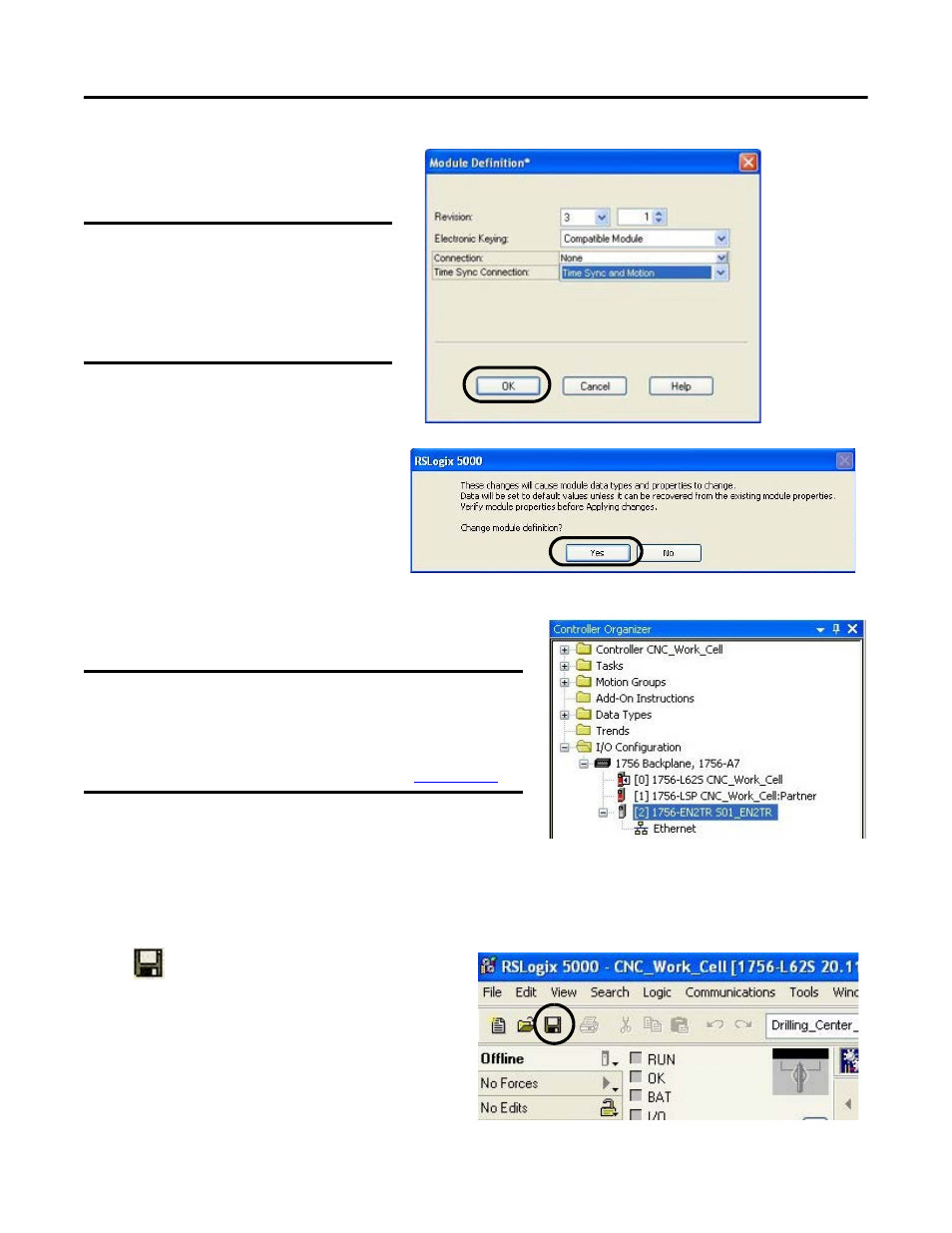

7.
From the Time Sync Connection
pull-down menu, choose Time Sync and
Motion.
8.
Click OK to close the Module
Definition dialog box.
9.
Click Yes when prompted to confirm
your module definition changes.
10.
Click OK to close the New Module
dialog box.
Your new module appears under the
I/O Configuration folder in the Controller Organizer.
Save the Project File
When you configured the ControlLogix controller you named your (.acd) application file. In this example, the
file name is CNC_Work_Cell. Before closing RSLogix 5000 software, save your file.
Click
to save your RSLogix 5000 application
file.
IMPORTANT Time Sync functionality is what
enables motion control on an
Ethernet network. While not
specifically required for the CNC
communication, without this
setting, you won’t be able to run
motion applications.
IMPORTANT For the CNC Work Cell application example, the
1756-EN2TR Ethernet module is the only communication
module that is needed. However, if your application
requires other communication modules, such as sercos
communication, for Kinetix drives, refer to the Drives and
Motion Accelerator T
.
