Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012

147

Chapter

5

FactoryTalk View ME Configuration

In this chapter, you create the operator interface application file for your system by using FactoryTalk View
Studio software. The toolkit includes preconfigured machine and device faceplate displays that provide status,
control, and diagnostics for your supervisory PLC and CNC systems. Like the logic modules, the faceplate is
designed to be used independently, or with other faceplates (from other toolkits) assembled together based on
your specific application requirements.

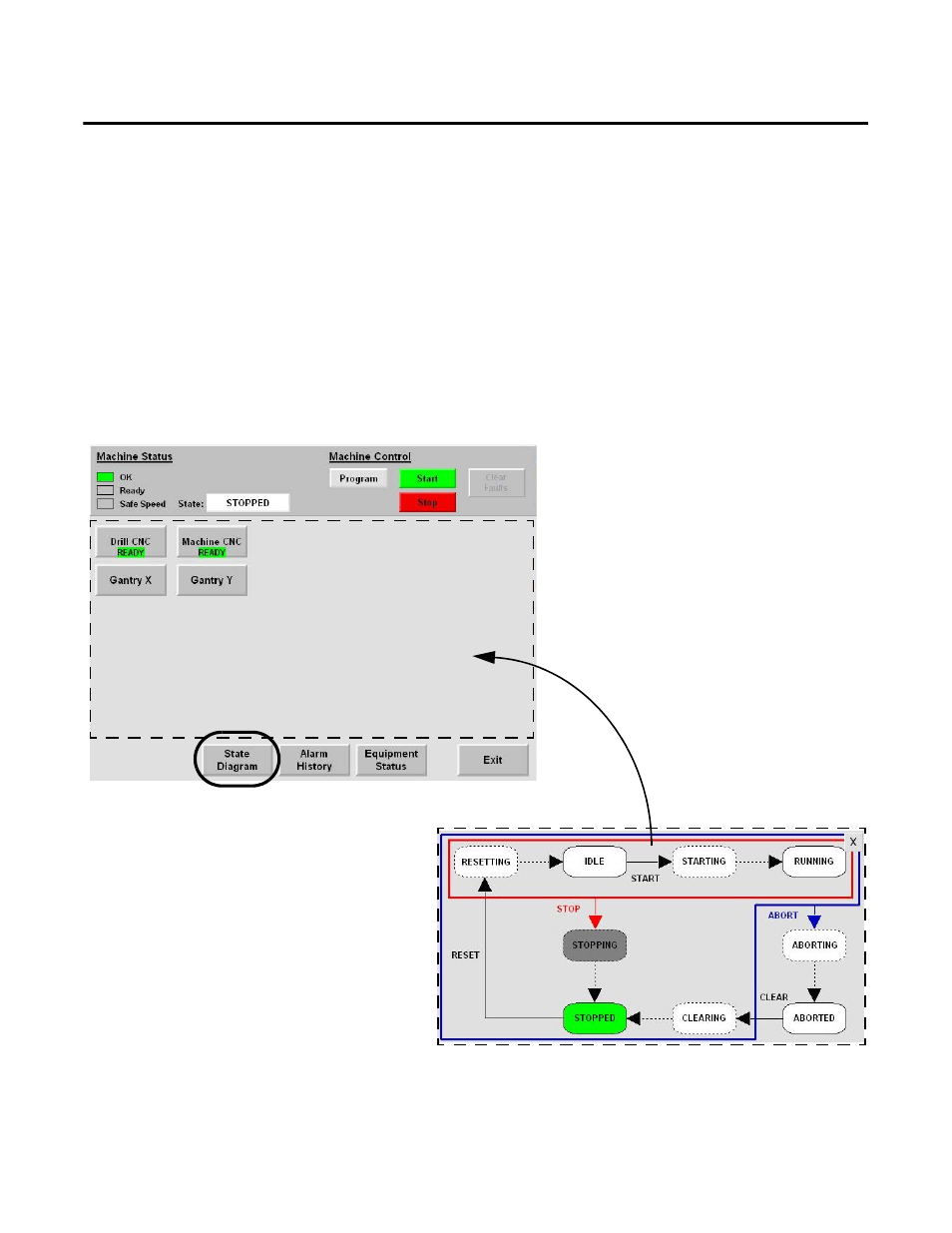

Machine State Diagram Faceplate Display

Machine Startup Faceplate Display

This display provides overall machine
status and control. It may also be used as
the main navigation display for access to
the other device, Alarm History, and
Equipment Status faceplate displays in
your application.

This display provides a graphical machine state

status and is configured to fit within the middle

section of the Startup display when launched

from the State Diagram Goto display button.

This display is sized for use with PanelView Plus

700, or larger, terminals.
