Page 84: Using the dmat wizard
84
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 4
GuardLogix Configuration
Create an Initial GuardLogix Project Using the DMAT Wizard
If Rockwell Automation Kinetix or PowerFlex drives are used in the system, the DMAT Wizard can be used to
significantly streamline GuardLogix configuration and standard logic.
Order and Run the DMAT Wizard
1.
Order a copy of the Drives and Motion Accelerator Toolkit DVD, publication
, from your
local Rockwell Automation distributor or sales representative.
2.
Install the Drives and Motion Accelerator Toolkit onto your computer.
3.
Run the DMAT Wizard following the instructions in Chapter 1 of the Drives and Motion Accelerator
Toolkit Quick Start, publicatio
a. When configuring project in the DMAT Wizard, be sure to select the GuardLogix controller within the
machine configuration if you are incorporating safety logic into the supervisory controller.
b. Configure all of the low voltage (PowerFlex) and servo (Kinetix) drives for your system.
c. You will be adding the FANUC CNC AOP and associated logic modules per the instructions later in
this chapter.
Import the Preconfigured RSLogix 5000 Project
Follow these steps to open the preconfigured RSLogix 5000 project.
1.

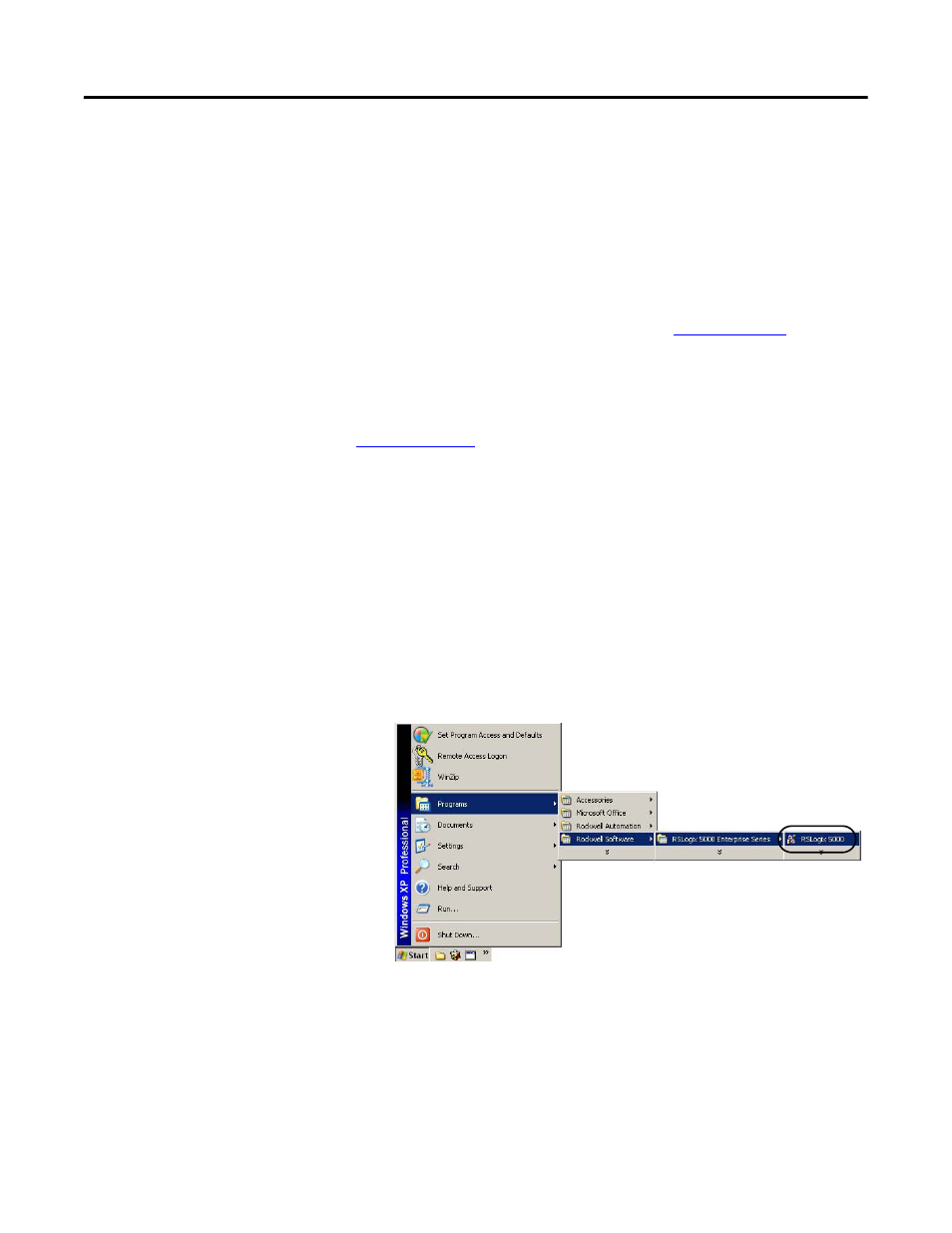

Launch RSLogix 5000 software.
