Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 180
180
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Chapter 5
FactoryTalk View ME Configuration
3.

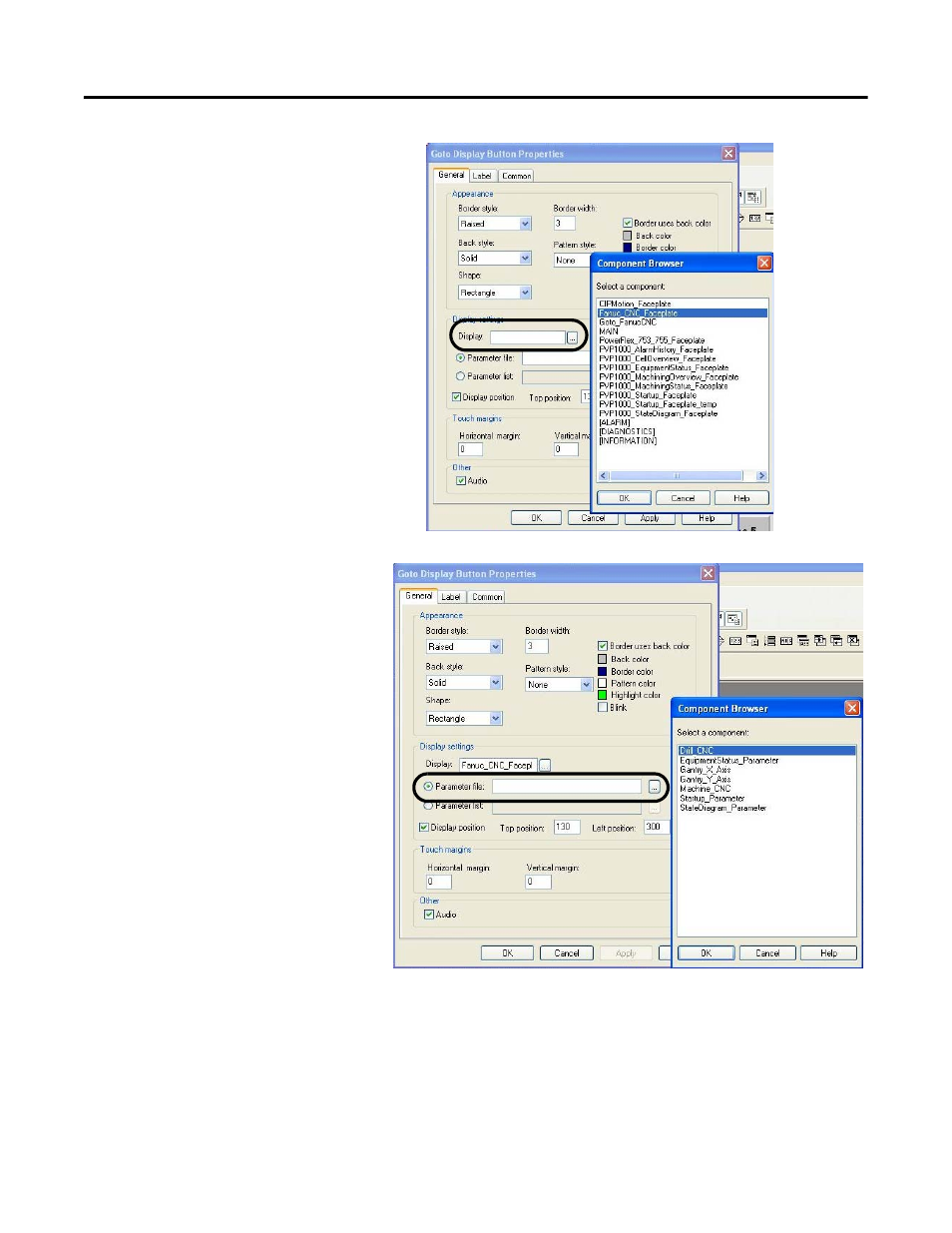

On the General tab, click the
browse button next to the Display
field.
4.
Select the desired faceplate display
and click OK.
5.
Click the browse button next to the
Parameter file field.
6.
Select the associated parameter file
and click OK.
