Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 93
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
93
GuardLogix Configuration
Chapter 4

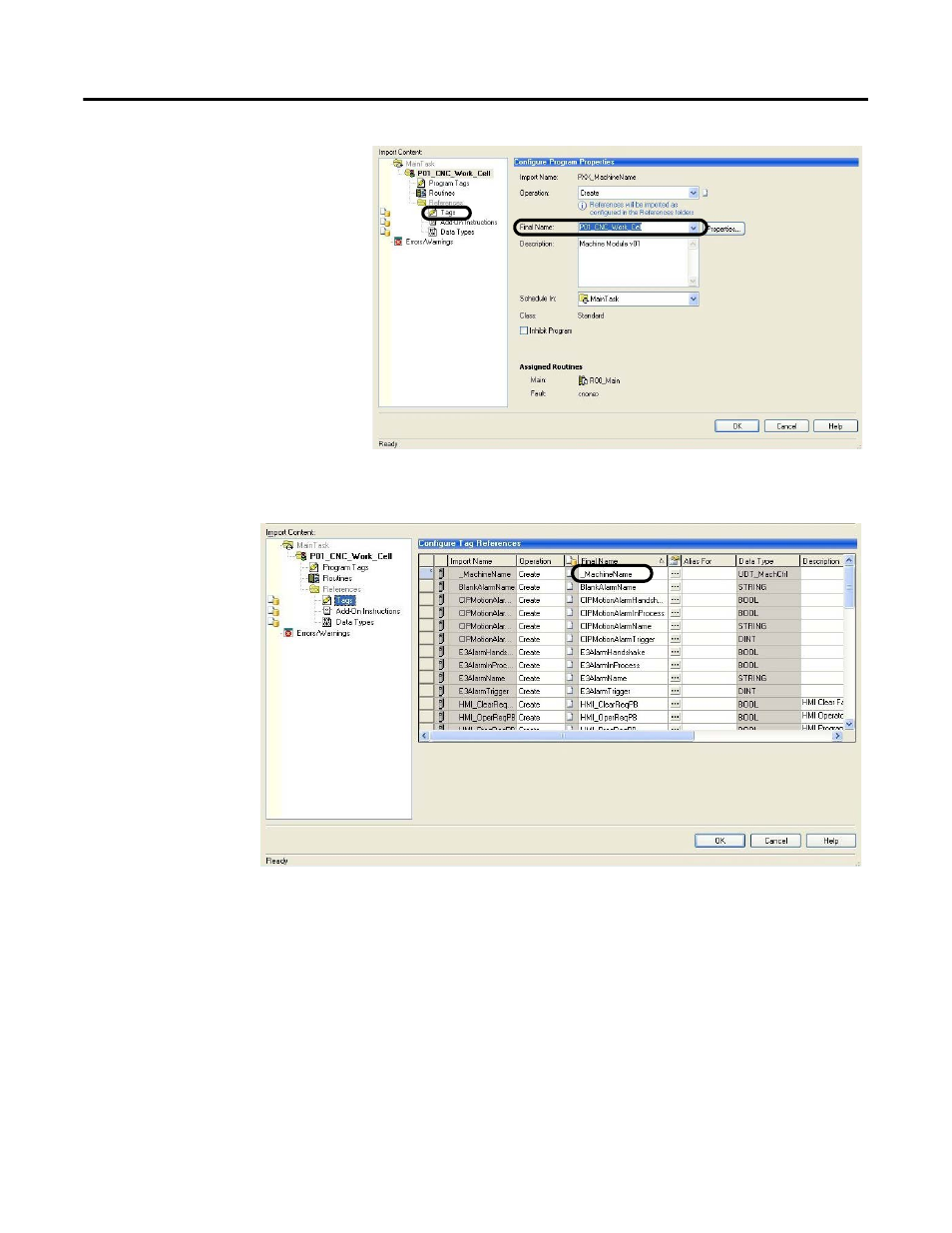

6.
Type the desired name for your
machine in the Final Name field.
For the CNC Work Cell
application example,
P01_CNC_Work_Cell is the
Final Name.
7.
Click Tags in the Import
Content organizer.
The Configure Tag References dialog box opens.
8.
Replace _MachineName with the desired tag name of your machine.
