242

Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012

Appendix A

Logic Program Overview

Device Module Control Logic Example

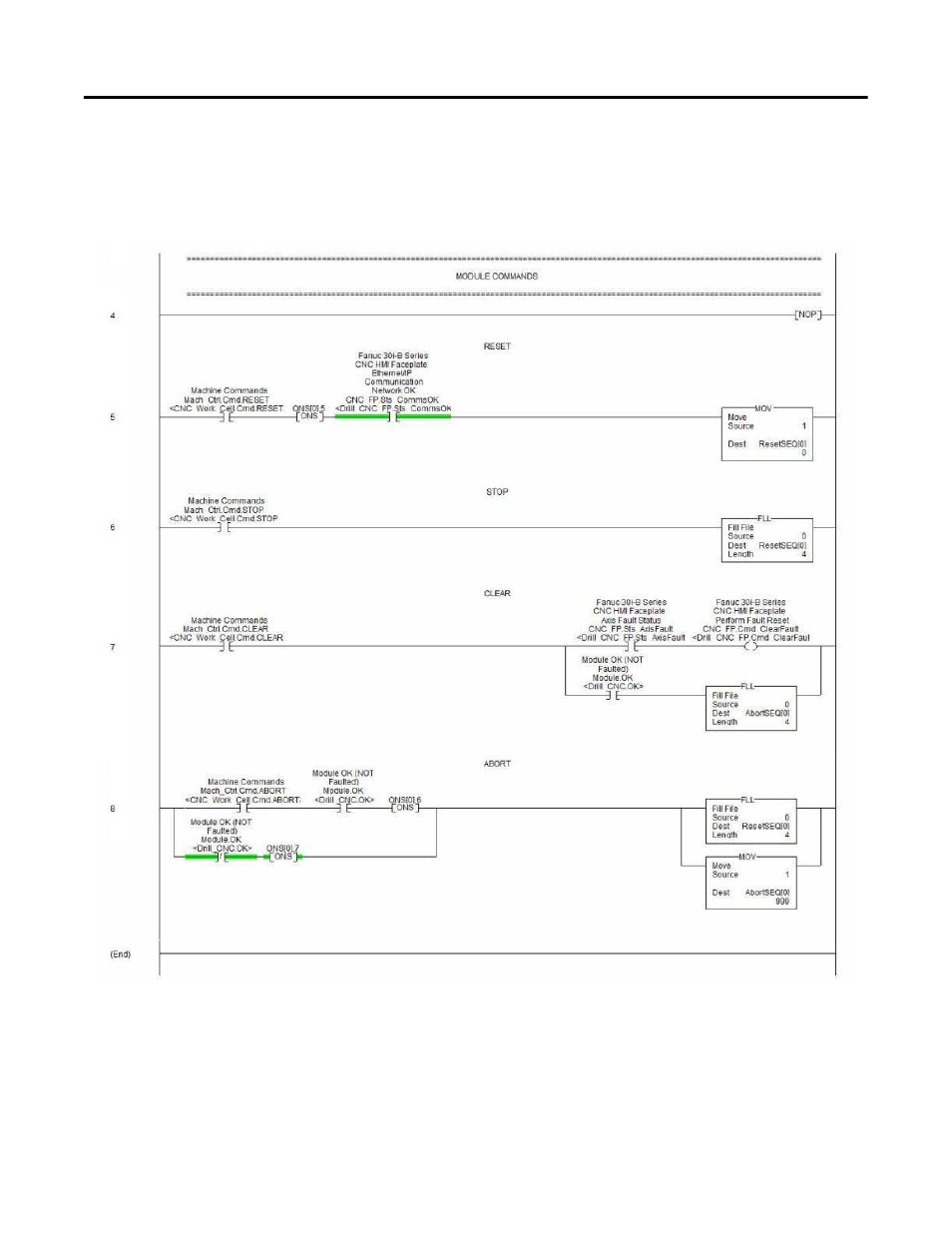

In this example, the R03_Control routine for a FANUC CNC device module initiates and/or clears the reset
and abort sequences. The routine also attempts to clear any active faults.

Refer to the toolkit directory
C:\Program Files\RA_Simplification\CMAT\A-Files\6-Project Examples\CNC-Work-Cell folder
for a complete example of a logic program.
