Chapter 5
FactoryTalk View ME Configuration

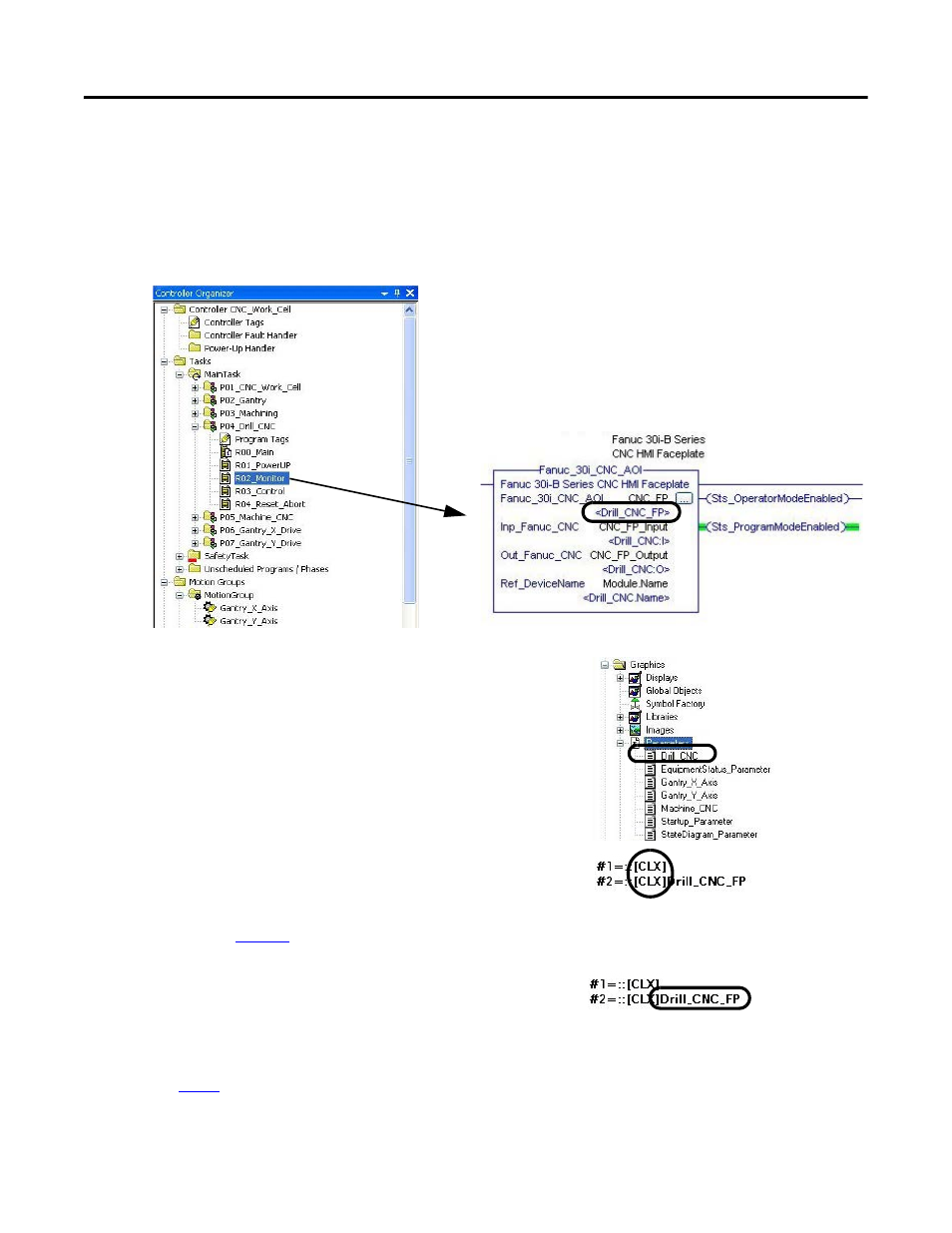

For example, in the CNC Work Cell Drill_CNC parameter file, parameter #1 contains the shortcut name
[CLX]. This shortcut name matches the name created in your RSLinx Enterprise communication setup.
Parameter #2 represents the tag name for the specific faceplate Add-On Instruction, within your RSLogix
5000 project, from which the faceplate requests data.
The CNC Work Cell Drill_CNC parameter #2 is assigned to the faceplate Add-On Instruction tag
named Drill_CNC_FP found in the R02_Monitor routine of the P04_Drill_CNC program.
a. Double-click the parameter file to open it.
b. Enter your application controller’s shortcut name in all
parameters.
c. Enter the associated faceplate Add-On Instruction tag name
of the device or module for this faceplate parameter.
d. Close parameter file and acknowledge the Save Changes
dialog box.
9.
Repeat
step 8
for each of your device or module faceplate parameters.
TIP
Less editing is required when assigning HMI alarm tags if you name your controller shortcut [CLX]. Refer to
for configuring your controller shortcuts in RSLinx Enterprise communication setup.
