200

Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012

Chapter 6

System Commissioning

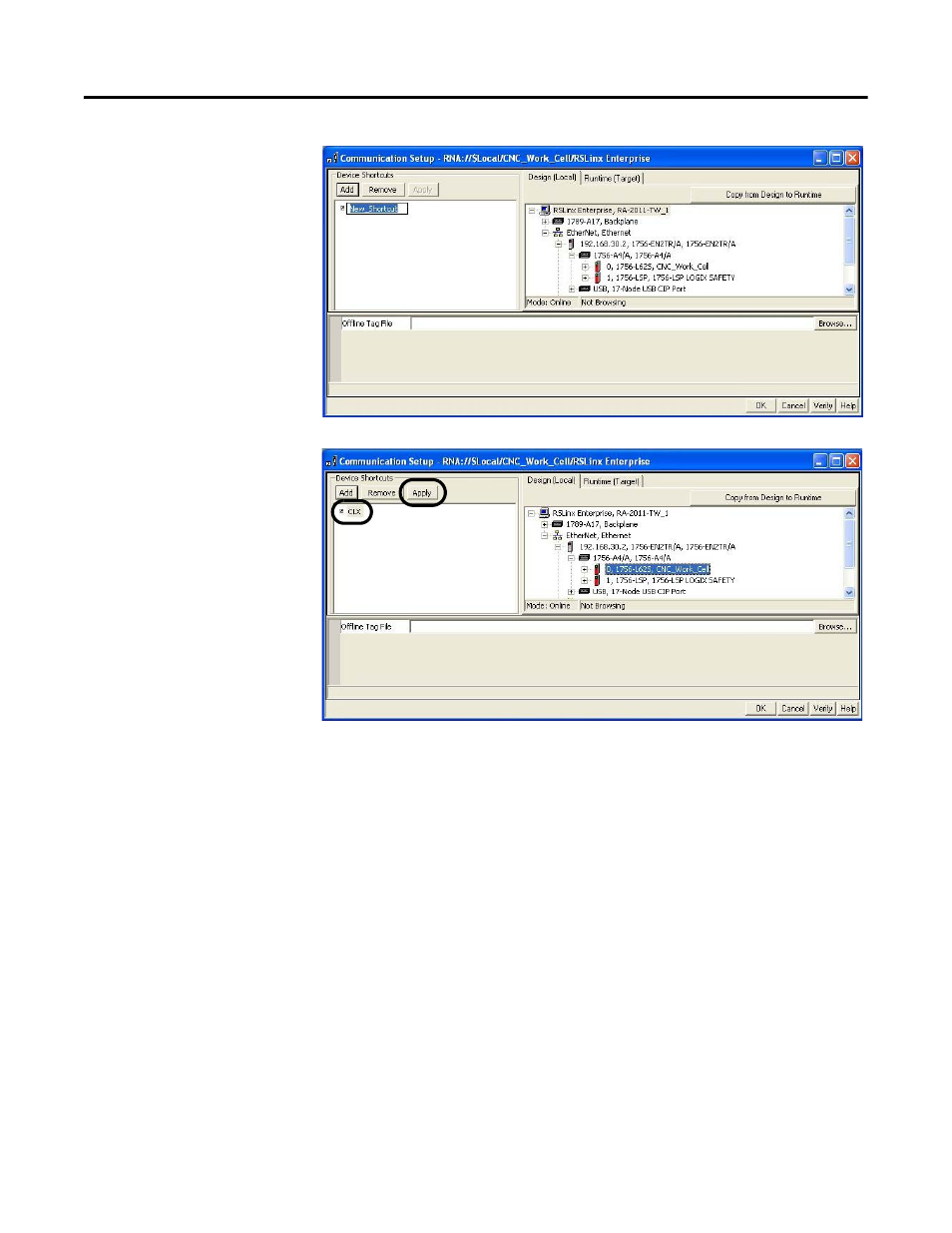

A new device shortcut
appears.

6.

Name the shortcut.

For this example, the
shortcut is named CLX.

7.

Select the new device
shortcut and the
controller.

For this example, CLX
shortcut and 1756-L62S
controller is selected.

8.

Click Apply.

A verification dialog box
appears showing that the
shortcut was assigned to
the design path.

9.

Close the verification
dialog box.

The Apply button dims indicating the shortcut is attached to the path.

Configure Runtime (Target) Communication

The Runtime (Target) tab displays the offline configuration from the perspective of the device that is running
the application and comprises the topology that is loaded into a PanelView Plus or PanelView Plus CE terminal.

In this example you copy the configuration from the Design (Local) tab to the Runtime (Target) tab.
