Chapter 5
FactoryTalk View ME Configuration

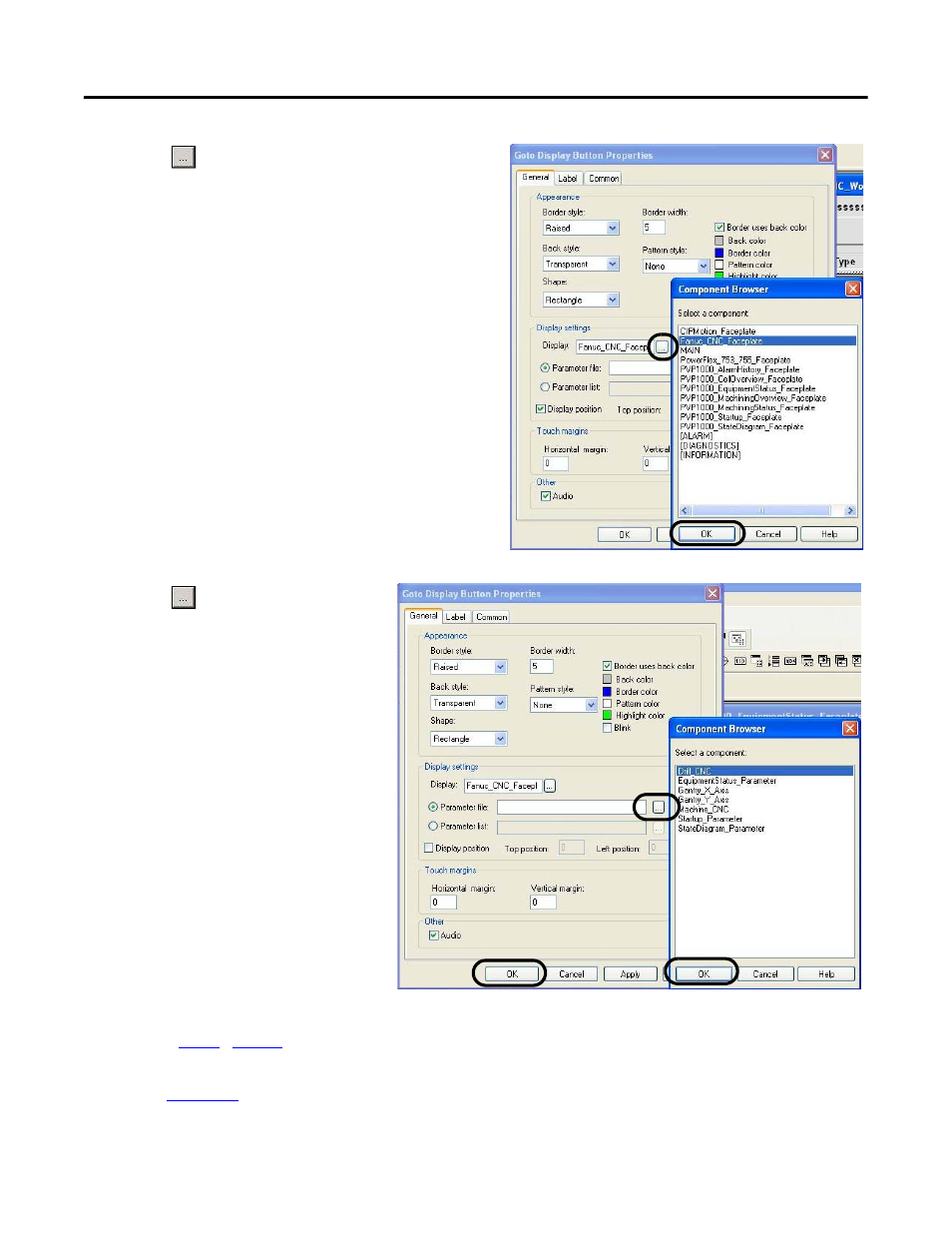

4. Click to browse the display faceplates.
The Component Browser opens.
5. Select the faceplate display to launch from the first
row Goto display button.
For the CNC Work Cell application example, the
Fanuc_CNC_Faceplate is selected.
6. Click OK to close the Component Browser dialog
box.
7. Click to browse the parameter
files.
The Component Browser opens.
8. Select the parameter associated with
the display to be launched from the
first row Goto display button.
For the CNC Work Cell application
example, the Drill_CNC parameter
is selected.
9. Click OK to close the Component
Browser dialog box.
10. Click OK to save your edits to the
Goto Display Button Properties
dialog box.
11. Repeat step 3 … step 10 for each Goto Display Button used in the machining status faceplate.
Unused buttons can remain on the display, but won’t be visible based on the Inp_NumRowsVis tag value
set in
Chapter 4 .
