Chapter 3
FANUC CNC Configuration
Editing Application Logic Modules and Adding Code
1.
Open the FANUC LADDER
III file that was saved previously.
2.

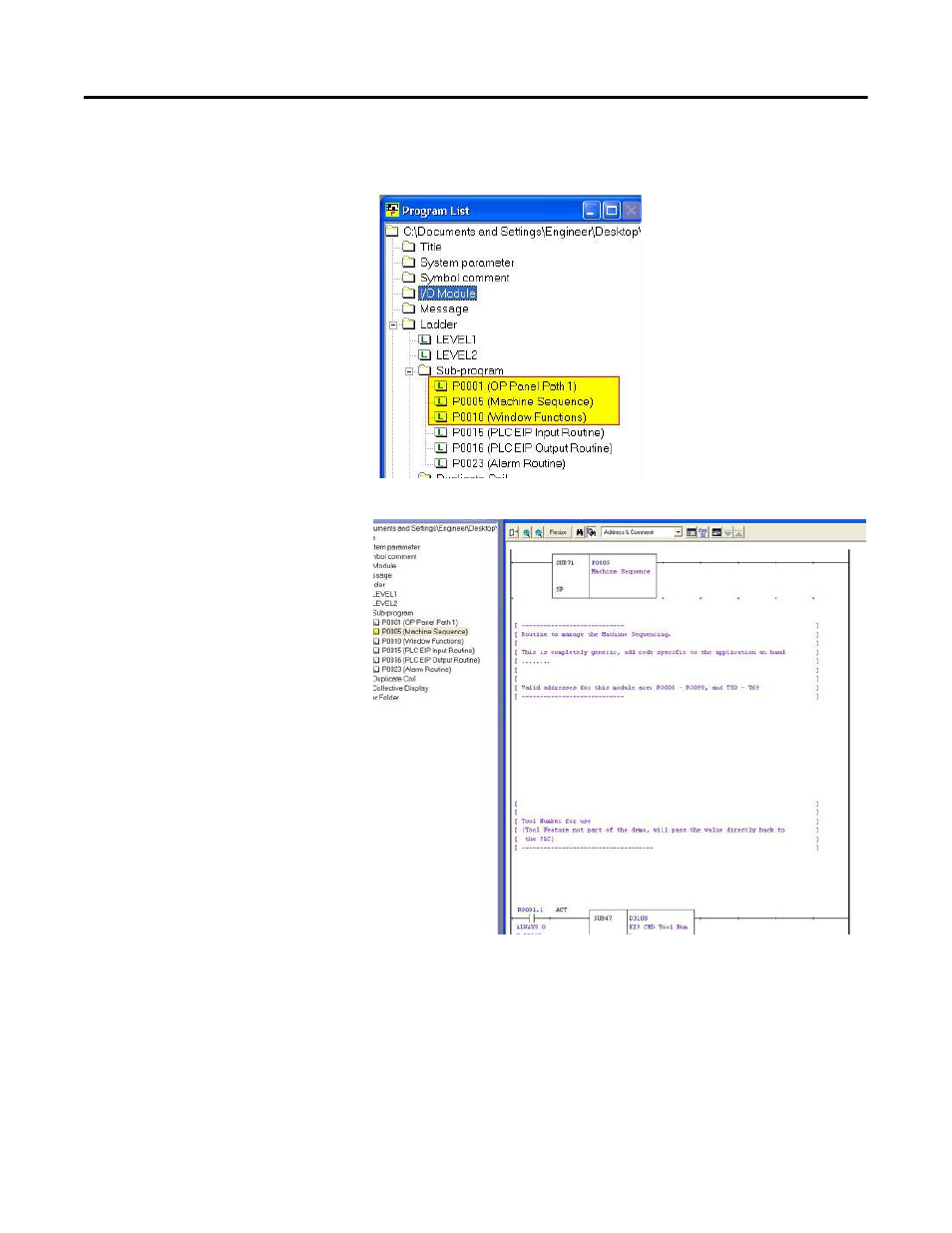

Review the logic modules in the
folder tree.
3.
Double-click the files to open
and edit the logic for your
specific application
