Appendix
B
Logic Module Customization
The toolkit logic modules are designed with a basic set of machine states, faults, alarms, and reset logic common
to most applications. Knowing that specific application requirements dictate exceptions and additions, the ability
to customize is also included in the logic module design.
This appendix includes common modification recommendations for the customization of machine states, faults,
alarms, and reset logic.
Machine State Customization
You may wish to modify state names, add or remove states, or even change the relationship between states to fit

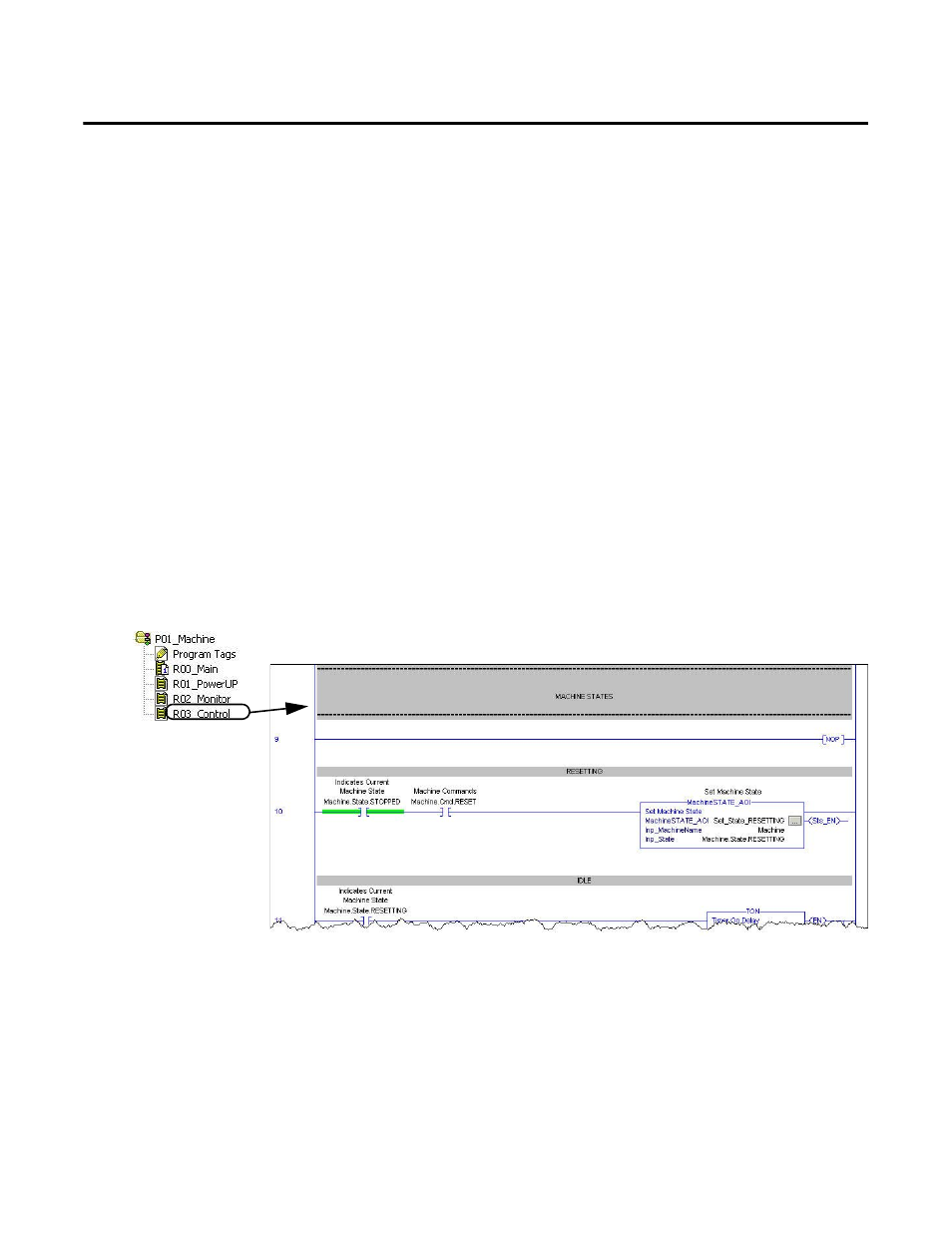

your application. The state machine logic resides in the R02_Monitor and R03_Control routines in the machine
module.
