FactoryTalk View ME Configuration
Chapter 5
Add Parameter Files
1. Determine required parameter files for your
application.
Refer to the faceplate displays table on
page 162 for the parameter file required for
each faceplate.

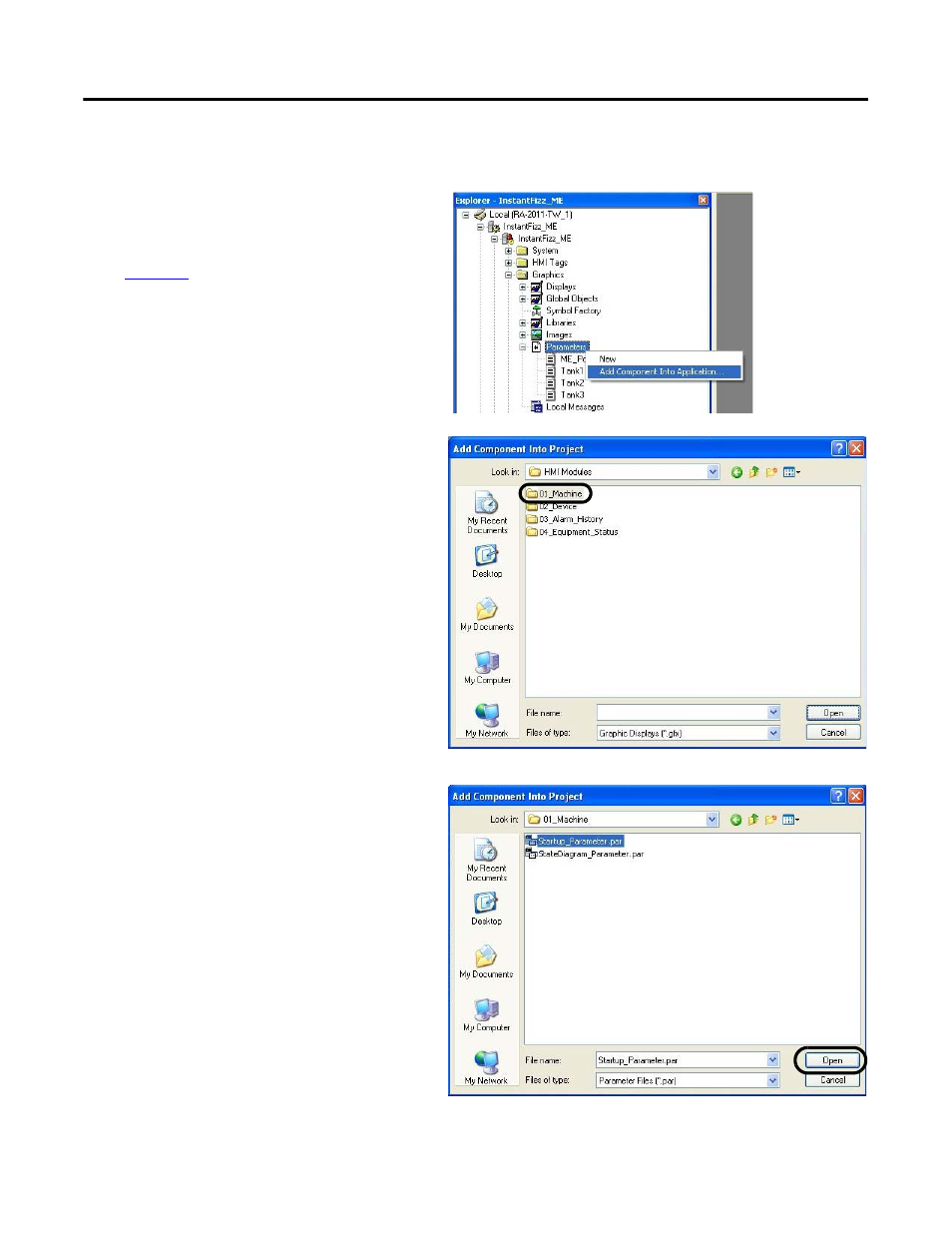

2. Right-click Parameters within the Graphics
folder and choose Add Component Into
Application.
3. Navigate to the HMI Modules folder within
the toolkit’s files folder.
The file path is C:\Program Files\
RA_Simplification\CMAT\A-Files\
5-HMI\ME\HMI Modules\01_Machine.
4. Select the folder representing the type of the
first parameter you want to add.
For this example, the 01_Machine folder
was selected for the Startup_Parameter
supporting the
PVP1000_Startup_Faceplate.
5. Select the parameter file you desire to add.
For this example, Startup_Parameter.par was
selected to support the
PVP1000_Startup_Faceplate added earlier.
6. Click Open.
