FactoryTalk View ME Configuration

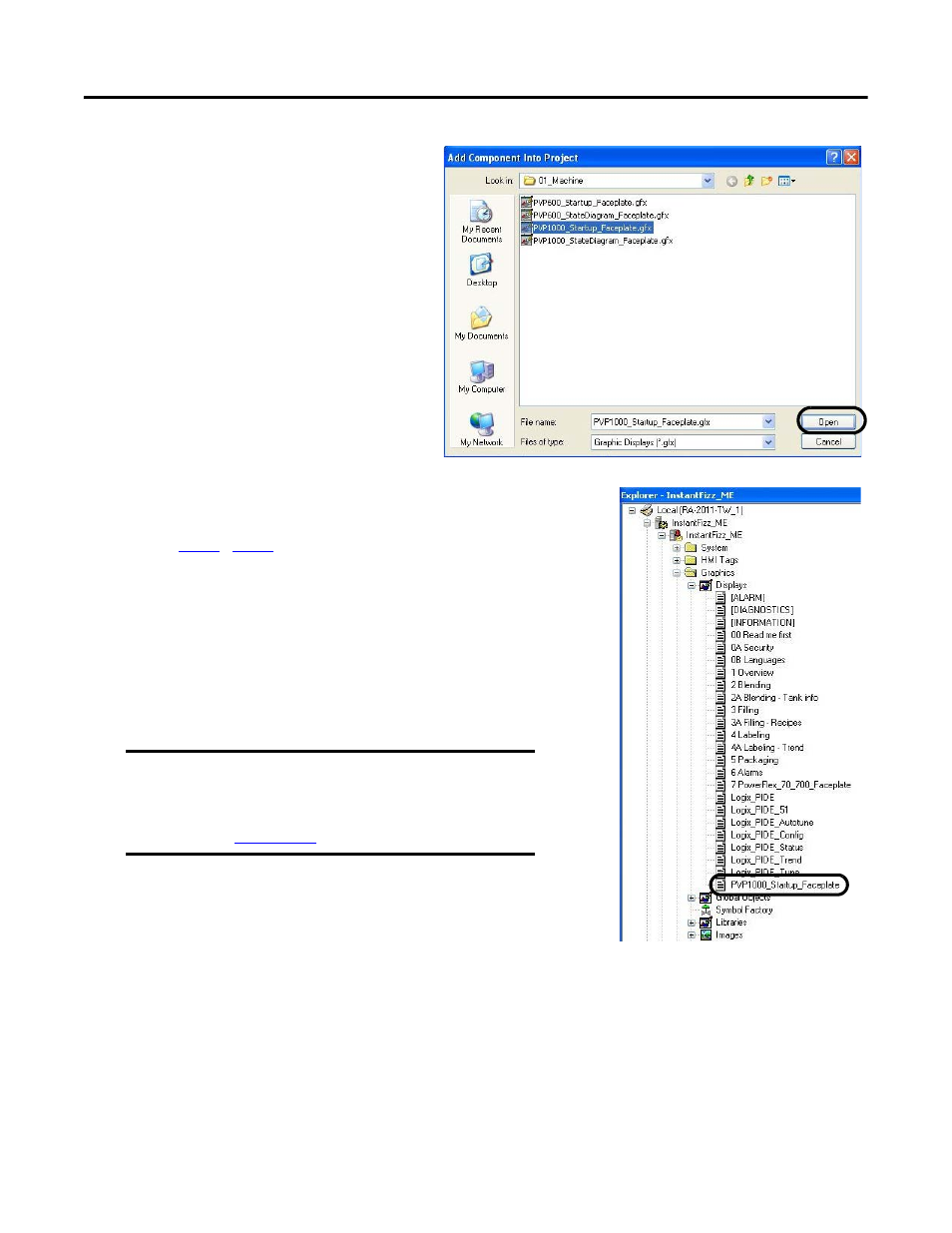

6. Select the faceplate display file you want to
add.
For this example, the
PVP1000_Startup_Faceplate.gfx was
selected
7. Click Open.
The selected display is added to the
Displays folder.
8. Repeat step 3 … step 7 for each faceplate required for your
application.
TIP Only one faceplate is required for multiple
device/modules of the same type. For example, if
your application has two FANUC CNCs requiring a
faceplate, only one Fanuc_CNC_Faceplate.gfx
display is required.
IMPORTANT The CNC Machining Accelerator Toolkit does not
include the specific CIP_Motion, SERCOS, Kinetix, or
PowerFlex faceplate displays. Refer to the Drives and
Motion Accelerator Toolkit DVD, publication
IASIMP-SP017 , for access to these faceplates.
