Cnc work cell logic example overview – Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 127
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
127
GuardLogix Configuration
Chapter 4
CNC Work Cell Logic Example Overview
To assist you in understanding how to best use the logic examples, the CNC Work Cell application is used as an
example.
We recommend you study the CNC Work Cell gantry and machining applications to see the interaction of the
machine, application, and device modules within the application logic. The CNC Work Cell examples are
created by using basic CNC application examples included in the toolkit. After you’ve studied these examples,
create your own applications by using the basic CNC examples.
The CNC Work Cell application example is an excellent canvas to experiment with the other application
examples. The example includes two CNCs, so it is possible for you to import and study all of the application
examples.

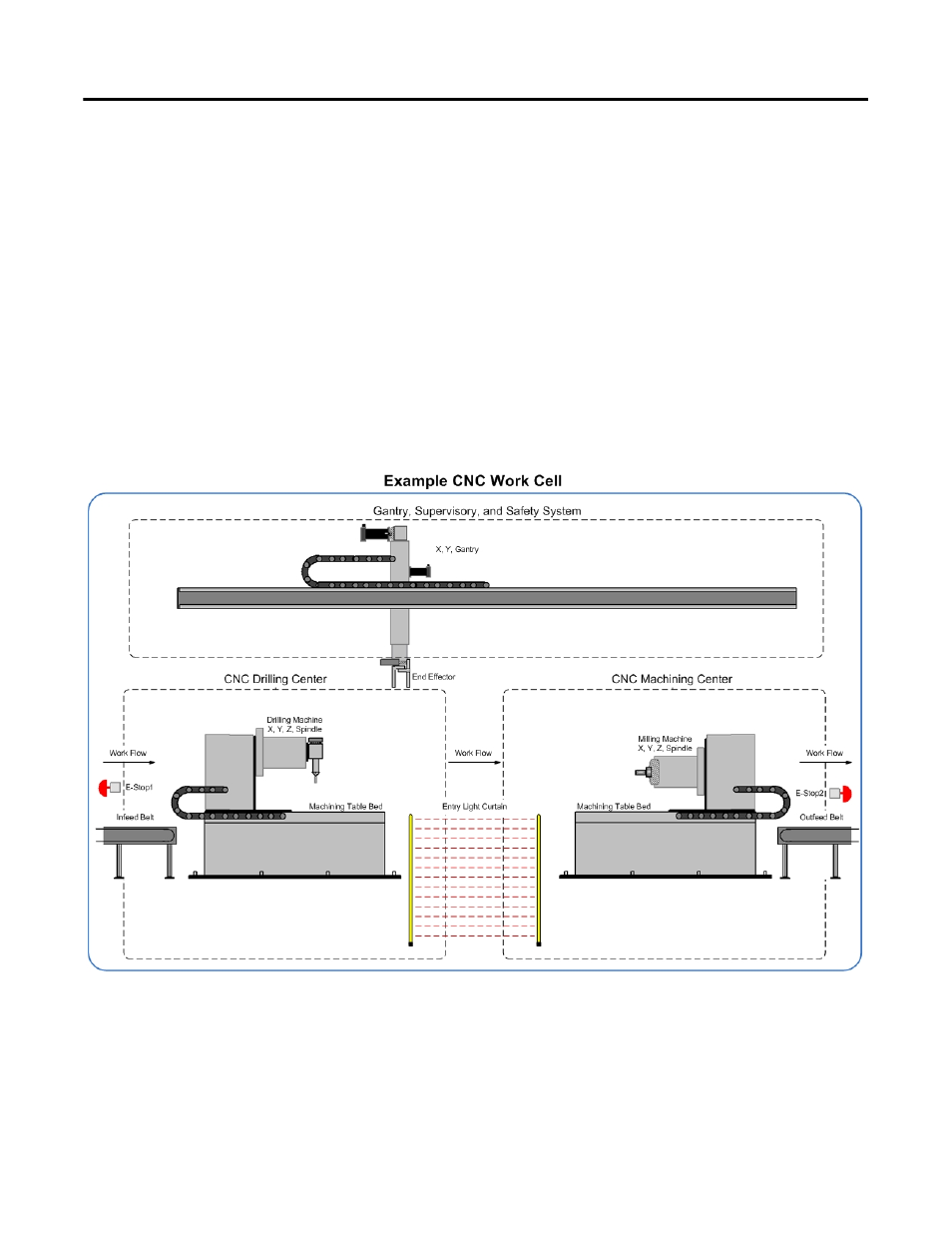

Figure 15 - CNC Work Cell Application Example
