Chapter 5

FactoryTalk View ME Configuration

13.

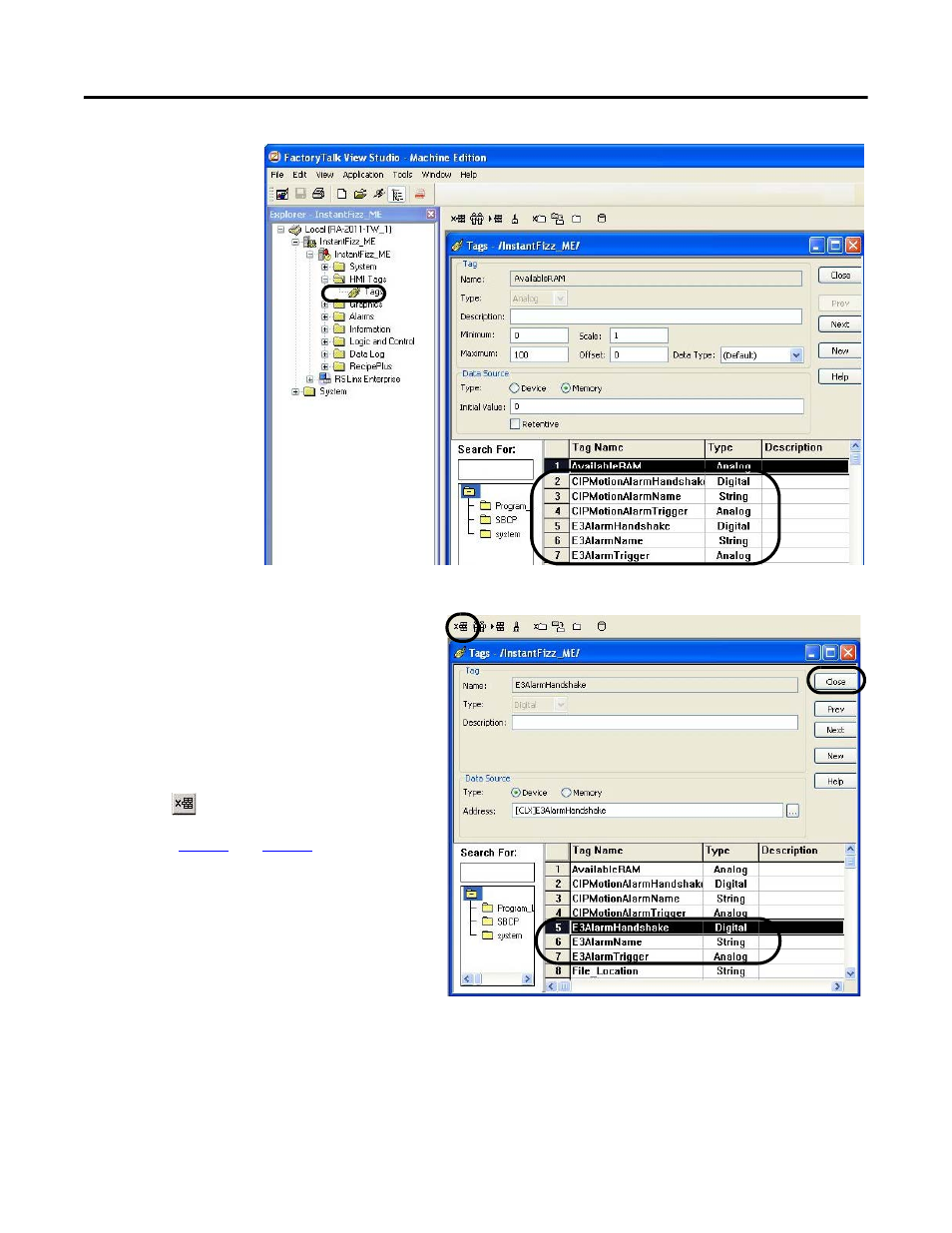

Expand the HMI
tags folder in the
project Explorer™
tool and
double-click
Tags.

The HMI Tags
editor appears in
the workspace.

14.

Verify a number
of alarm tags have
been added to the
HMI tags listing.

15.

Select each of the

xxxAlarmHandshake,

xxxAlarmName, and xxxAlarmTrigger tags
associated with each of the alarm triggers
that were deleted in the previous section.

For example, the circled tags are three tags
you would delete if the E3AlarmTrigger had
been deleted previously.

16.

Click

to delete the tags.

17.

Repeat

step 15

and

step 16

for all unused

alarm tags associated with unused alarm
triggers.

18.

Click Close to complete tag editing.
