Configuration view – Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 225
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
225
System Application Guide
Chapter 7

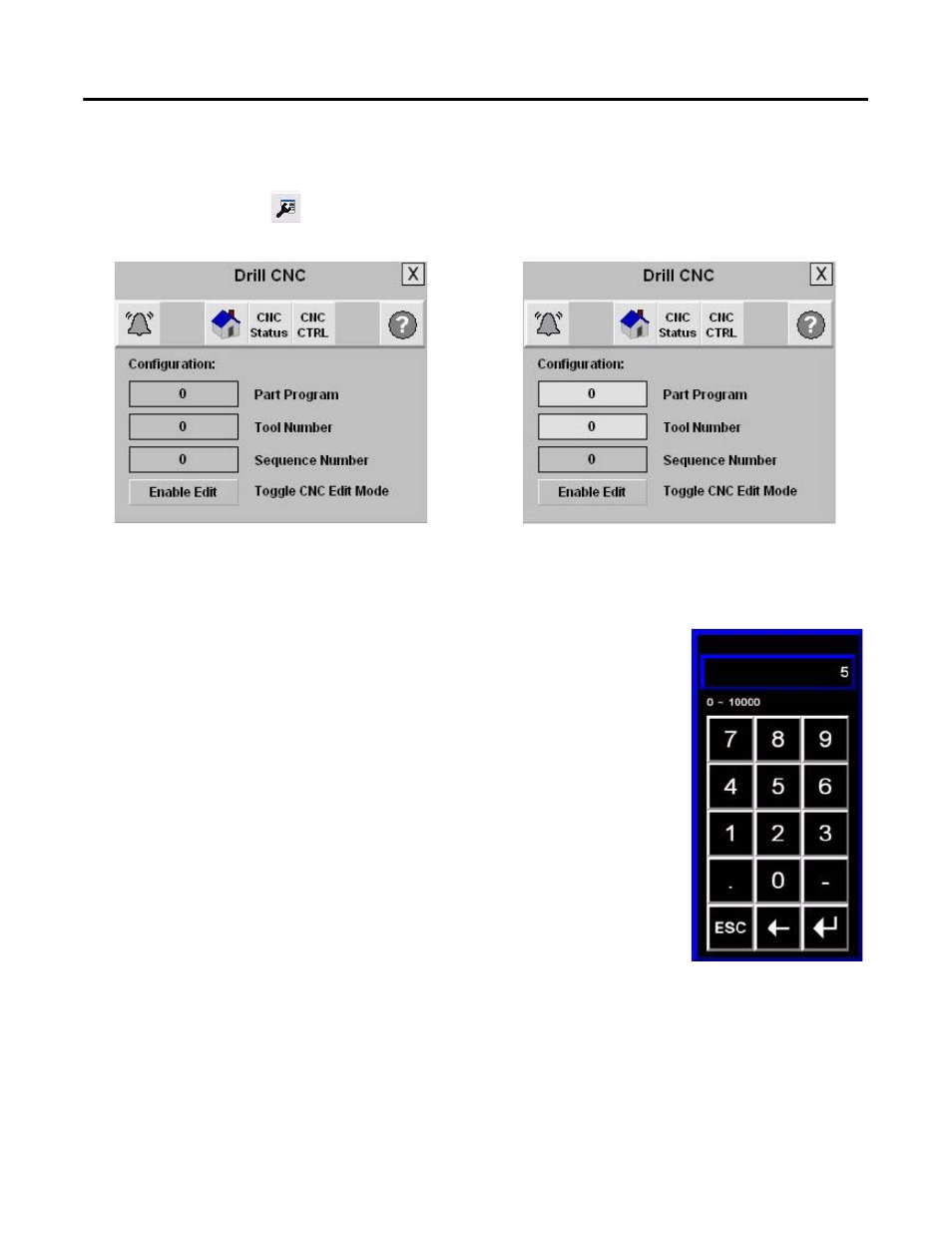

Configuration View
The configuration button
takes you to a display to edit the various CNC settings if Operator mode is
enabled.
You can enter Part Program, Tool Number, and Toggle CNC Edit mode. Some
of the fields here are also used on the Equipment Status faceplate.
Pressing any of the name or device descriptions launches an numeric keypad for
value entry. Press Enter on the keypad to complete the editing.
TIP
In Program mode, the fields are not editable. However, in Operator mode, the values can be changed.
Program Mode
Operator Mode
