Import and Configure FANUC CNC Device Logic Modules

In this example, you add preconfigured FANUC CNC device logic to your RSLogix5000 project and configure
it for each of your FANUC CNC systems within your machine.

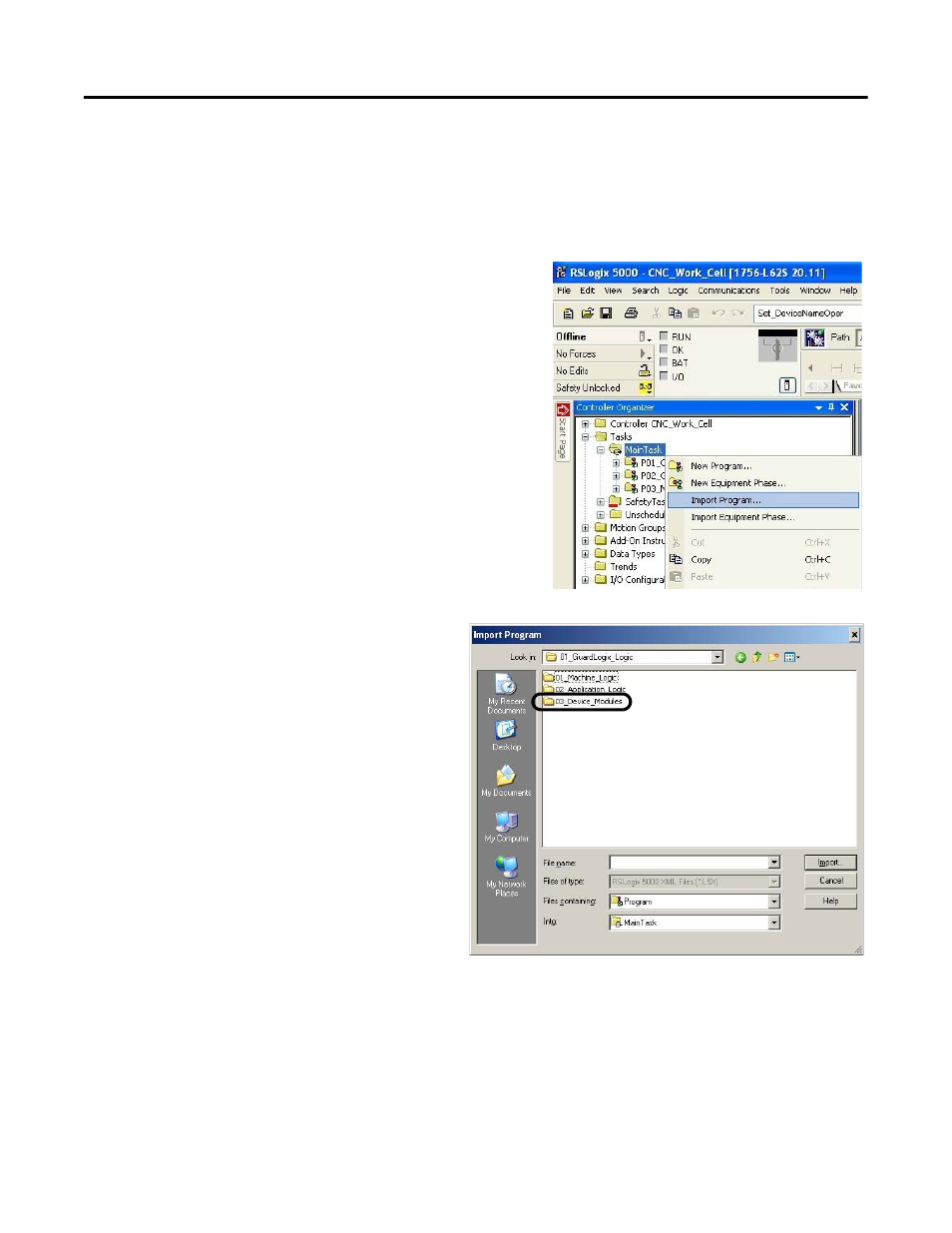

1.

Expand the Tasks folder in your Controller Organizer and
right-click the Main Task folder.

2.

Choose Import Program.

3.

Navigate to the 01_GuardLogix_Logic folder
within the toolkit’s files folder and open the
03_Device Modules folder.

The file path is C:\Program
Files\RA_Simplification\CMAT\A-Files\
4-Controller Logic\01_GuardLogix_Logic.
