Add Other Devices to the Equipment Status Faceplate

Appendix C

5.

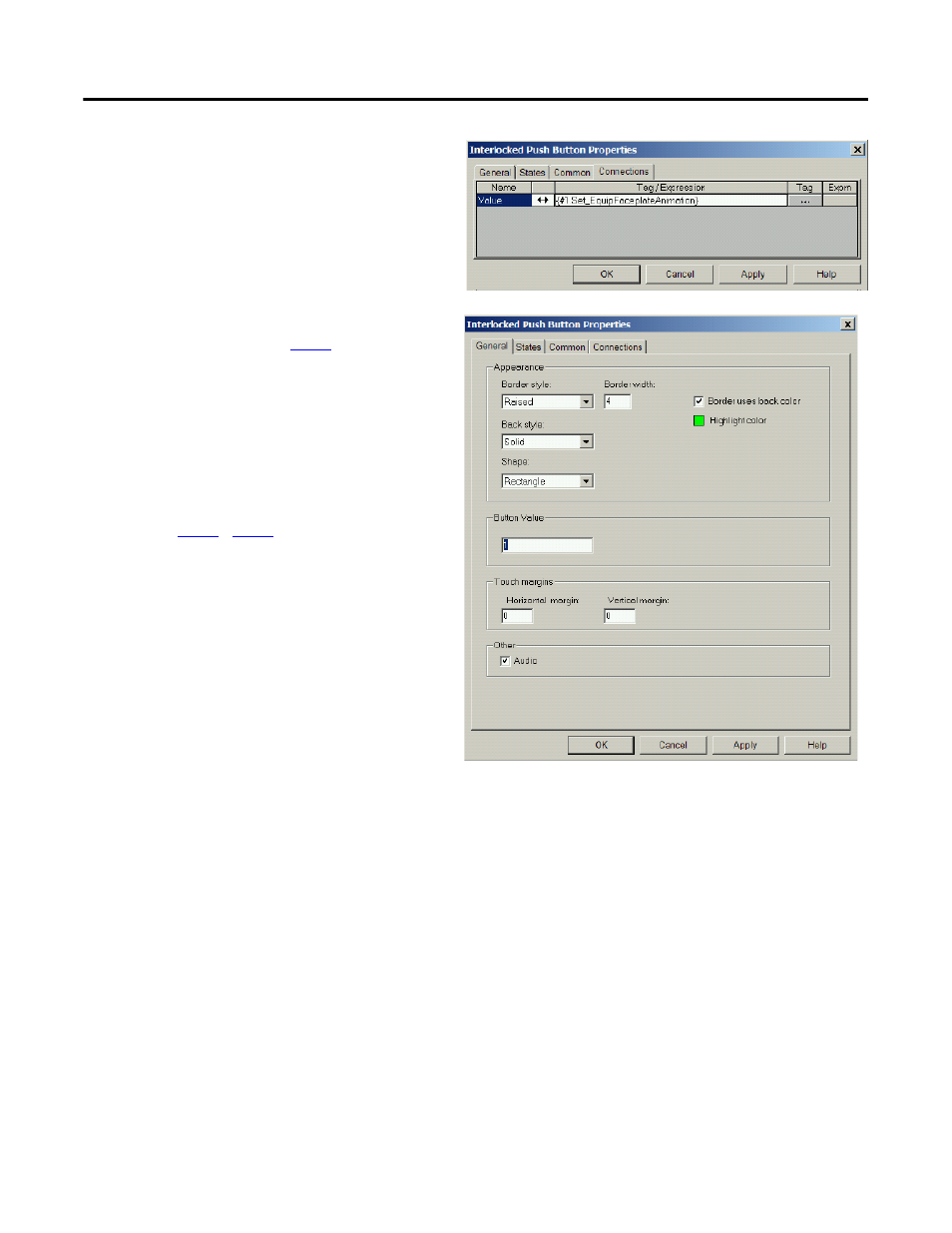

Set the connection or tag tied to this button to
{#1.Set_EquipFaceplateAnimation}.

6.

Set the button value to the number assigned in
the group animation in

step 3

.

7.

Create another interlocked pushbutton on the
toolbar (home button in this example) that will
activate visibility of the existing
Equipment_Status_Faceplate Group.

The pre-configured visibility value for this
group is 0.

8.

Repeat

step 1

step 7

for additional faceplate

object groups you wish to visually activate by
faceplate toolbar buttons

.
