Rockwell Automation IASIMP Computer Numerical Control (CNC) Machining Accelerator Toolkit Quick Start User Manual
Page 266
266
Rockwell Automation Publication IASIMP-QS034A-EN-P - October 2012
Appendix D
Logix Communication and Controller Configuration
6.

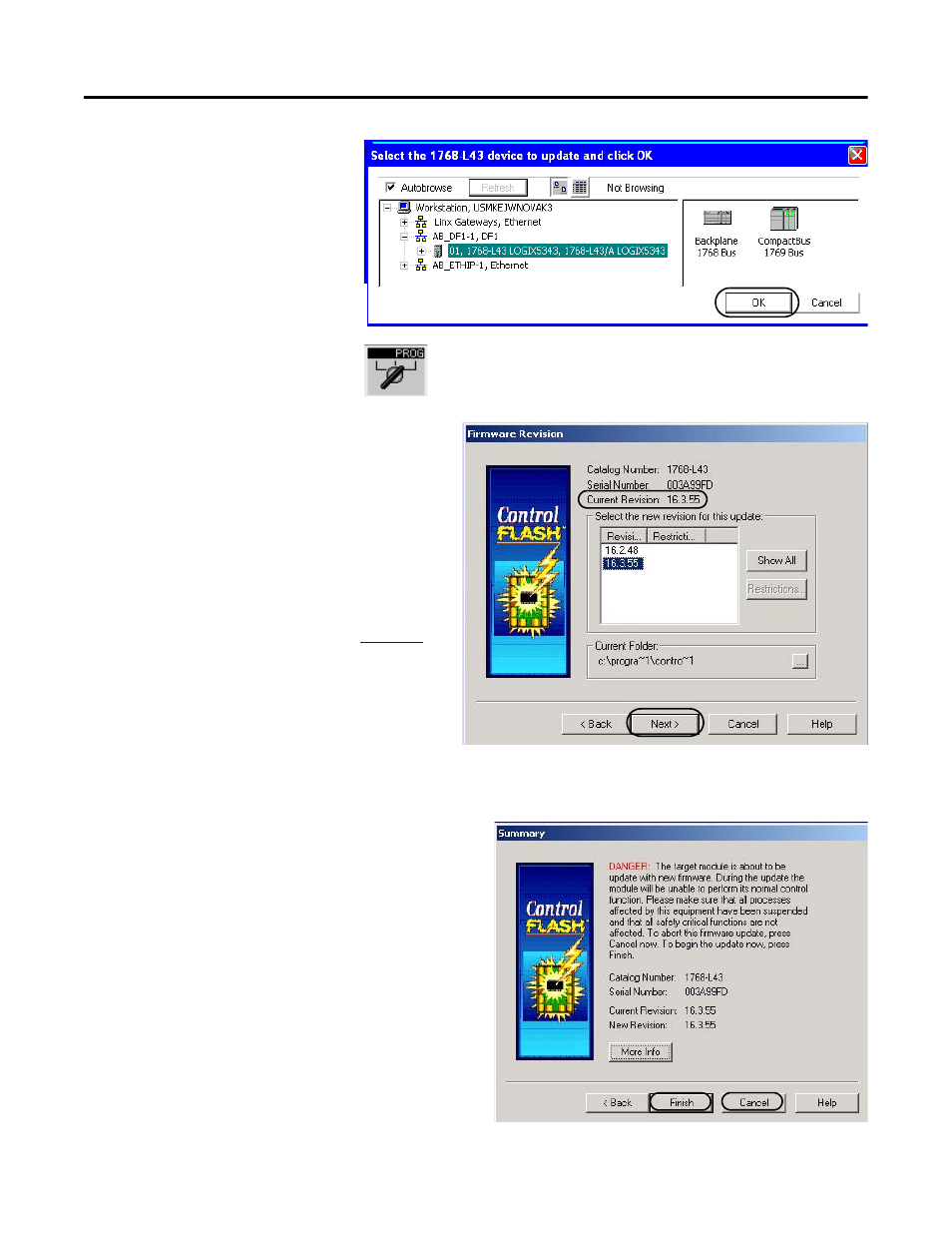

Under AB_DF1-1, select the
1768-L43 controller.
7.
Click OK.
8.
Move the controller keyswitch
to Program.
9.
Compare the current drive firmware
revision to the latest revision listed.
If the Current Revision matches the newest
Revision listed, then your controller
already has the latest firmware and a
firmware update is not needed.
a. Click Cancel to abort the firmware
upgrade.
b. Go to Assign IP Addresses on
.
If the Current Revision does not match the
latest revision listed, click Next.
10.
Click Finish, then click Yes to start the
firmware update.
When the controller is updated, the status
box displays Update Complete.
11.
Click Ok.
12.
Click Cancel to close the ControlFLASH
software.
13.
Click Yes.
TIP
If you are unsure which revision
to use, select the latest.
