FANUC CNC Configuration
Chapter 3
USB External Device
Define the USB port as the punch/reader port. This lets you receive and save configuration files to an external
portable USB device.

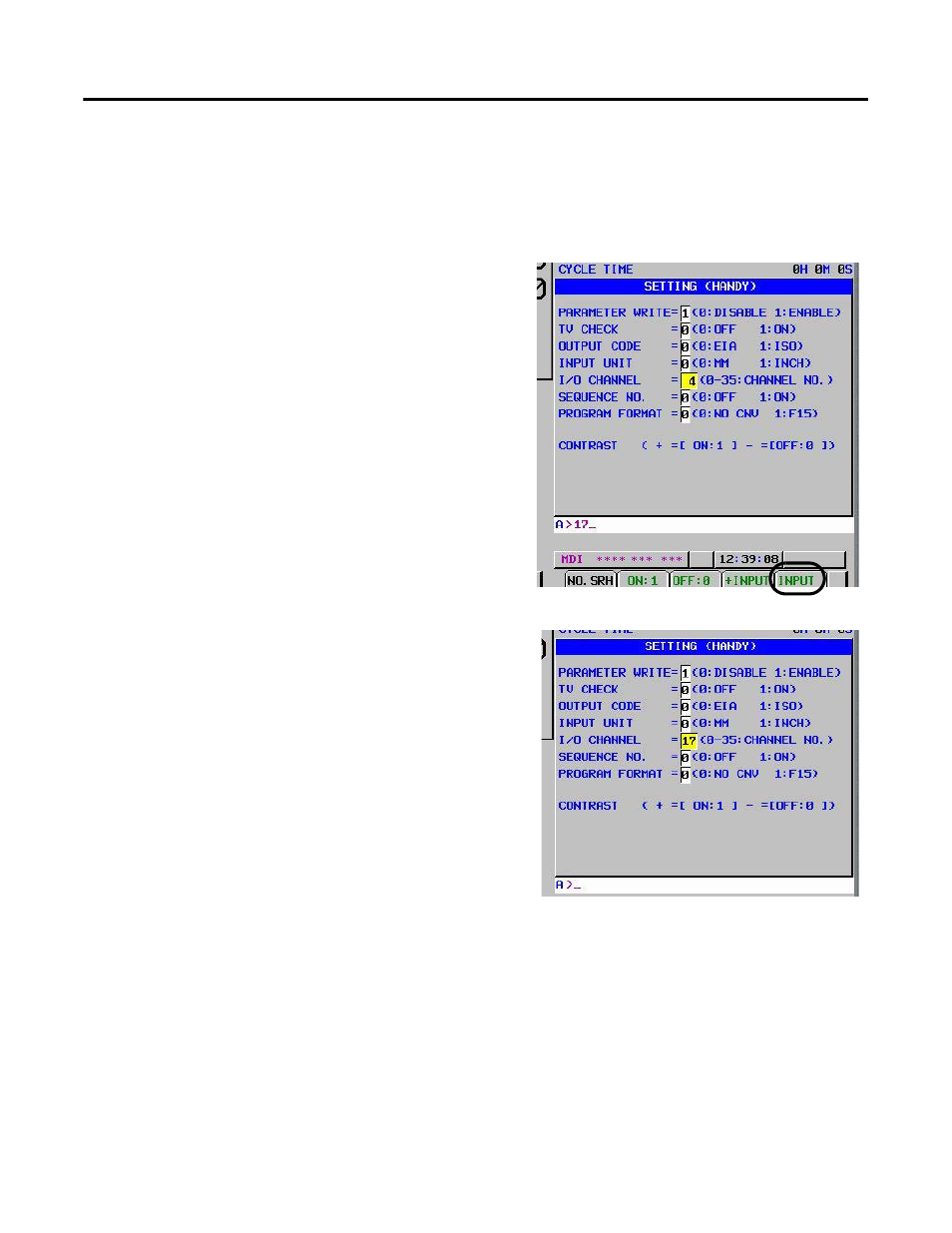

1.
Use the arrow keys as previously described to move to
the I/O CHANNEL setting and enter the value 17. You
will see the value displayed on the entry line beneath the
settings.
2.
Press INPUT as previously described, to change the
parameter. You will now see the value 17 displayed in the
parameter.
The USB port has now been selected as the I/O channel
for the punch/reader function.
