GuardLogix Configuration
Chapter 4

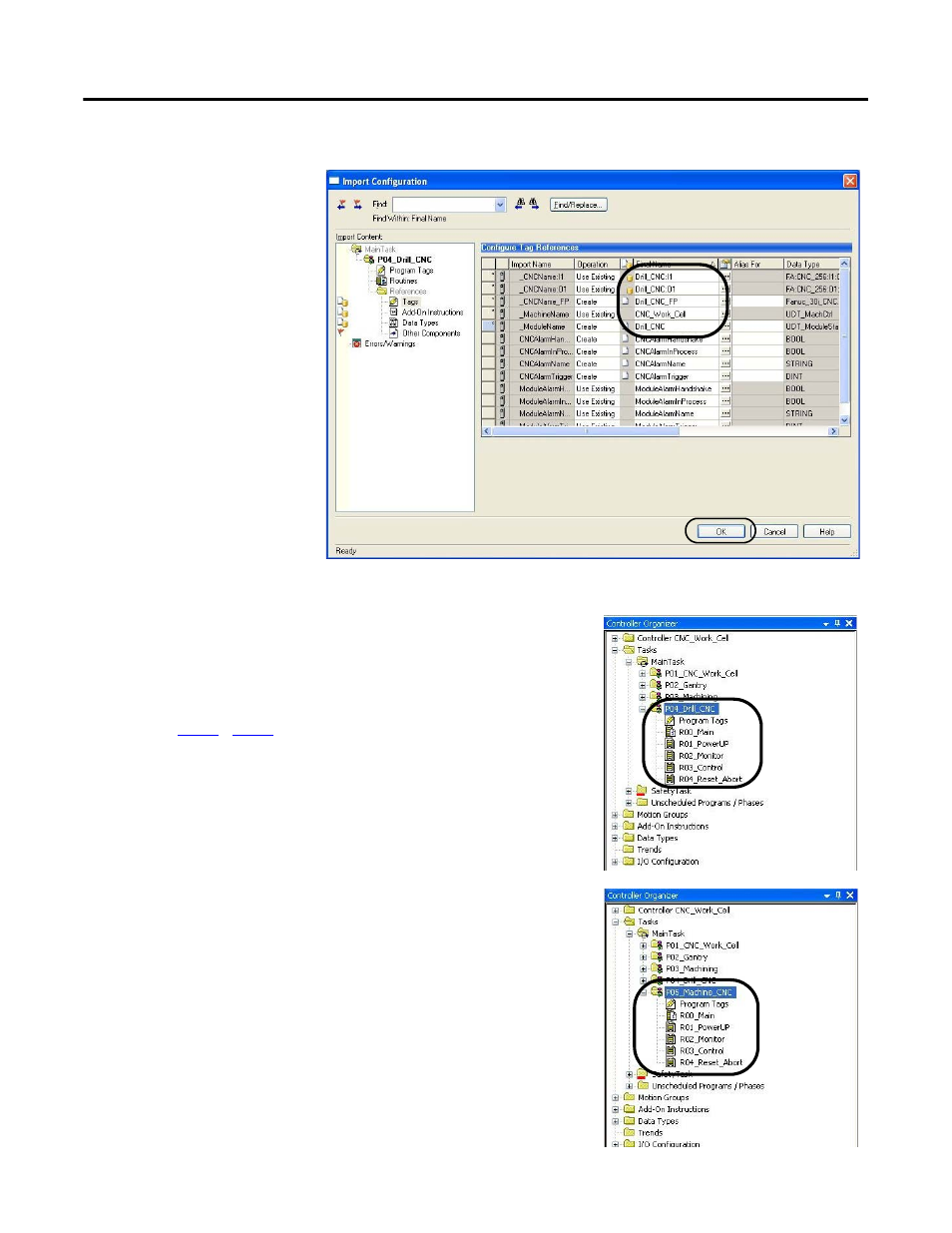

For the CNC Work Cell application example, the following tag names were entered.
8.
Click OK.
The new device module program appears in the Controller
Organizer within the Main Task folder.
For the CNC Work Cell application example the new program
named P04_Drill_CNC appears in Controller Organizer.
9.
Repeat
step 1
…
step 8
for each FANUC CNC system in your
machine.
For the CNC Work Cell application example, another program
was added for the Machining CNC, named
P05_Machine_CNC; it appears in Controller Organizer.
