APS-1102A User Manual
APS-1102A 4-10
4.1.6 Setting superimposed AC waveform
Selects among 16 types of sine waves (SIN), square waves (SQU), and arbitrary waveforms (ARB).
Arbitrary waveforms are generated using data transfers via the USB interface.
S ee “4.6 Output of Arbitrary Waveforms”, for details of arbitrary waveforms.
To select a waveform, select in the SET menu.


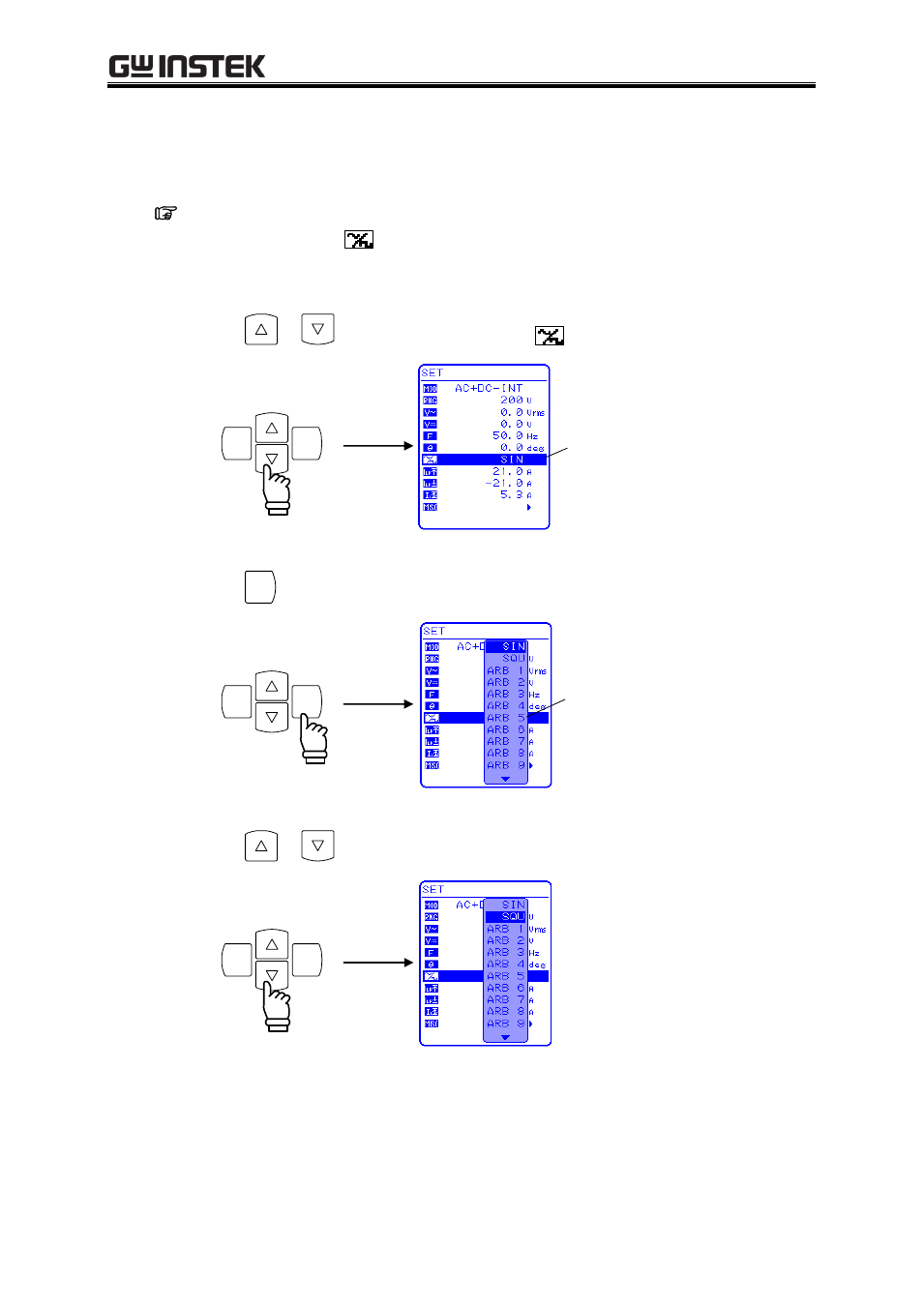

Operation steps
1. Press the or key to move the cursor to the icon.
ENTER CANCEL Cursor
2. Press the
EN TER
key to display the selection box.
ENTER CANCEL
Selection box
3. Press the or key to move the cursor to the waveform to be output.
ENTER CANCEL
