APS-1102A User Manual
APS-1102A 3-8
3.3 I/O Terminals
3.3.1 Output terminals (front and rear)

Connection to output outlet (front)
The front panel is equipped with universal type output outlets that accommodate power plug types
from various countries. These outputs are isolated from the power inputs and case (ground connection).
These outlets are used only for AC power. Use the rear output terminal for DC or AC+DC.
Polarity follows the Japanese standard. Use the rear output terminal for polarity-related settings such
as the initial phase.

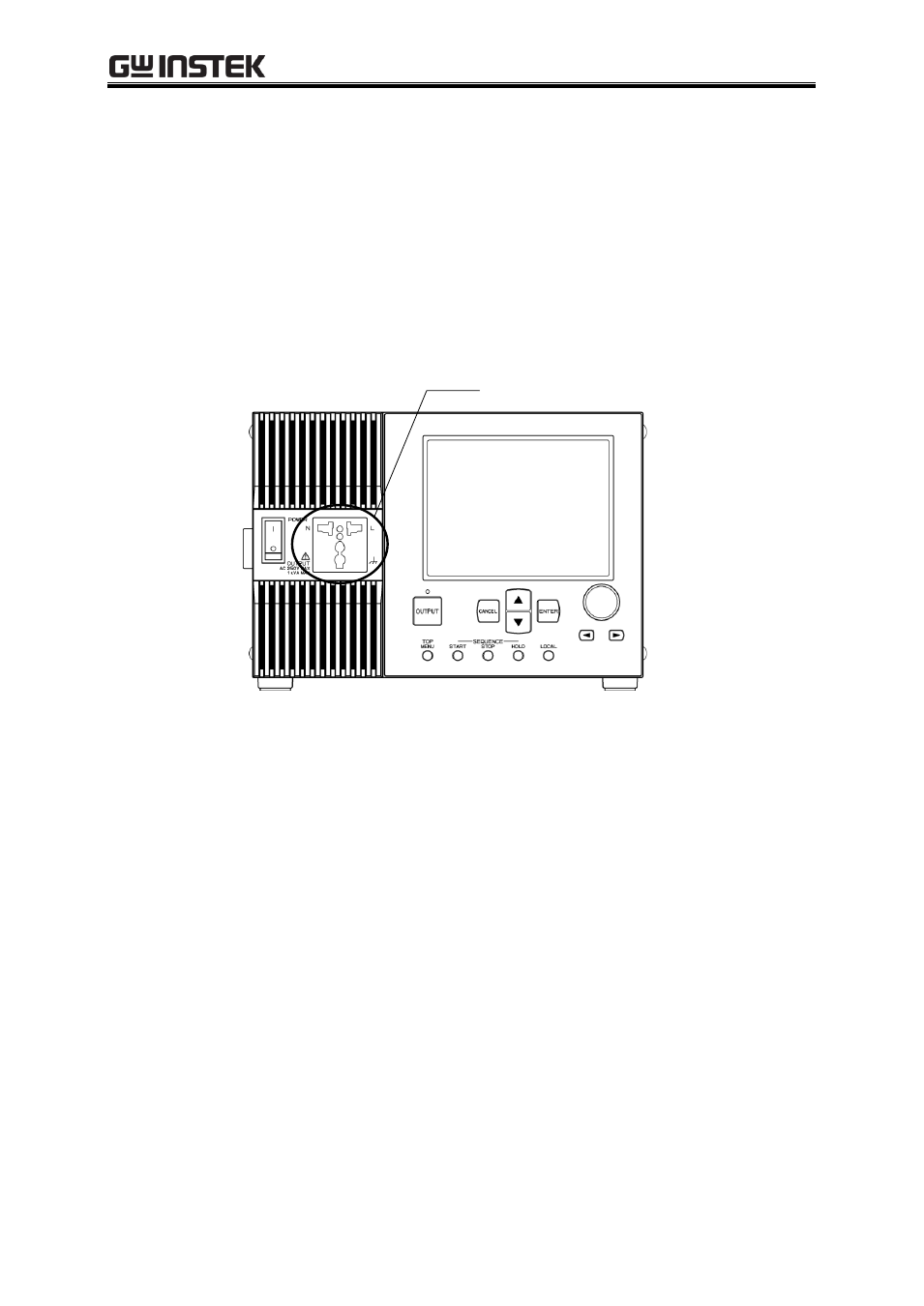

Output outlets (universal type)
Figure 3-4. Output Outlets (Front)
