4 ADVANCED OPERATION EXAMPLE
APS-1102A 4-59
a) Possible voltage settings for output


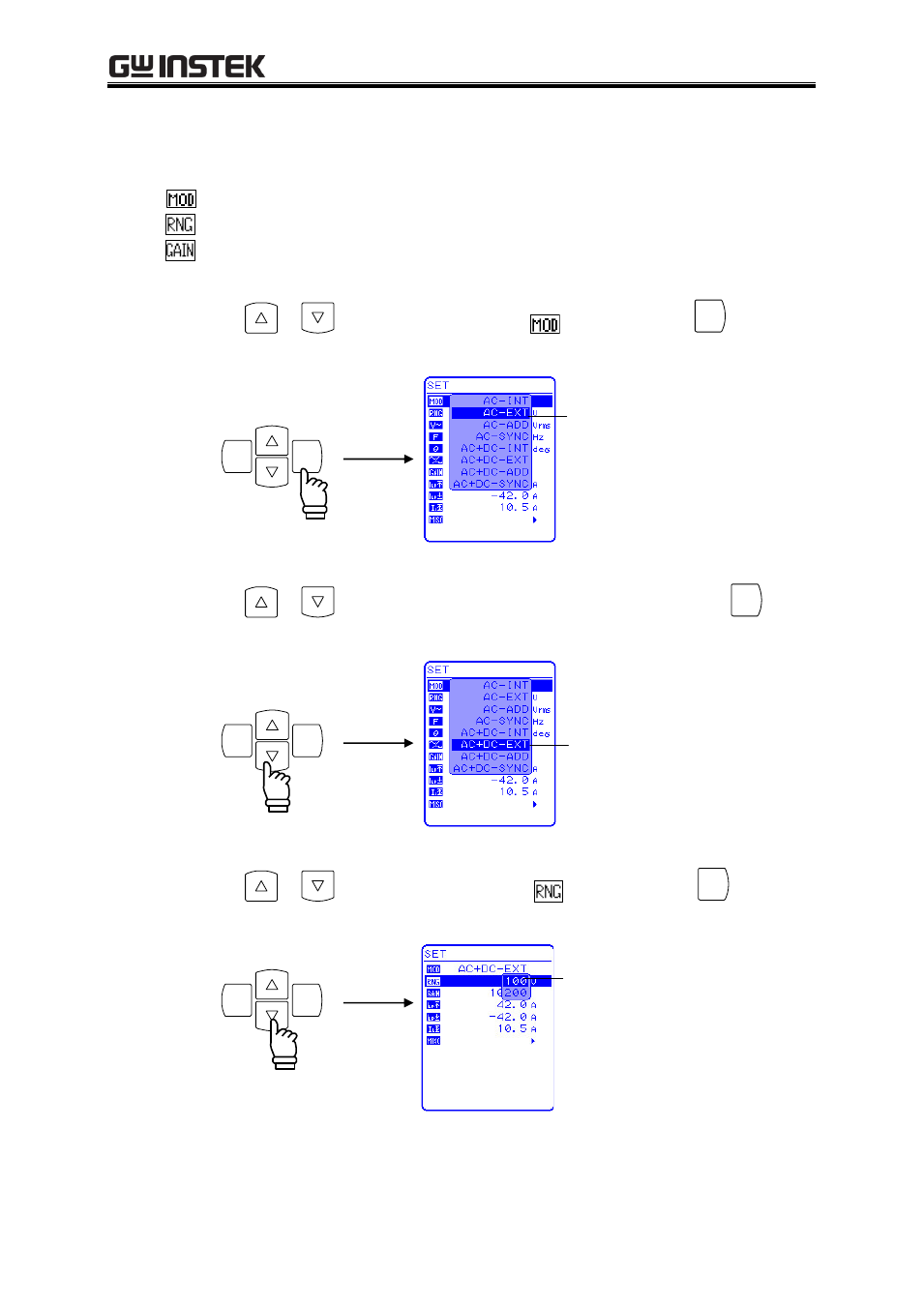

Operation steps
Select the icon in the SET menu corresponding to the desired setting, then set a numerical value.
 “Select output mode”: Select external mode (AC-EXT or AC+DC-EXT).
 “Output voltage range”: Select 100 V or 200 V.

“Set external input gain”: Set a numerical value.
1. Press the or key to move the cursor to he icon, then press the
EN TER
key.

The selection box is displayed.
ENTER CANCEL
2. Press the or key to move the cursor to the mode to be set, then press the
EN TER
key.

This sets the selected output mode.
ENTER CANCEL
3. Press the or key to move the cursor to the icon, then press the
EN TER
key.

The selection box is displayed.
ENTER CANCEL
Selection box
Selection box
Selection box
