4 ADVANCED OPERATION EXAMPLE
APS-1102A 4-3
Once a diode has been connected, a load that does not consume power keeps its voltage
charged. The voltage of the load may be slightly higher due to the overshoot voltage and
should be carefully monitored.

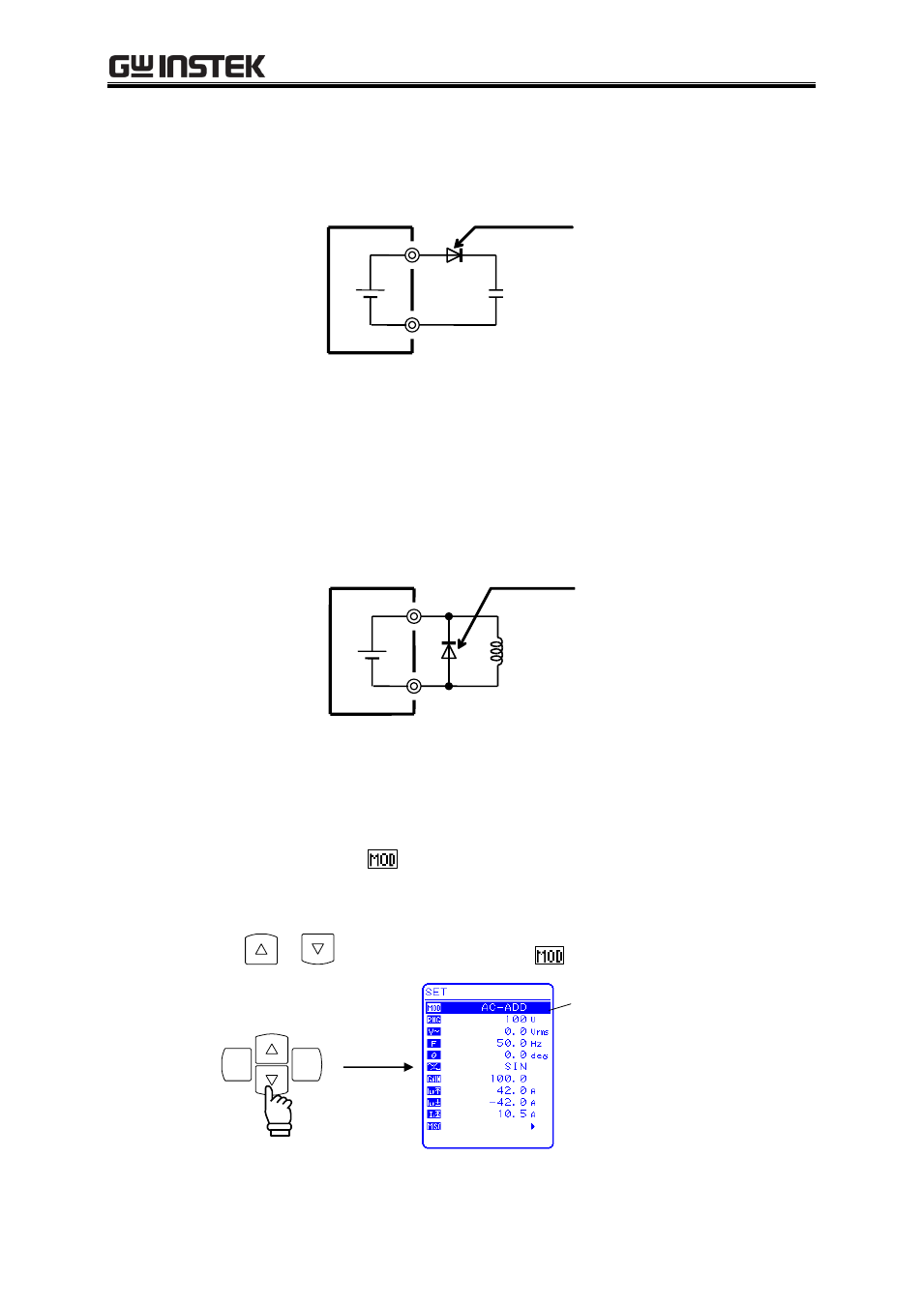

Figure 4-1. Connection of Block Diode
b) Inductive load such as inductor
An inductive load generates a back EMF when current suddenly stops flowing, such as when
the output is turned off. A backflow diode is required to absorb the back EMF.
Connect a backflow diode in parallel with the load, as shown in Figure 4-2.
Figure 4-2. Connection of Backflow Diode
4.1.2 Selecting an output mode (AC+DC-INT mode)
To select an output mode, select in the SET menu.

Operation steps
1. Press the or key to move the cursor to the icon.
ENTER CANCEL
Cursor
APS-1102A Block diode
Capacitor
Lo
Hi
APS-1102A Backflow diode
Inductor
Lo
Hi
