3 PANEL AND BASIC OPERATIONS
APS-1102A 3-33
3.4.9 Using measurement functions
The APS-1102A is equipped with the following measurement functions.

Voltage (RMS, average DC, peak)

Current (RMS, average DC, peak, peak hold)

Power (effective, reactive, apparent)

Synchronization frequency (external synchronization)

Load power factor

Load crest factor

Harmonic current (50 Hz/60 Hz fundamental, up to 40th harmonics)
Measured values are displayed in the measured value window MEASURE screen, which enables the
output status to be monitored.
a) Measured value window

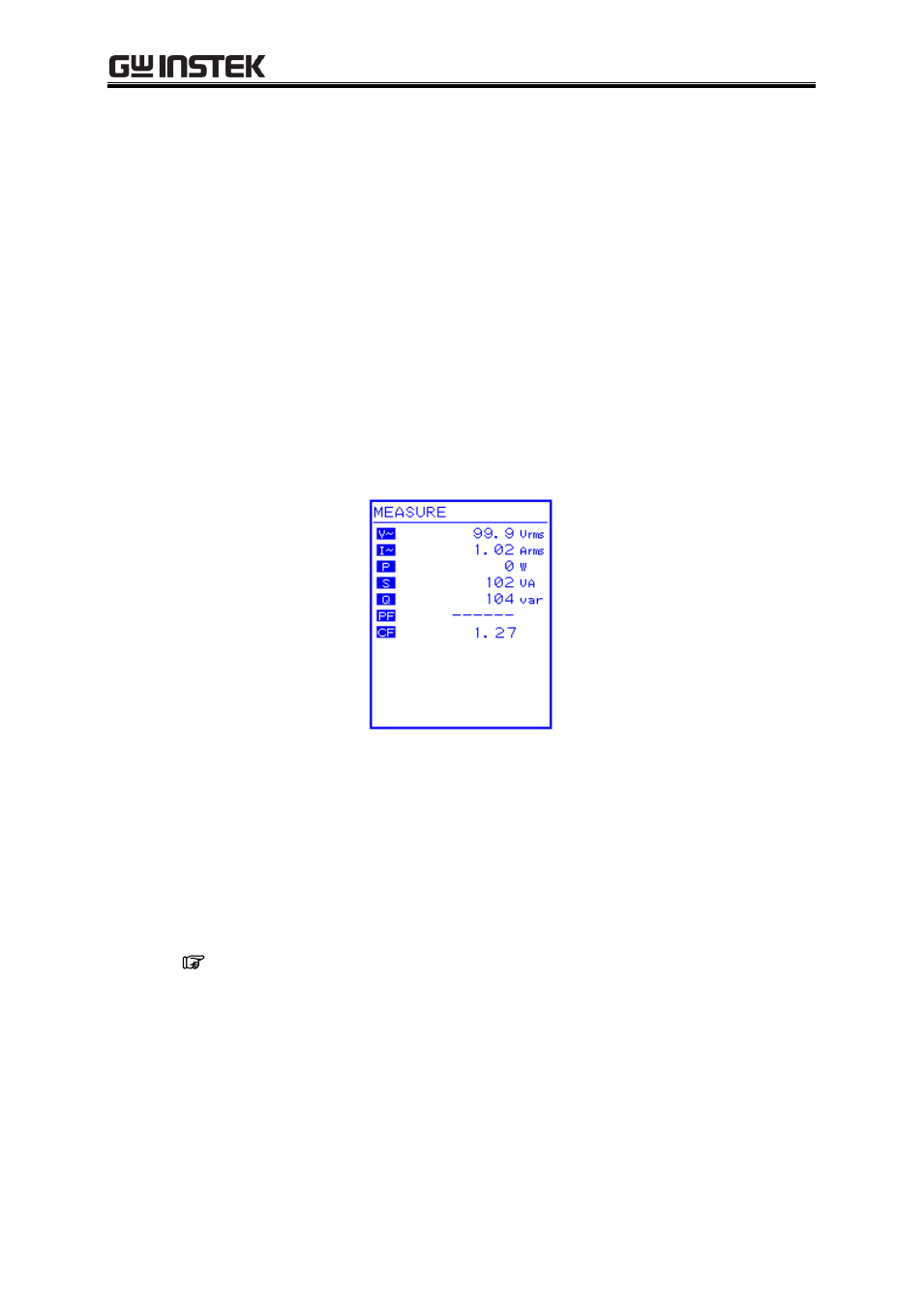

Figure 3-13. Example of Measured Value Window (AC-INT Mode)
When a measurement is out of range, “
 ” is displayed in the numerical value field.
b) Select measurement display
Select among RMS, AVG, PEAK, or harmonic current as the measured current and voltage values to
be displayed.

See “4.3 Measurement of Harmonic Current”, for description of harmonic current
measurements.
