PCI Cache Mode 2-45
The Chained Block Move instruction is illustrated in Figure 2.6 .

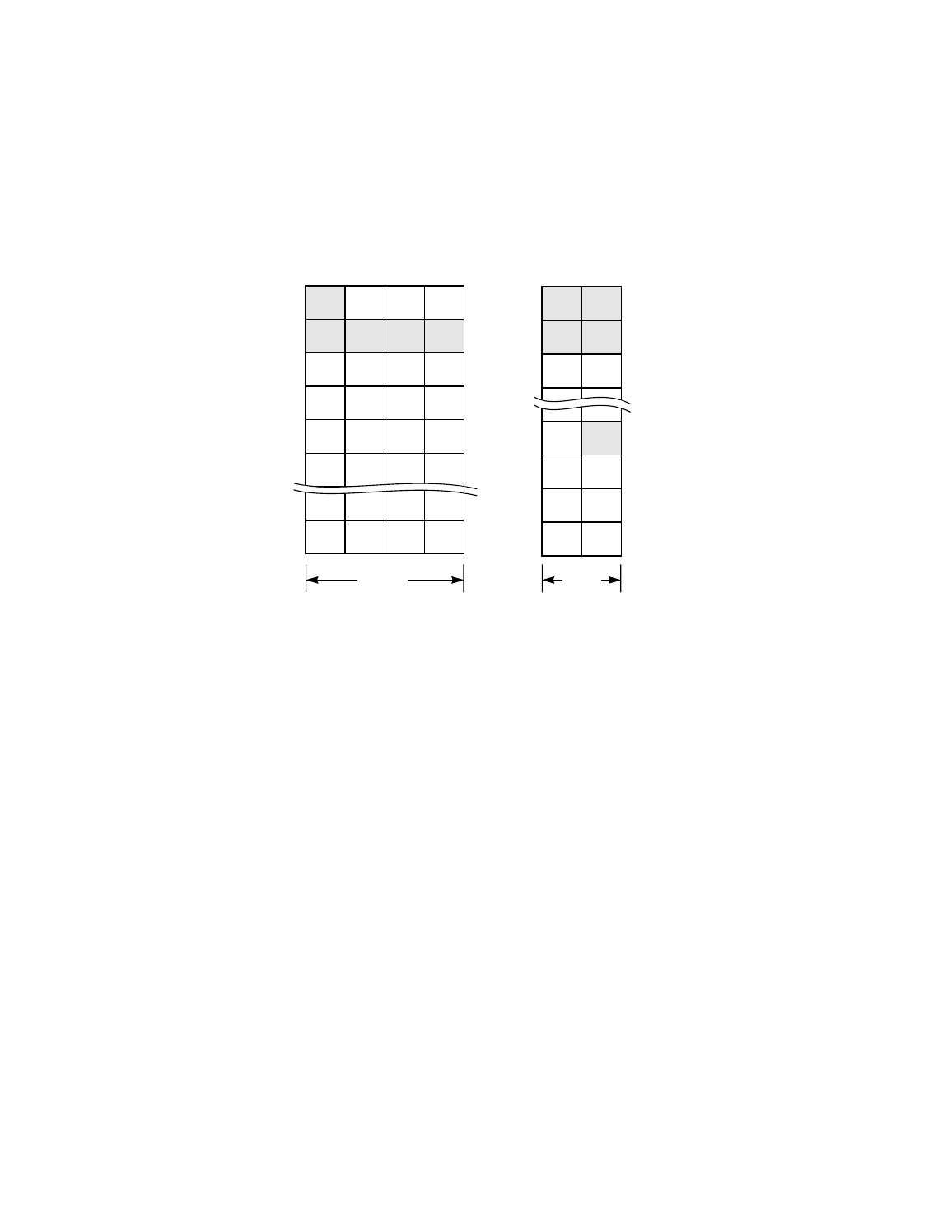

Figure 2.6 Block Move and Chained Block Move Instructions
CHMOV 5, 3 when Data_Out
Moves five bytes from address 0x03 in the host memory to the SCSI bus.
Bytes 0x03, 0x04, 0x05, and 0x06 are moved and byte 0x07 remains in
the low-order byte of the
SCSI Output Data Latch (SODL) register and
is combined with the first byte of the following MOVE instruction.
Move 5, 9 when Data_Out
Moves five bytes from address 0x09 in the host memory to the SCSI bus.
0x03 0x02 0x01 0x00
0x07 0x06 0x05 0x04
0x0B 0x0A 0x09 0x08
0x0F 0x0E 0x0D 0x0C
0x13 0x12 0x11 0x10
0x04 0x03
0x06 0x05
0x09 0x07
0x0B 0x0A
0x0D 0x0C
32 Bits 16 Bits
Host Memory SCSI Bus
00
04
08
0C
10
