6-46 Specifications

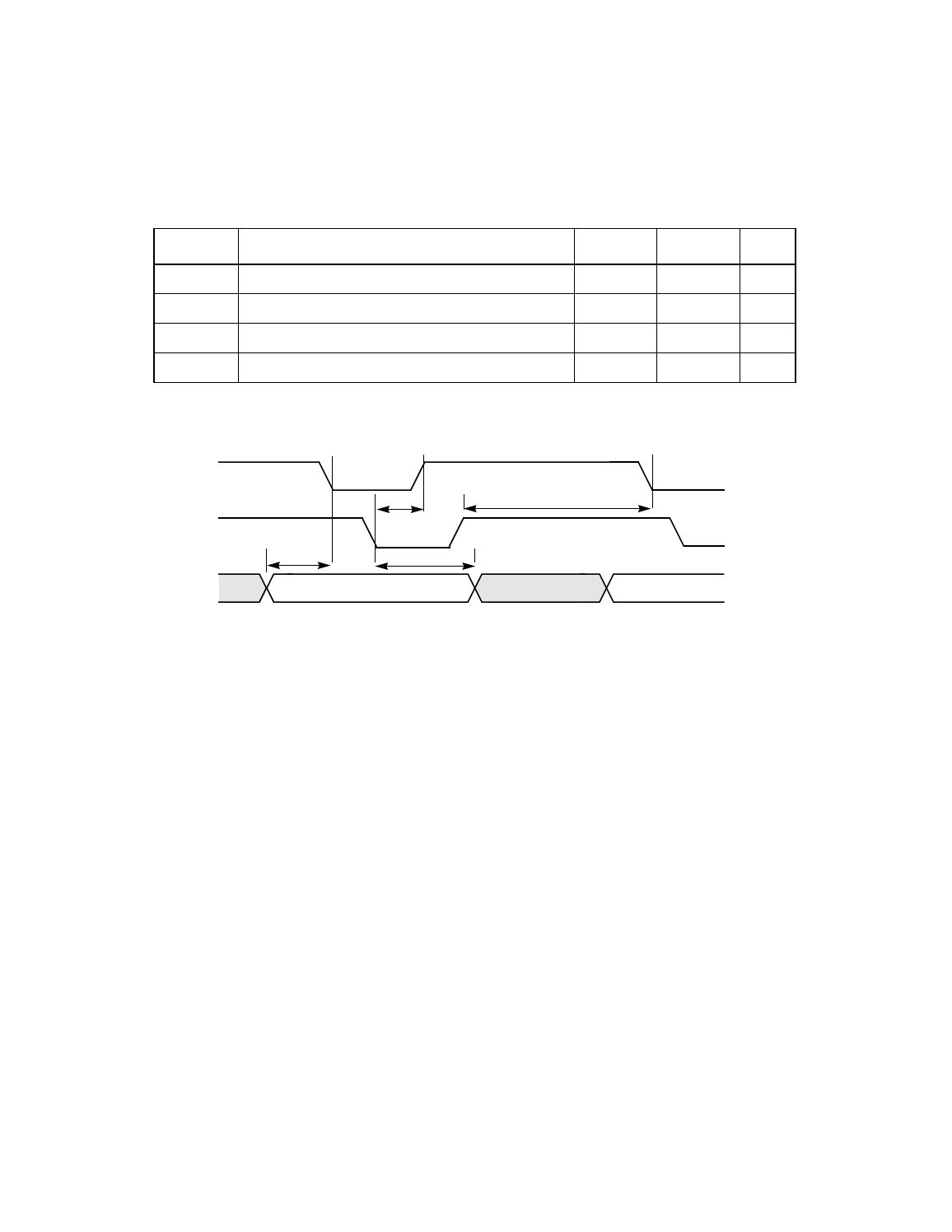

Figure 6.32 Initiator Asynchronous Receive
Table 6.21 Initiator Asynchronous Receive
Symbol Parameter Min Max Unit
t
1
SACK/ asserted from SREQ/ asserted 5 – ns
t
2
SACK/ deasserted from SREQ/ deasserted 5 – ns
t
3
Data setup to SREQ/ asserted 0 – ns
t
4
Data hold from SACK/ asserted 0 – ns
SREQ/
SACK/
SD[15:0]/,
SDP[1:0]/
t
1
t
2
n + 1
Valid n + 1 Valid n
n
t
3
t
4
n
n + 1
