Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-88

Revision Apr. 30th, 2007, 2007PDD23000002

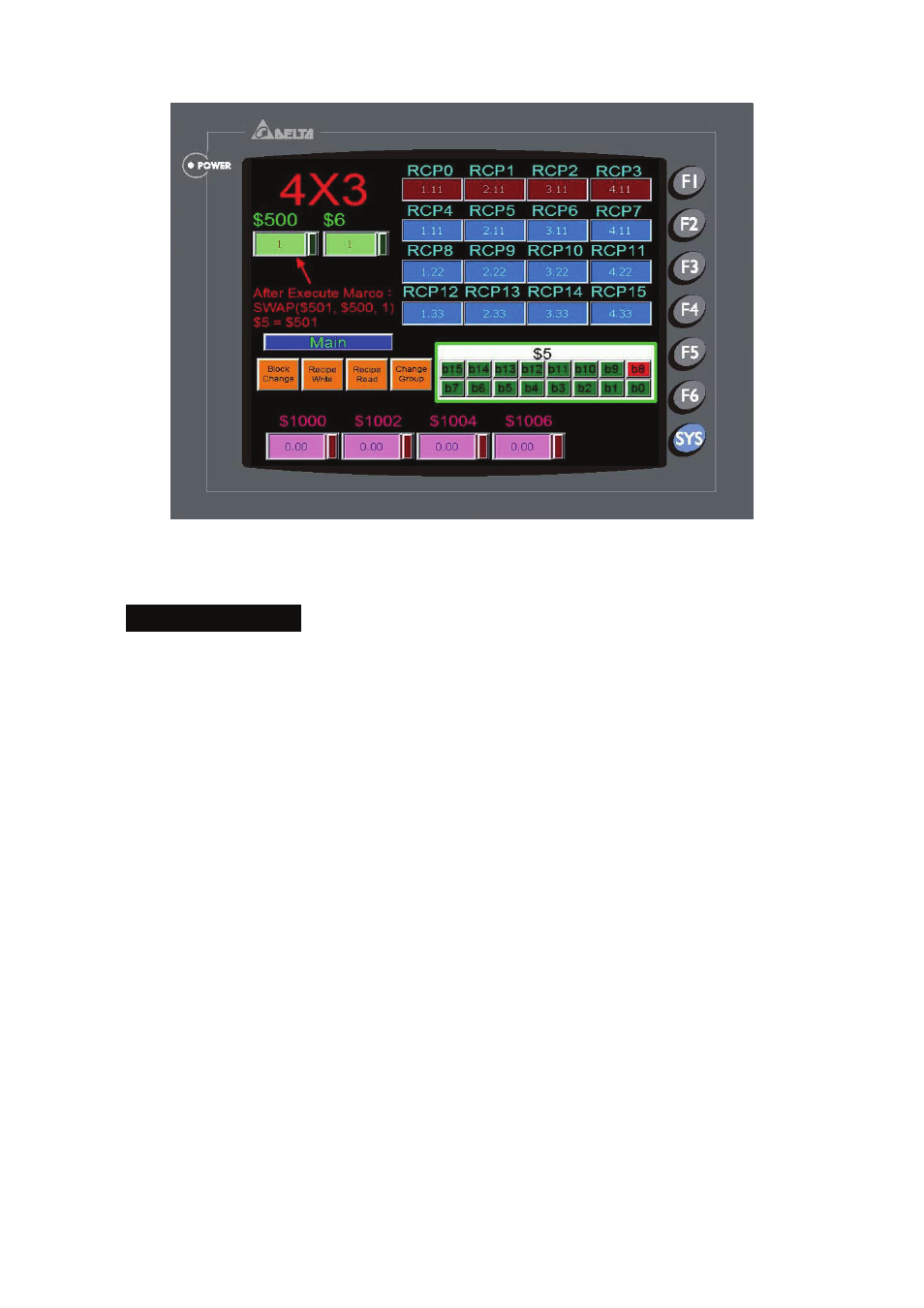

Fig. 2.8.39

Recipe CSV File Editing

There are two recipe file types provided in Delta DOP series HMI, one is 16bits recipe file (*.rcp) that

only can be edited in ScrEdit software environment and the other is 32 bits recipe file (*.csv) that can

be opened and edited in Windows® Excel environment. The following section will describe how to edit

a Excel CSV File (*.csv) in Microsoft Excel. The definition of CSV file of general recipe and 32 bits

recipe file are not the same. Both of them will be introduced in the following.

General Recipe Example

The layout of its csv file is shown as Fig. 2.8.40 on next page. The first row shows the length and group

number. The other data are the actual recipe value.
