Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-51

„

Element Part List

When Element Part List function is enabled, ScrEdit will sort out and classify all the elements on the
current screen. The user can click the tab to switch to the classification that the user wants to view. The
related addresses and corresponding properties will be listed in each classification (Name, Describe,
Write / Read address, Trigger address, Trigger type, Interlock and Level) in each tab (Fig. 2.6.17). The
user can double-click the column to let ScrEdit select the element automatically and allow the user to
edit the detailed property of the selected element in property table.

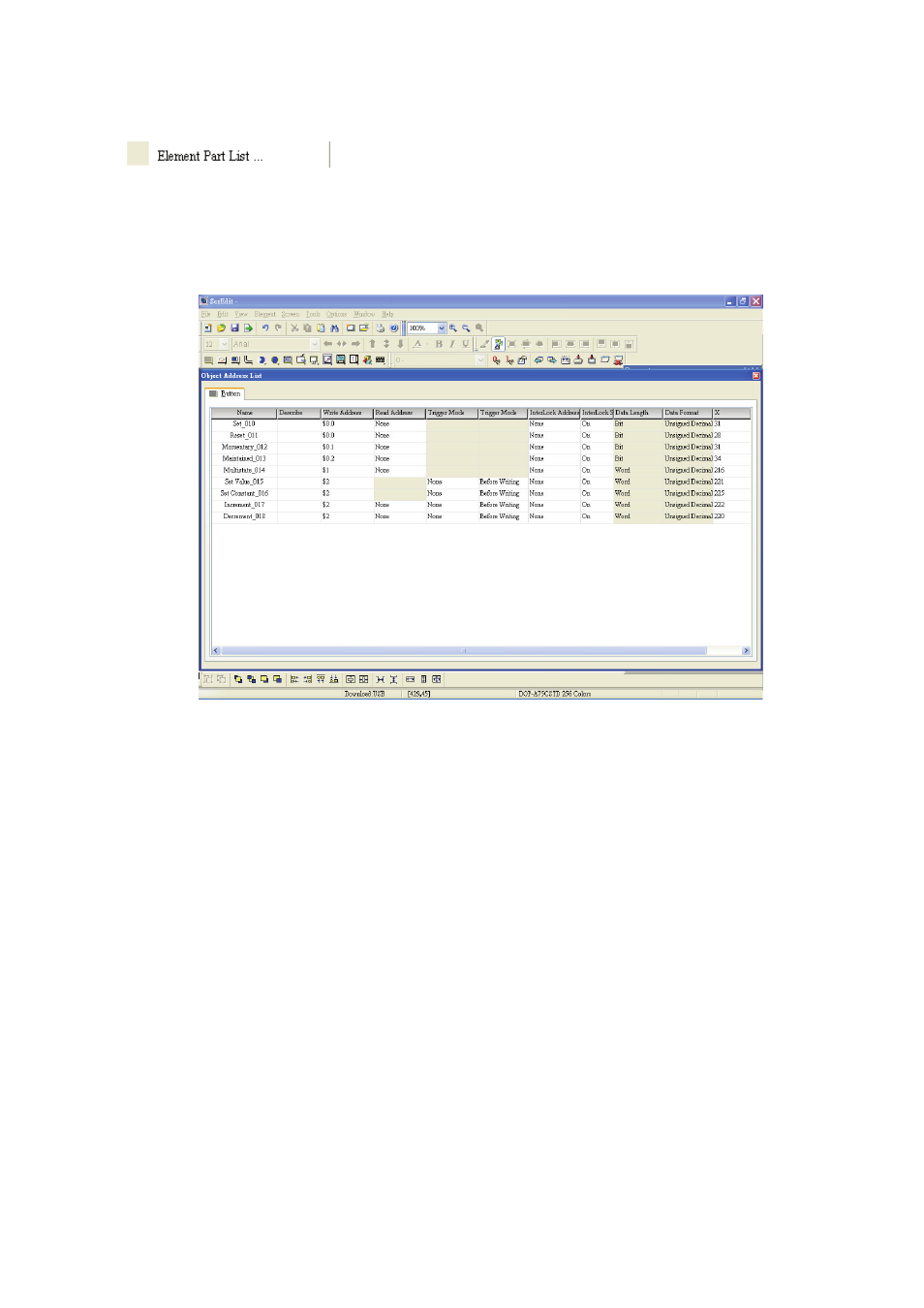

Fig. 2.6.17 Element Part List dialog box
