Appendix B USB Flash Drive Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

B-11

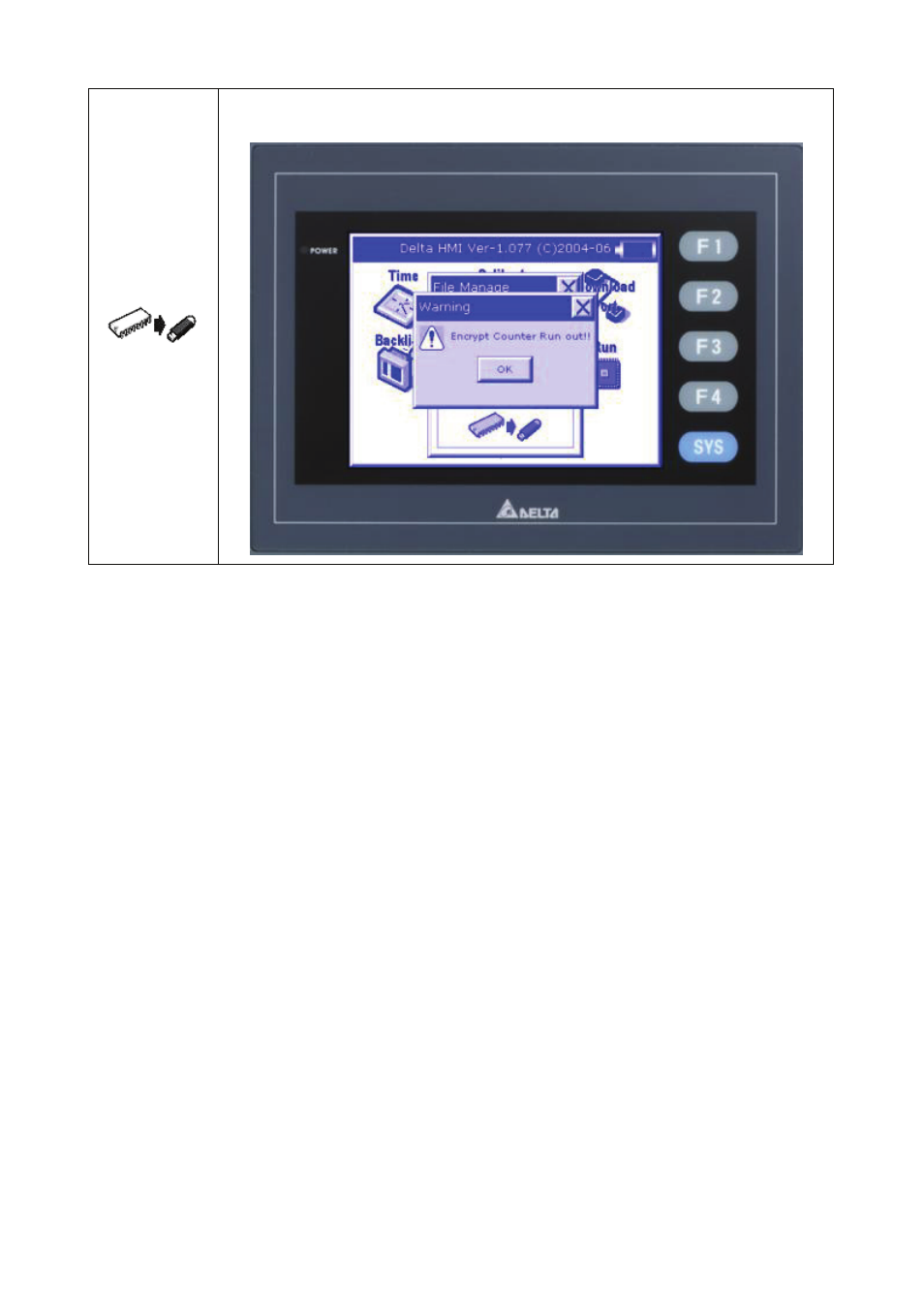

The following warning dialog box will display if the Copy Times exceeds the setting
value.

No Encryption Mode

As shown as the Fig. B.11 on next page, when the user wants to use No Encryption mode, please do not

check the box next to “Enable USB updating check” this option in Options > Configuration > Standard.

Repeat the steps from Fig. B.2 to Fig. B.6 and then connect USB flash drive to HMI. After power in

connected to HMI, power on HMI and a warning dialog box will display as shown as Fig. B.12 on next page.

This warning message is used to ask the user to boot from USB flash drive. When pressing Yes button, your

screen will look like Fig. B.13. Pressing Yes button is to copy the screen from USB flash drive into HMI and

the original screen data stored in HMI will be overwritten (Overwrite ROM File).
