Chapter 3 Element Function|ScrEdit Software User Manual

3-64

Revision Apr. 30th, 2007, 2007PDD23000002

„

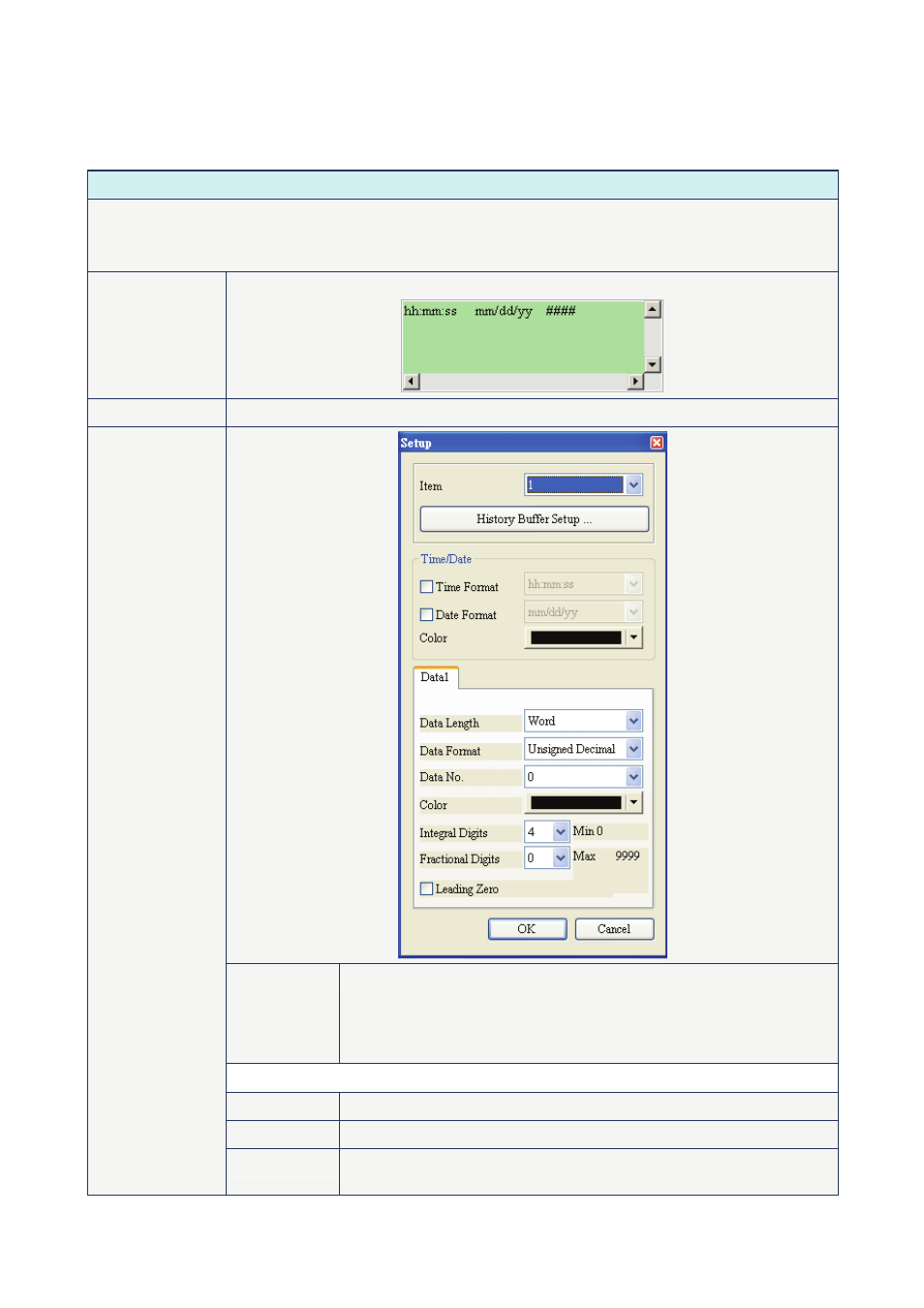

Historical Data Table

Table 3.12.3 Property Description of Historical Data Table Element

Property Description of Historical Data Table Element
Convert the history data to numeric data and display on HMI screen by a data table. The read address in the
History Setup dialog box needs to be set and its data length should be in several words. The range of data
length is within 1 ~ 8words. The Data No. in History Data Detail dialog will also correspond to the selected
Data Length in Buffer Properties of History Setup.
Border Color
Background Color

The below element background color is set to green and its border color is set to gray.

Data Field Number 1~8 data fields can be set.

Logging Buffer Use this option to set the number (No.1 ~ No.X) of history buffer for

reading the data of PLC corresponding address. The user can press the
History Buffer Setup button or click ”Option” > “History Setup”
(Choosing History Setup command from menu bar) to set the PLC
corresponding address.

Time/Date

Time Format

Provide HH:MM:SS, HH:MM two kinds of formats.

Date Format

Provide MM/DD/YY, DD/MM/YY and DD.MM.YY three kinds of formats.

Detail

Color

When time or date format is selected, the user can use this option to
designate the display color.
