Chapter 5 Control Block and Status Block|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

5-5

Bit Number

Function

3

Control flag for Sampling History Buffer 4

4

Control flag for Sampling History Buffer 5

5

Control flag for Sampling History Buffer 6

6

Control flag for Sampling History Buffer 7

7

Control flag for Sampling History Buffer 8

8

Control flag for Sampling History Buffer 9

9

Control flag for Sampling History Buffer 10

10

Control flag for Sampling History Buffer 11

11

Control flag for Sampling History Buffer 12

12~15 Reserved

„

Control Flag Register for Sampling History Buffer

Controls sampling history buffer operation of HMI by the external controller, i.e. PLC. It will sample 1

time once the control flag is triggered to ON (Bit 0 ~ Bit 11 is set to ON). This flag needs be set to OFF

and then ON if the user wants to trigger again.

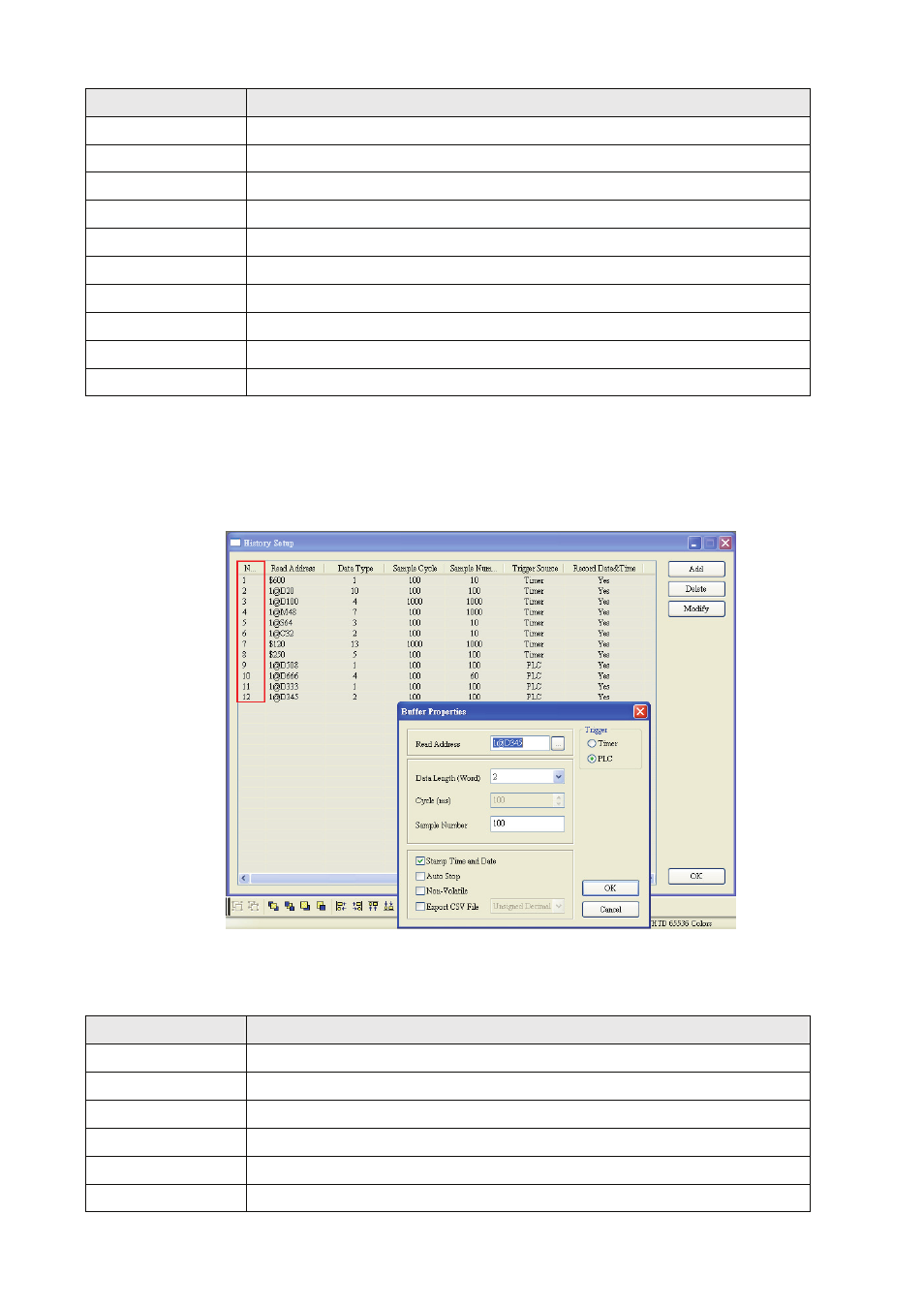

Fig. 5.1.2 History Buffer Setup

„

Register for Clearing History Buffer (HBCR)

Bit Number

Function

0

Clear flag of history buffer 1

1

Clear flag of history buffer 2

2

Clear flag of history buffer 3

3

Clear flag of history buffer 4

4

Clear flag of history buffer 5

5

Clear flag of history buffer 6
