Chapter 3 Element Function|ScrEdit Software User Manual

3-58

Revision Apr. 30th, 2007, 2007PDD23000002

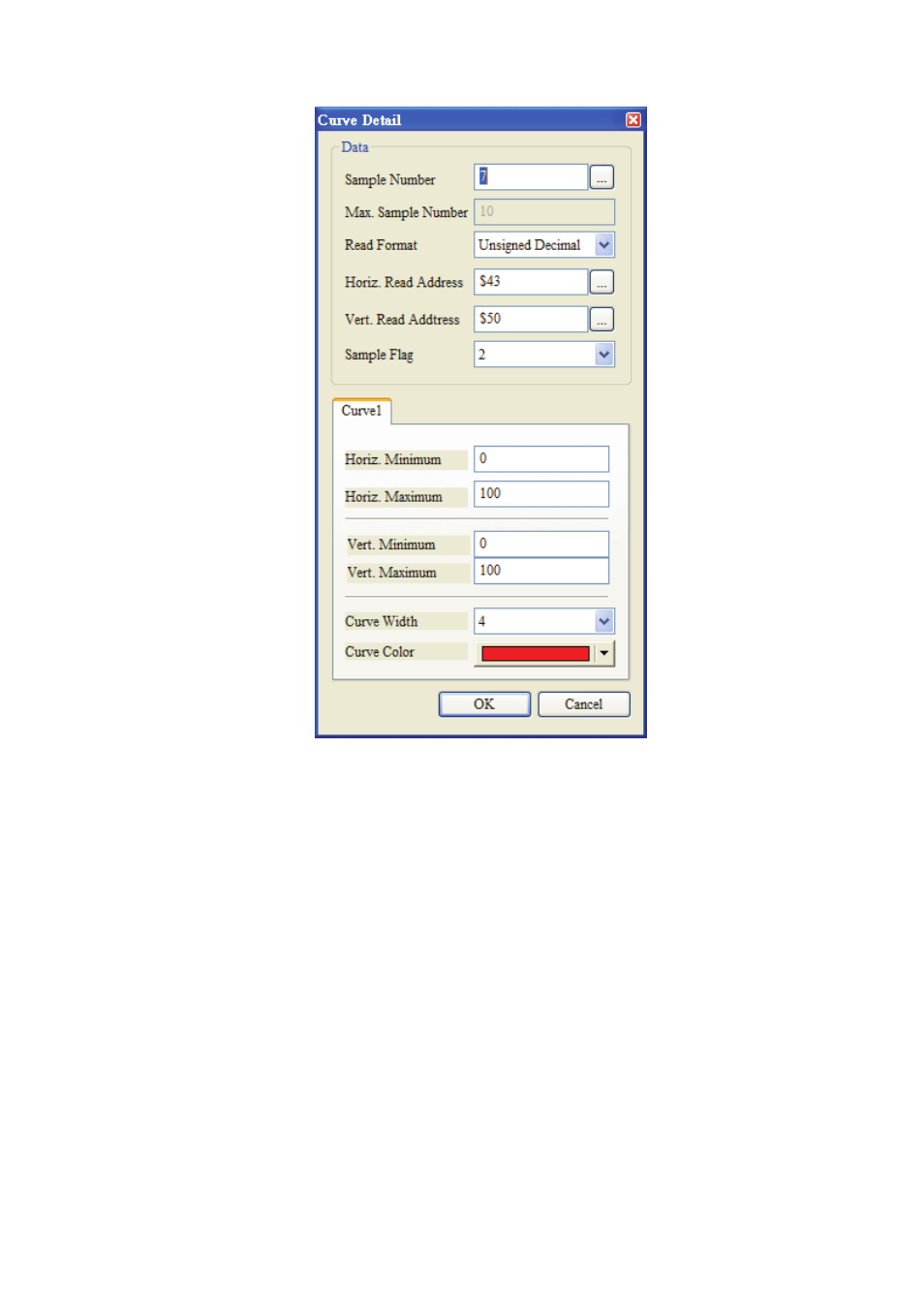

4. Then, the drawing flag of the trend graph, i.e. Trend Draw is $1002.0 and the clear flag of the trend

graph, i.e. Trend Clear is $1002.8; the drawing flag of the X-Y chart, i.e. X-Y Draw is $1002.1 and

the clear flag of the X-Y chart, i.e. X-Y Clear is $1002.9.

5. Create a momentary button, which the memory address is set to $1002.0 on the screen and set

OFF macro as follows:

CLRB $1002.8

Create a momentary button, which the memory address is set to $1002.8 on the screen and set

OFF macro as follows:

CLRB $1002.0

Create a momentary button, which the memory address is set to $1002.1 on the screen and set

OFF macro as follows:

CLRB $1002.9

Create a momentary button, which the memory address is set to $1002.9 on the screen and set

OFF macro as follows:

CLRB $1002.1
