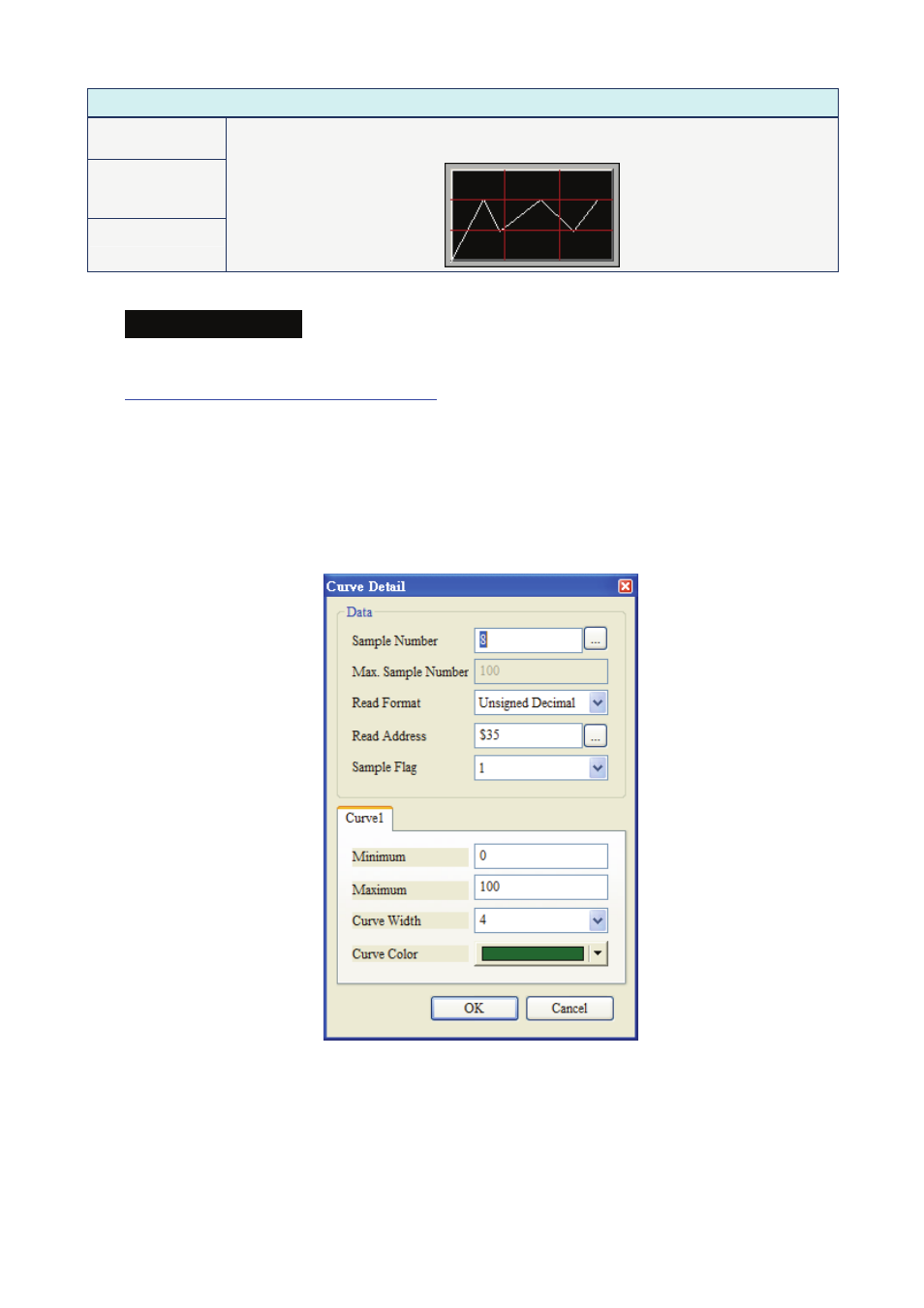

Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-57

Property Description of X-Y Chart Element

Grid Color

Horiz. Line Number

Vert. Line Number

Please refer to the figure below. The grid color is set to red and the grid number in
horizontal and vertical direction are both set to 2.

Curve Element Example

This curve element example can be downloaded via the following link:

http://59.120.64.39:81/phpbb2/files/curve.dop

1. Please

choose

Options > Configuration on the menu bar to find the Standard tab in Configuration

dialog box and set the address of the control block as $1000.

2. Create a trend graph element. Set the Sample Flag to 1, Sample Number to 8, and Read Address

to $35. Your Screen will look like the figure shown below.

3. Create a X-Y chart element. Set the Sample Flag to 2, Sample Number to 7, Horizontal Read

Address to $43 and Vertical Read Address to $50. Your Screen will look like the figure shown on

next page.
