Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-125

„

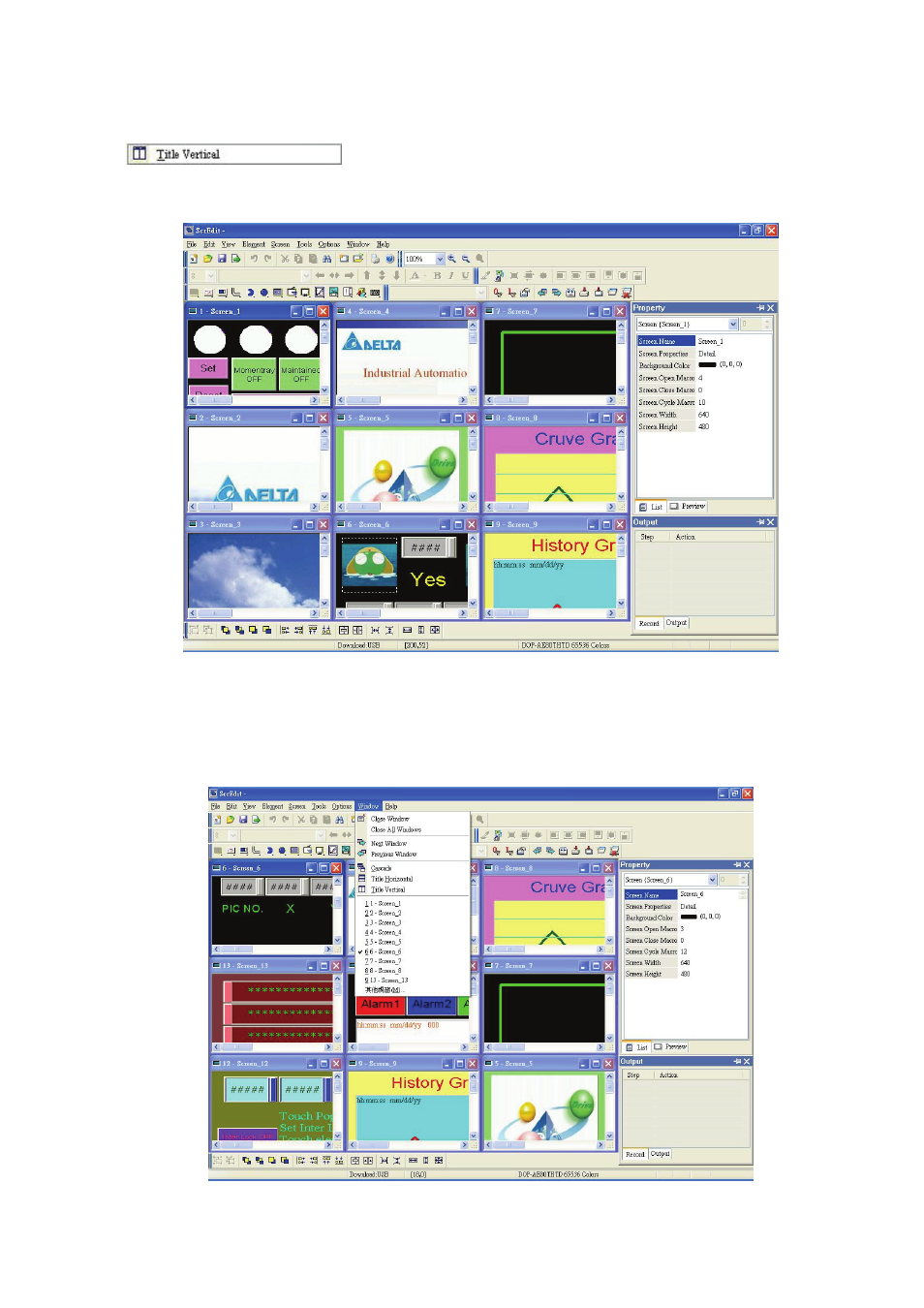

Title Vertical

Display all editing windows from left to right. The user can execute this function by clicking Window >
Title Vertical. The opened windows are displayed vertically as shown as Fig. 2.10.5.

Fig. 2.10.5 Screen display after choosing Title Vertical command

„

Window Summary

ScrEdit shows a list of all opened screens at the bottom of “Window” pull-down menu for quick access.
Just click the file name to open the file and view the screen directly.

Fig. 2.10.6 Window Summary
