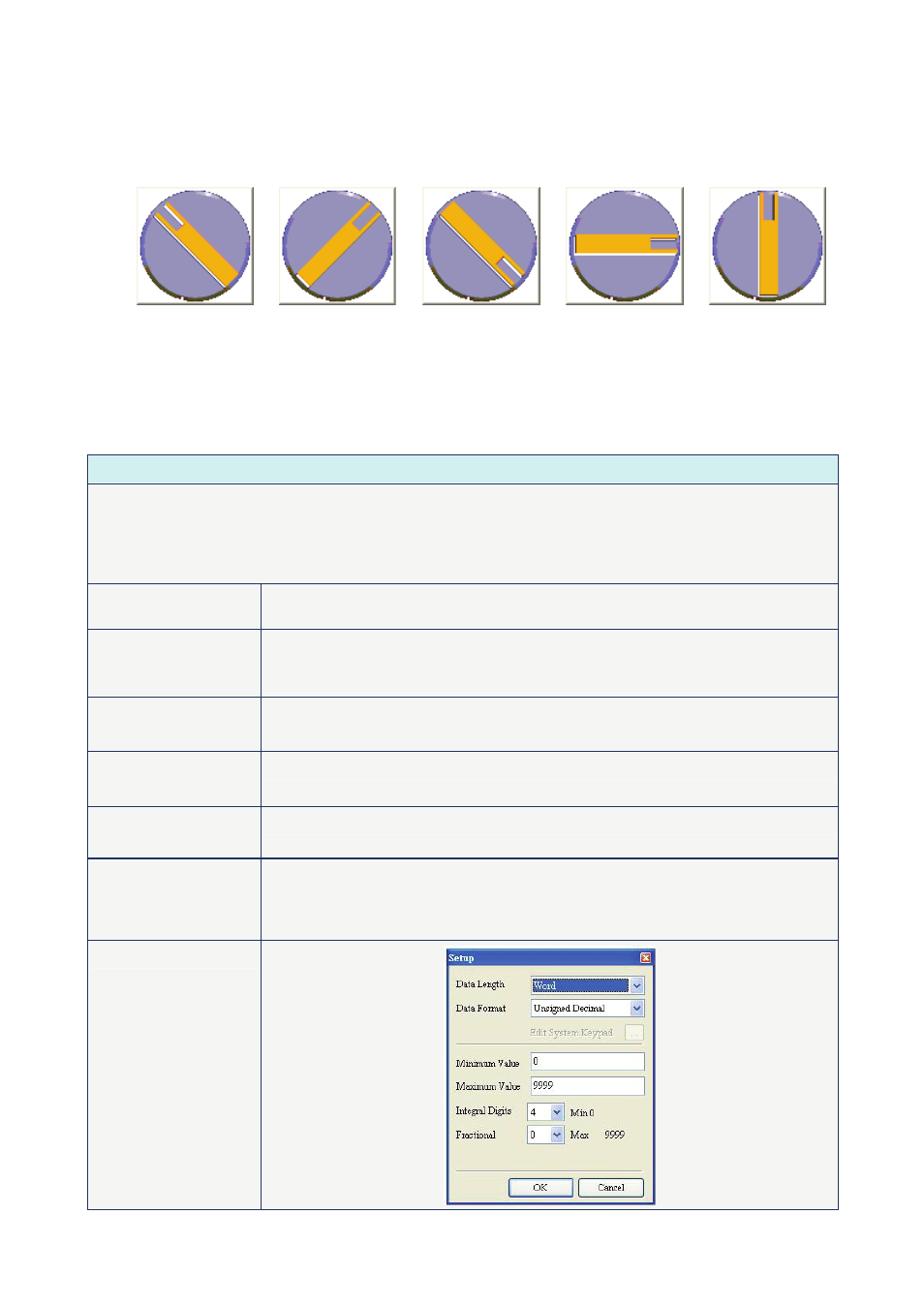

Example of Multistate Buttons:
When the data length is LSB (D100.0 ~ D100.4):
S0=D100.0 ON
S1=D100.1 ON
S2=D100.2 ON
S3=D100.3 ON
S4=D100.4 ON
Fig. 3.2.3 Multi-state buttons display
Set Value Button
Table 3.2.4 Property description of Set Value buttons
Property Description of Set Value Buttons
After pressing this button on the screen, a system built-in numeric keypad (TEN-KEY) will show up and the
user can use it to input the setting value directly. When pressing ENTER key, HMI will send the input setting
value to PLC corresponding register. The maximum and minimum input setting values are all user-defined.
The user can also specify the trigger mode to trigger the designated PLC address before or after writing the
setting value.
Write Address
The address can be internal memory or the controller address. (Please refer to
Table 3.2.2 Property Description of General Buttons.)
Text / Text Size
Font / Text Color
The user can set the text, text size, font and text color provided by Windows® to
determine the text display on the element. (Please refer to Table 3.2.2 Property
Description of General Buttons.)
Picture Bank Name
Picture Name
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Transparent Effect
Transparent Color
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Foreground Color
Style
(Please refer to Table 3.2.2 Property Description of General Buttons.)
Trigger
Trigger Mode
The user can use this setting to trigger the designated controller address to be ON
before or after writing the setting value. Please note that this function can only
trigger the controller address to be ON. If the controller address needs to be
triggered again, the user should set the address to be OFF manually.
Detail Range Setup
