Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-3

To select a directory other than the default directory, click Browse. A list of available directories appears.

Highlight the desired directory for the Delta HMI ScrEdit and click OK, then Next> for the next step.

If necessary, click < Back button to take you back through Setup dialog boxes one by one.

3. Step 3: After pressing Next, system will ask you to select the installation software, i.e. ScrEdit (Fig.

2.1.4).

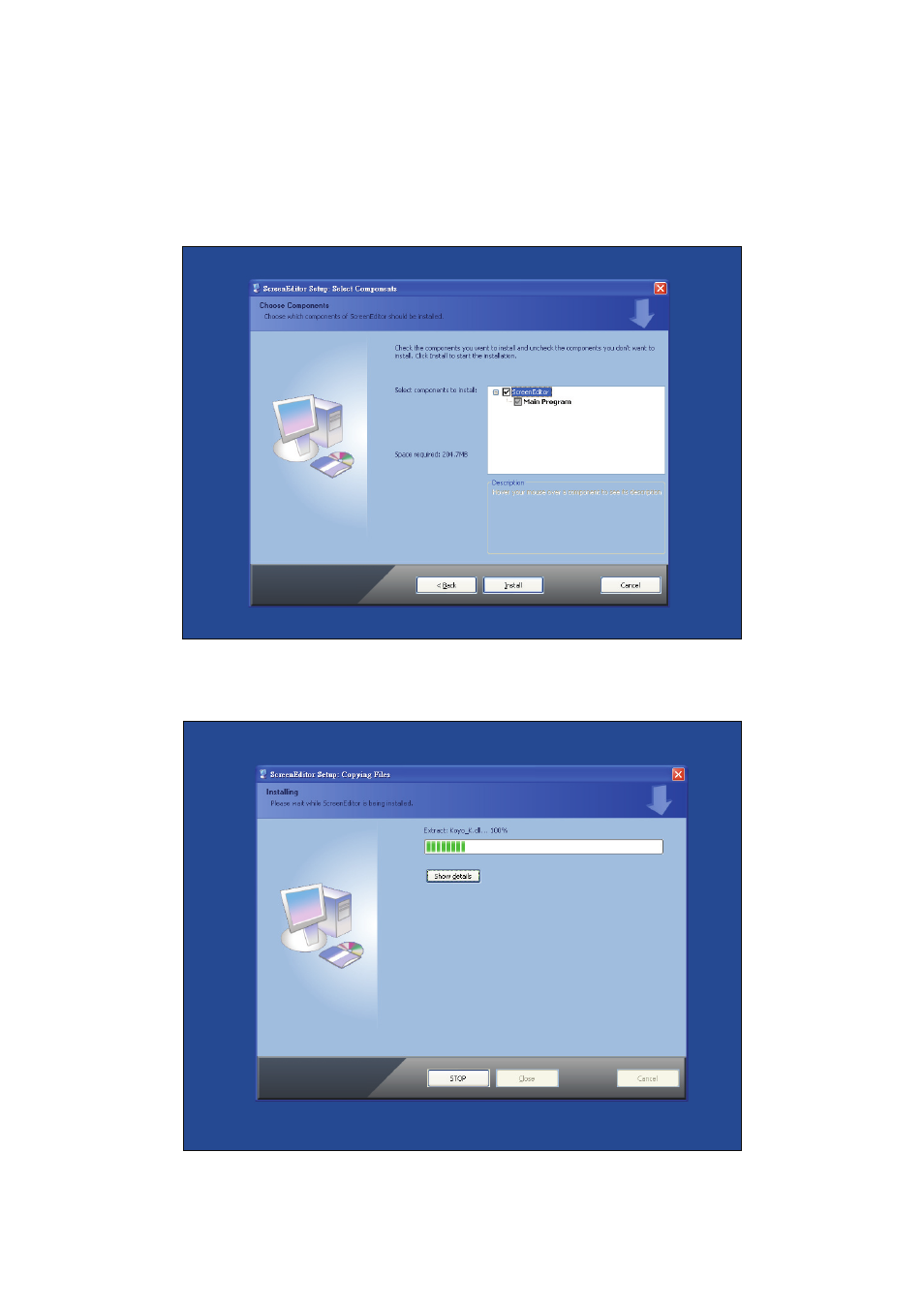

Fig. 2.1.4 Select ScrEdit

4. Step 4: Then click Install button to start ScrEdit installation (Fig. 2.1.5).

Fig. 2.1.5 Starting ScrEdit installation
