Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-72

Revision Apr. 30th, 2007, 2007PDD23000002

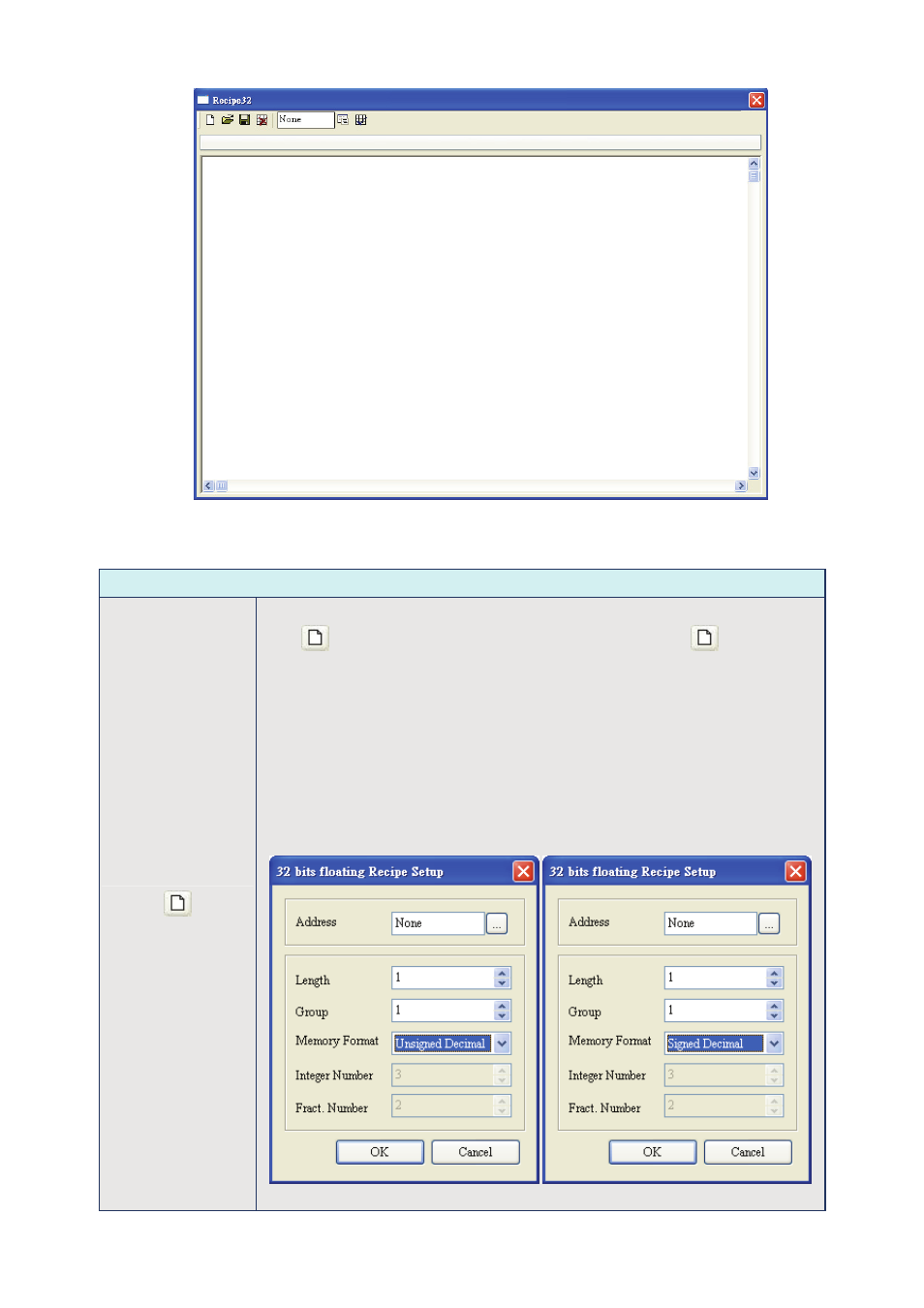

Fig. 2.8.19 32 bits Floating Recipe Setup dialog box

Table 2.8.3 32 bits Floating Recipe Editing

32 bits Floating Recipe Setup

New: Create a new 32 bits floating recipe file

Press

to create a new 32 bits floating recipe. After clicking

, a 32 bits

floating recipe setup dialog box will display and the user can use it to set the
settings of a 32 bits floating recipe. The user can determine the recipe storage
address, the length and group number of the recipe, the memory format, and the
integer & fractional digit number of the recipe data. There are three kinds of
memory format provided, including Unsigned Decimal, Signed Decimal and
Floating (Fig. 2.8.20, Fig. 2.8.21 and Fig. 2.8.22). Integer and fractional digit
number cannot be selected when the memory format is set to Unsigned Decimal
and Signed Decimal. These two options is only available when the memory format
is set to Floating. But the total of the Integer and fractional digit number cannot
exceed 7 digits. For the number of the 32 bits floating recipe, up to 255 recipes
can be set in a 32 bits floating recipe file.

Fig. 2.8.20 Fig. 2.8.21
