Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-38

Revision Apr. 30th, 2007, 2007PDD23000002

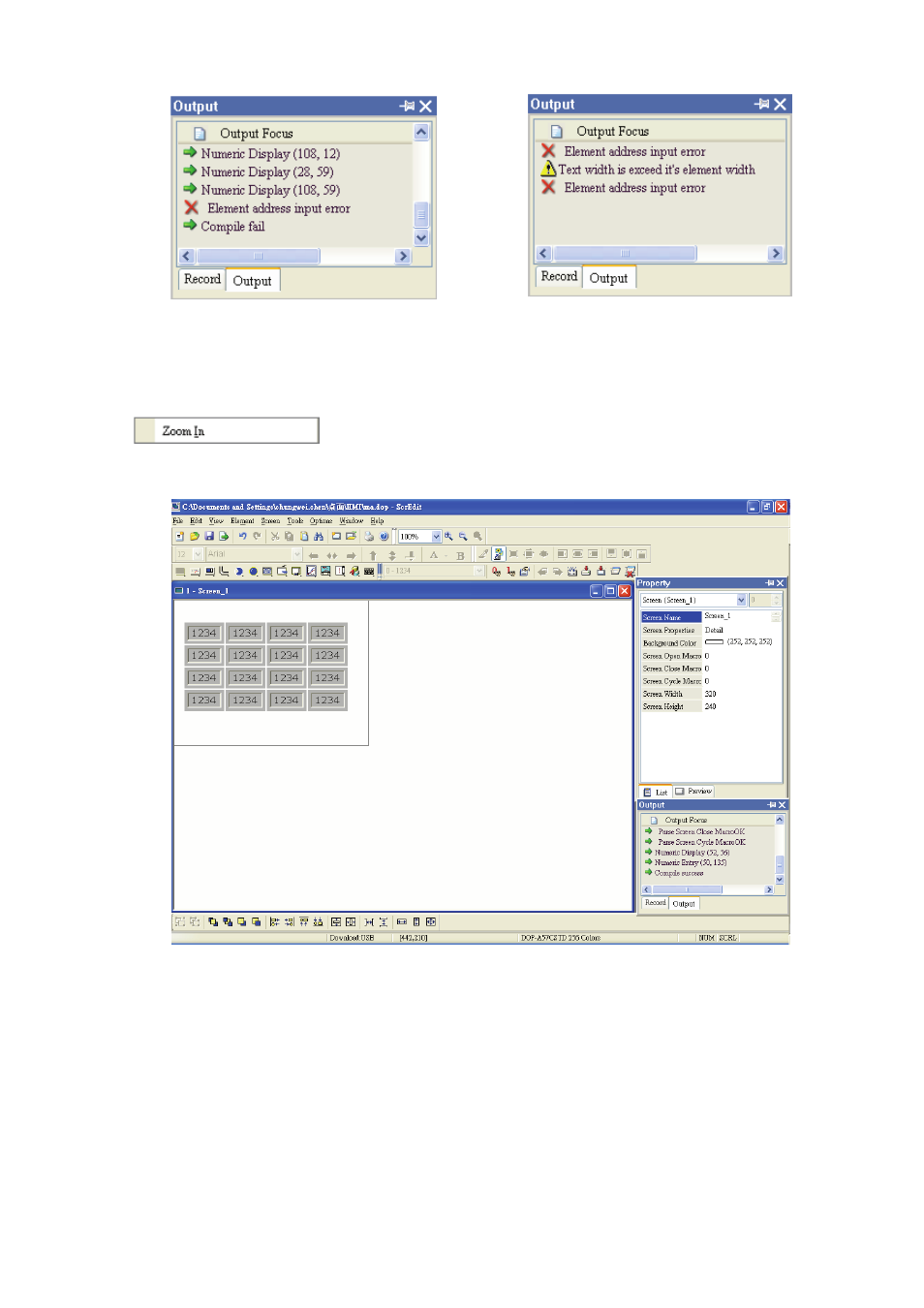

Fig. 2.5.6 Output result of compile operation

Fig. 2.5.7 Error output

„

Zoom In

Zoom in to get a close look at the elements on ScrEdit work place. (Refer to Fig. 2.5.8, Fig. 2.5.9)

Fig. 2.5.8 Zoom level = 100% (Before Choosing Zoom In command)
