Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

2-7

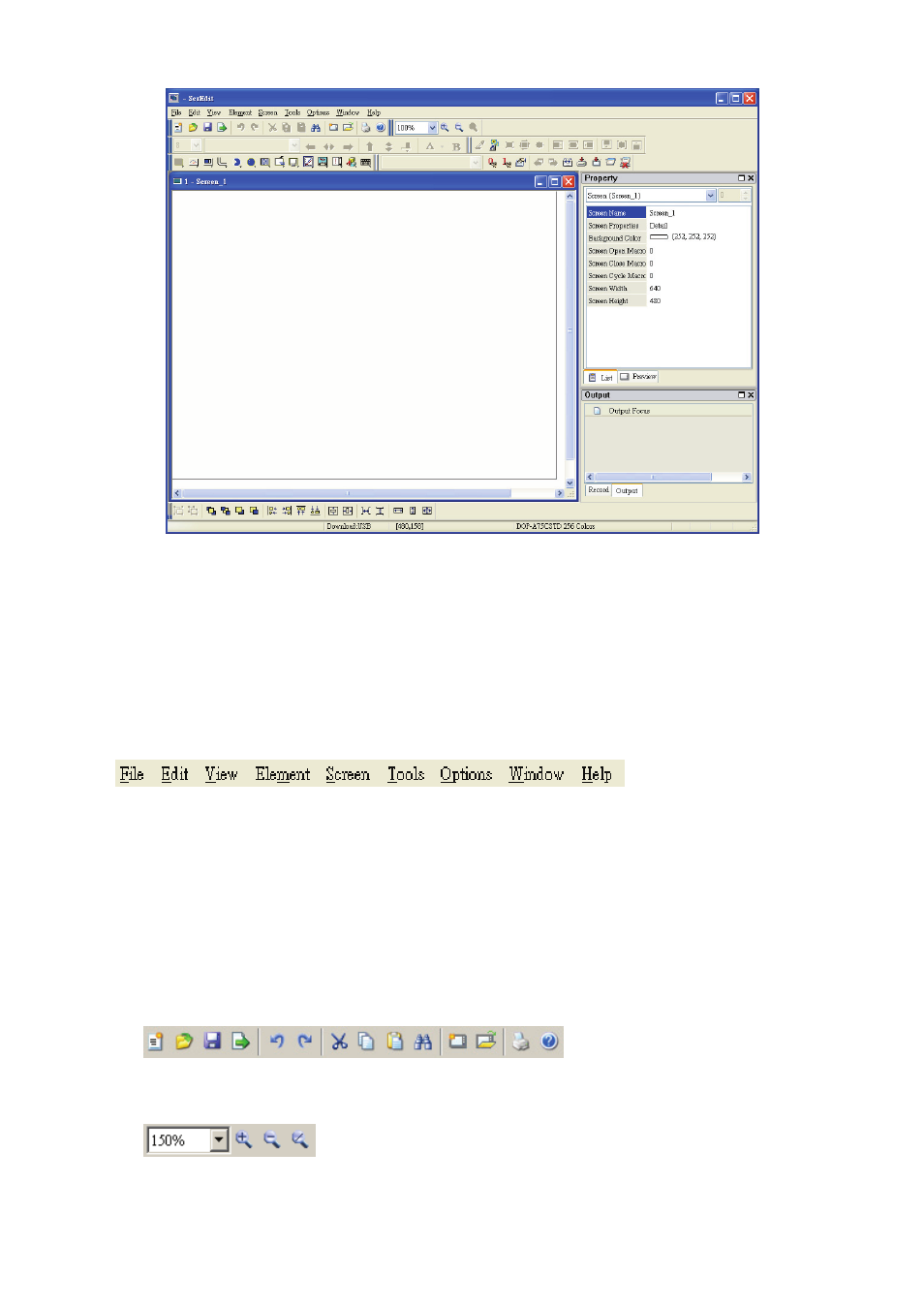

Fig. 2.2.5 New project screen of ScrEdit

There are five parts in the following for ScrEdit editing window.

„

Menu Bar

There are nine functions for selection: File, Edit, View, Element, Screen, Tools, Options, Window, and

Help.

„

Toolbar

Toolbar (Fig. 2.2.6) is like those toolbar in Windows® program. It is easy to use for editing and the user

can arrange its position freely. For example, the user can move the Toolbar to the left side of the screen.

Also, the user can arrange the toolbar position by their usage. The followings are the available toolbar on

ScrEdit.

1. Standard

Toolbar

2. Zoom

Toolbar
