Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-6

Revision Apr. 30th, 2007, 2007PDD23000002

When ScrEdit is activated for the first time, the first window to show up is as follows. There are only File (F),

View(V), Option(O) and Help(H) on the toolbar.

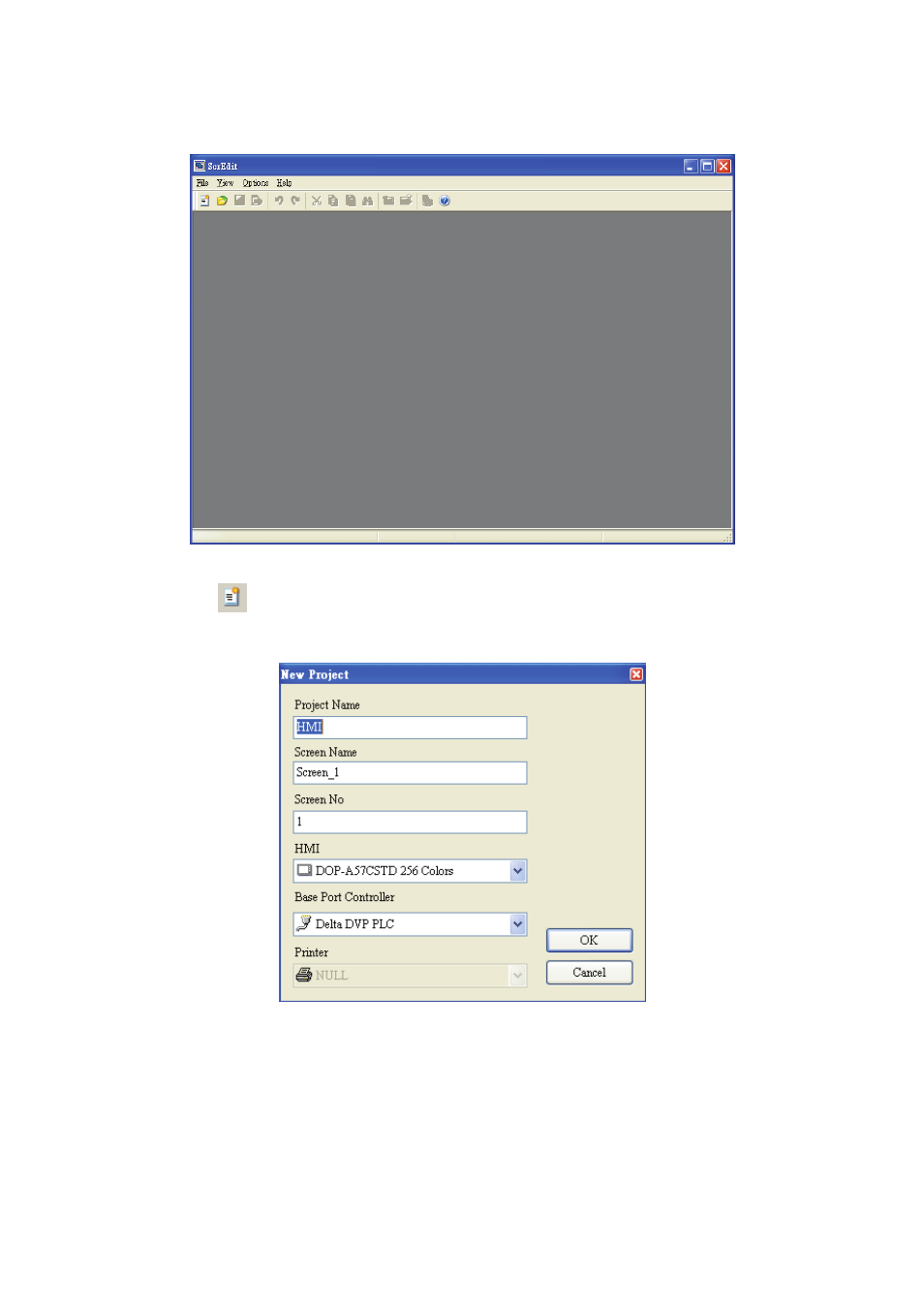

Fig. 2.2.3 Screen without editing file

2. After

pressing or click File > New, it can create a new project and you will get a dialog box as

shown in the following. (Fig. 2.2.4)

Fig. 2.2.4 Creating a New project

3. Enter the Project Name, Screen Name, Screen No. and select connected HMI, controller or printer.

Then, click OK. It can create a new project in ScrEdit as shown in the following. (Fig. 2.2.5)
