Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-60

Revision Apr. 30th, 2007, 2007PDD23000002

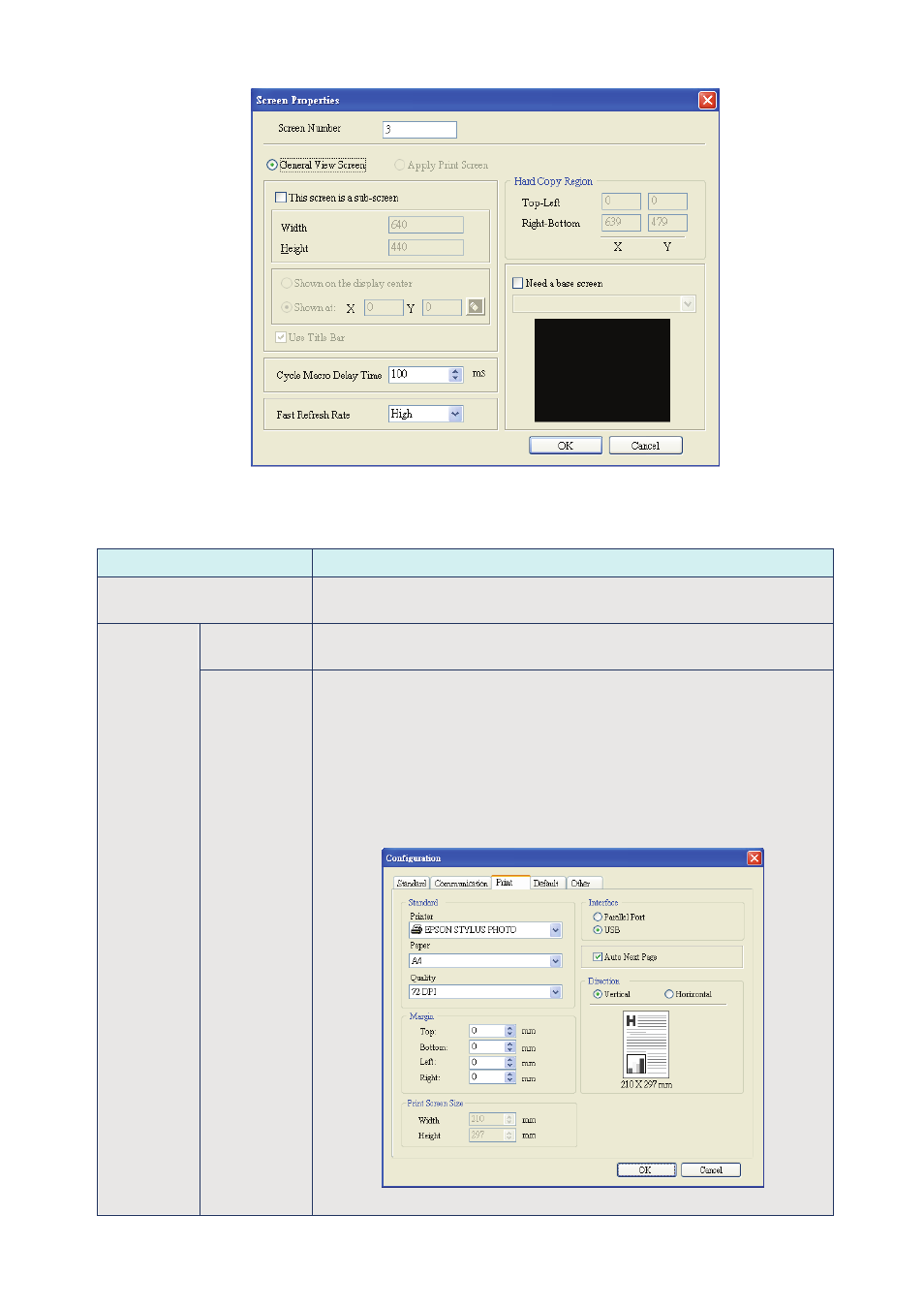

Fig. 2.7.14 Screen Properties dialog box

Table 2.7.2 Screen Properties setting

Function

Description

Screen Number

The screen number range is within 1~65535 and the number cannot be
repeated.

General View
Screen

Regarded as general view screen. The element created by the user can be
downloaded to HMI after compile operation and display on HMI screen.
1. Regarded as print screen. The printer can print the element created by

the user after a compile operation. This option is only available in DOP
series HMI which supports printer function.

2. When Apply Print Screen function is selected, the editing range will be

scaled to the actual paper size of the printer. The user can only print
the elements within the range of the paper size. This option is usually
used for print typesetting.

The user can find a printer setting by clicking Option > Configuration >
Print shown as Fig. 2.7.15 below.

Screen
Application

Apply Print
Screen

Fig. 2.7.15 Print tab in Configuration option
