Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual

2-44

Revision Apr. 30th, 2007, 2007PDD23000002

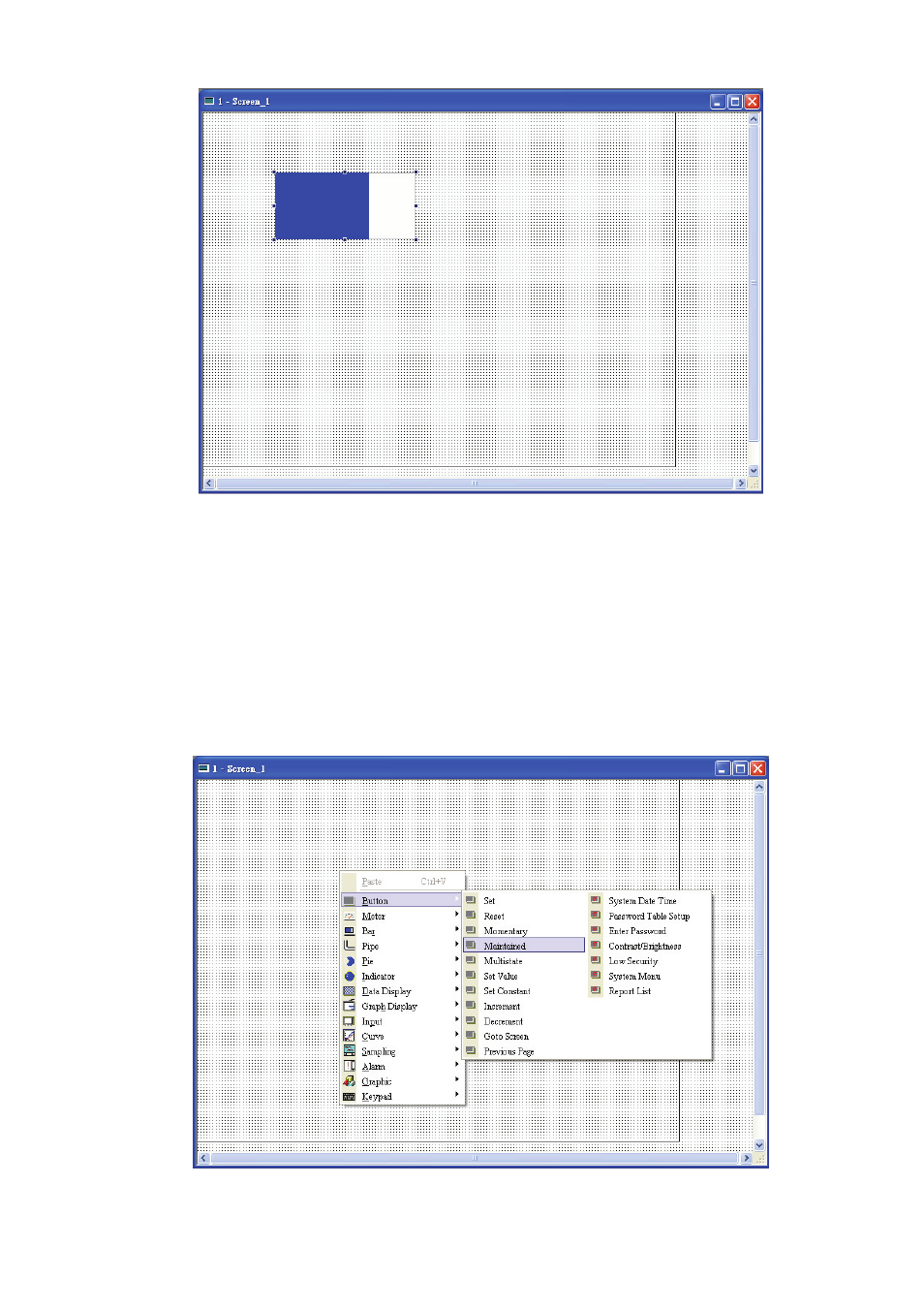

Fig. 2.6.3 Element display (Create an element)

The user can also right-click the mouse to select the desired element. For the property of each element,

please refer to Chapter 3 for detailed description.

„

Create an Element

The user can select an element by right-clicking the mouse in work place. Place your mouse pointer in

work place and right-click the mouse to get pull-down menu. Then, the user can select the desired

element and determine the element size by left-clicking the mouse. Later set the property of the

element (Fig. 2.6.4, Fig. 2.6.5, Fig. 2.6.6 and Fig. 2.6.7).

Fig. 2.6.4 Right-click the mouse to select the element
