Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-121

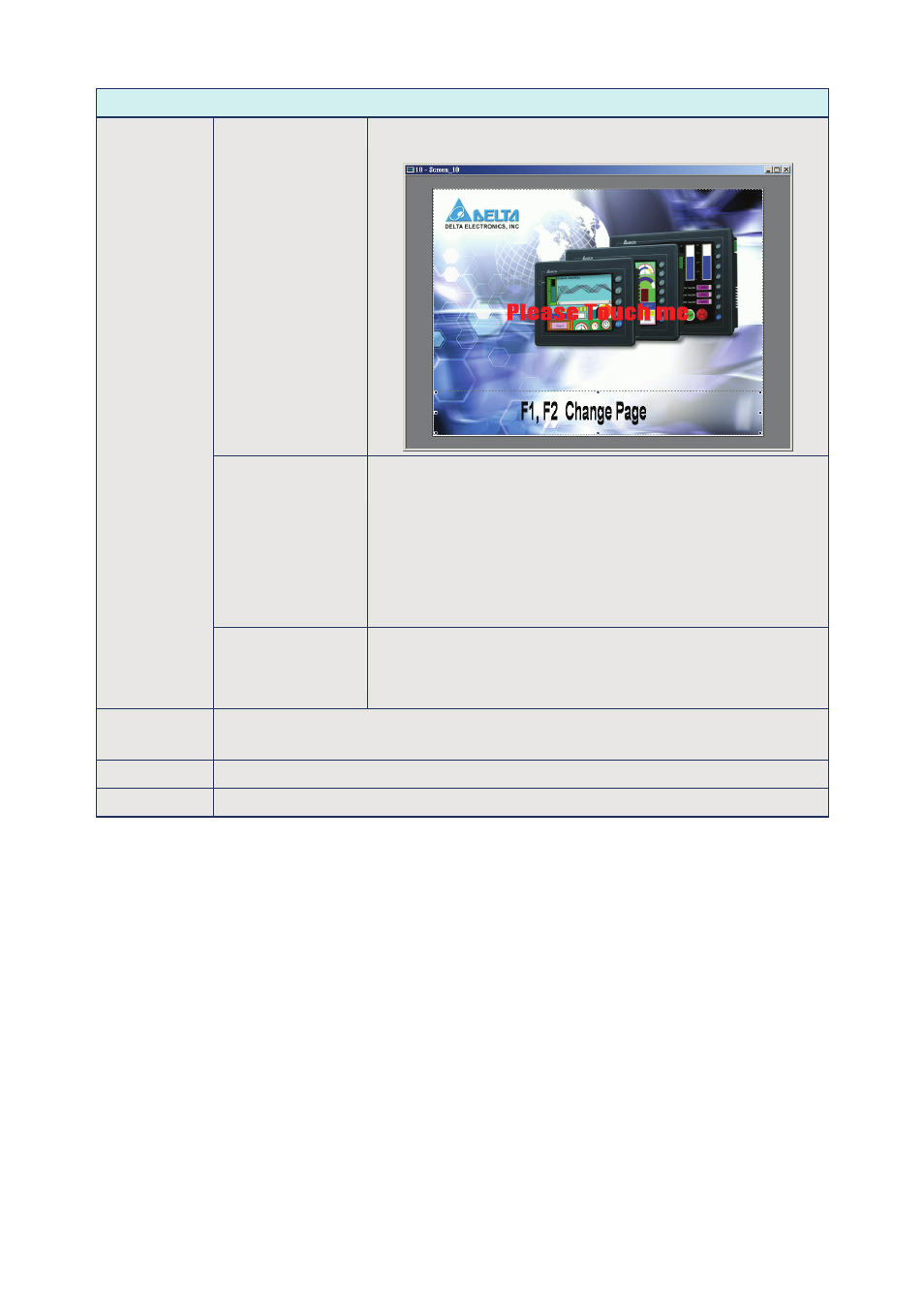

Environment Dialog Box
Center Drawing Area When this option is selected, the editing screen will be placed in
the center position.
Include Picture Data
when uploading If this option is selected, all pictures will be uploaded when ScrEdit
upload function is enabled. All uploaded pictures will be saved in
a file named as “_L
OCAL T EMP 01. PIB ”. The “Picture Bank Name”
and the “Picture Name” (set in Property ducking window) of the
editing elements will refer to and link to this file too. If ScrEdit ends
the editing abnormally, the file name will be named as
“_L
OCAL T EMP 02. P I B , _L OCAL T EMP 03. PIB …”, and vise versa when
execute uploading next time. The last two numbers at the end of
the file name will increase progressively.
Auto Convert Input
Address To Tag
Name For example, if the user wants to replace PLC address 1@Y0 with
the word “OS”, just define it in Tag Table option in advance. When
this option is selected, ScrEdit will automatically convert input
address 1@Y0 to the word “OS”.
Driver Reinstall HMI USB Drive: Press it to reinstall the HMI USB driver
Uninstall HMI USB Drive: Press it to uninstall the HMI USB driver
OK Press OK button to save the modified settings and exit the Environment dialog box.
Cancel Press Cancel button exit the Environment dialog box without saving.
