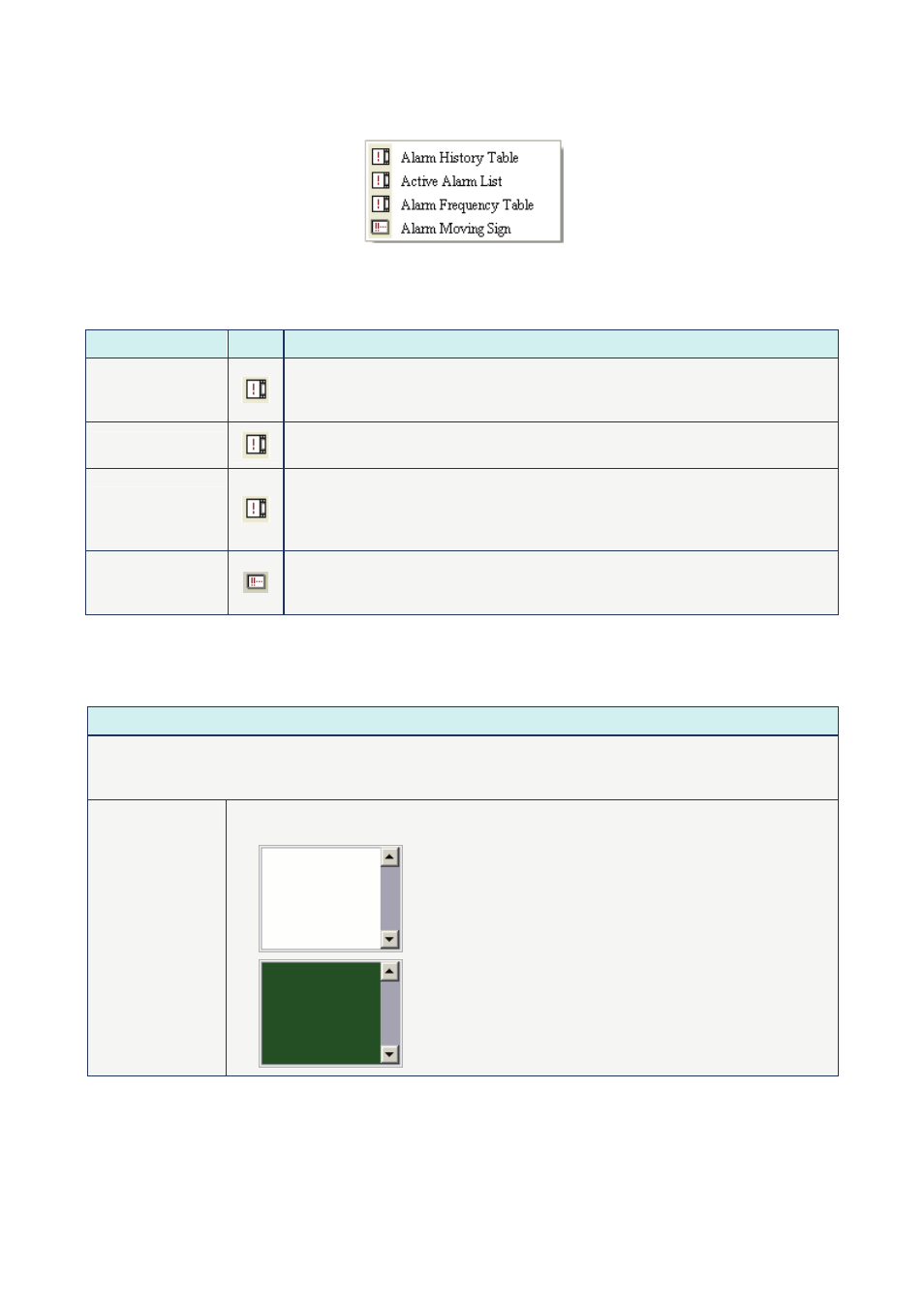

background image

Chapter 3 Element Function|ScrEdit Software User Manual

3-68

Revision Apr. 30th, 2007, 2007PDD23000002

3.13 Alarm Element

Fig. 3.13.1 Alarm element options

Table 3.13.1 Function of Alarm elements

Element Type

Icon

Function

Alarm History Table

HMI will monitor and read the read address in a fixed time automatically. If
some certain Bit contact of the address is ON or OFF, the alarm message will
be converted to Alarm History Table element and display on the screen.

Active Alarm List

HMI will only display the current alarm message by using Active Alarm List
element on the screen.

Alarm Frequency

Table

HMI will monitor and read the read address in a fixed time automatically. If
some certain Bit contact of the address is ON or OFF, the ON or OFF frequency
of the contact will be converted to Alarm Frequency Table element and display
on the screen.

Alarm Moving Sign

HMI will monitor and read the read address in a fixed time automatically. If
some certain Bit contact of the address is ON or OFF, the current alarm
message will display on the screen via Alarm Moving Sign element.

„

Alarm History Table

Table 3.13.2 Property Description of Alarm History Table Element

Property Description of Alarm History Table Element

HMI will monitor and read the read address in a fixed time automatically. If some certain Bit contact of the
address is ON or OFF, the alarm message will be converted to Alarm History Table element and display on
the screen.

Background Color The background color of the following two elements is set to white and blackish green

respectively.

The background color is set to white.

The background color is set to blackish green.
