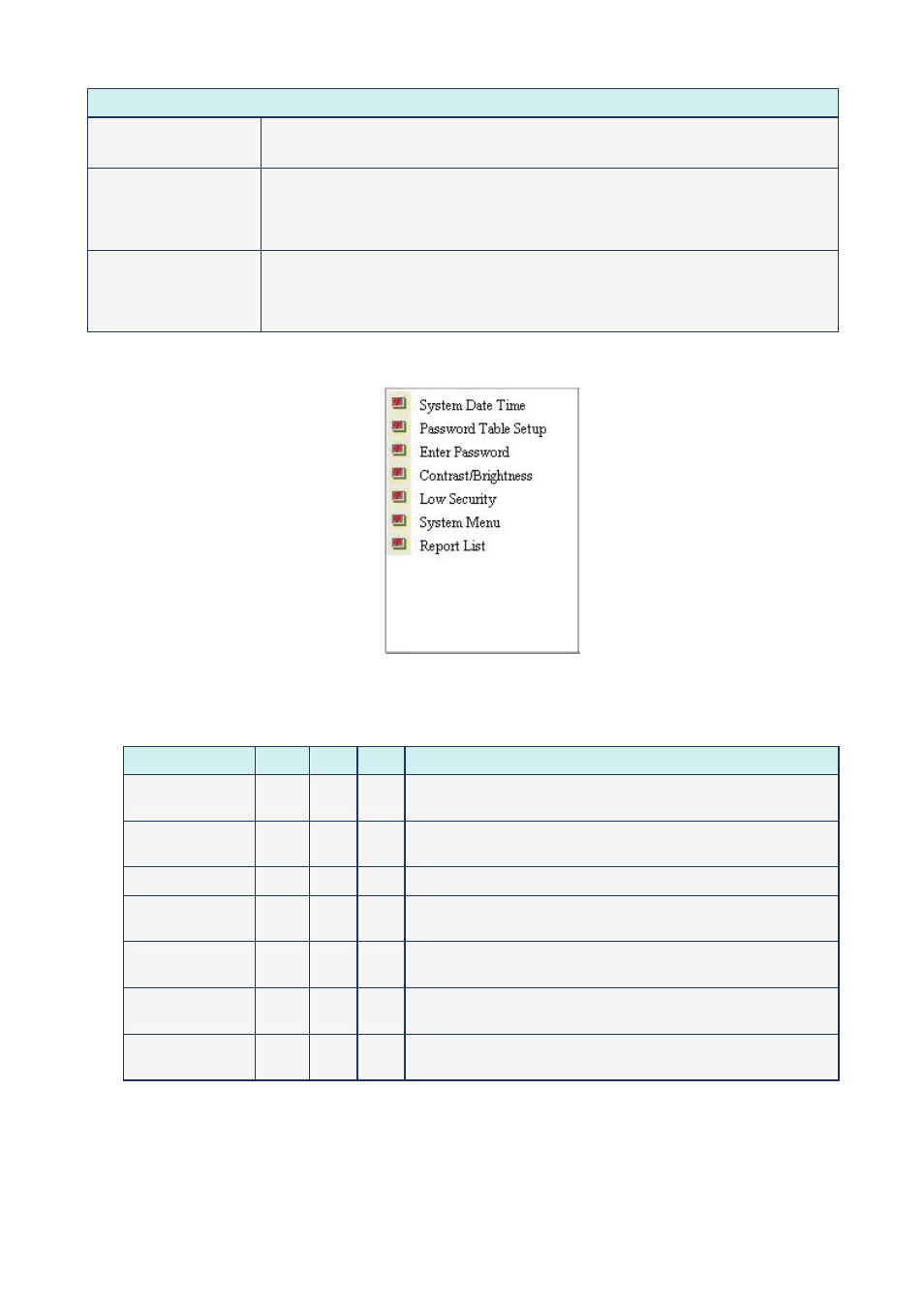

background image

Chapter 3 Element Function|ScrEdit Software User Manual

Revision Apr. 30th, 2007, 2007PDD23000002

3-15

Property Description of Goto Screen / Previous Page / Previous View Buttons

InterLock Address
InterLock Level

When InterLock Address is set to be ON or OFF (this is determined by the property
of “InterLock Level”), this button can be enabled.

Before Execute Macro If this option is set, when the user presses the button, the system will execute the

command of this macro first and then perform the operation of this button. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.

After Execute Macro

If this option is set, when the user presses the button, the system will perform the
operation of this button first and then execute the command of this macro. But, if
the state of the button is not triggered by pressing the button (via macro or external
signal), the command of this macro will not be executed.

„

System Function Button

Fig. 3.2.5 System function button options

Table 3.2.8 System function buttons

Button Type

Macro Read Write

Function

System Date Time No

No

No

It is used to set HMI system time and date (year-month-day,
hours:minutes:seconds)

Password Table
Setup

No

No

No It is used to set all password priority.

Enter Password

No

No

No HMI provides passwords function.

Contrast
Brightness

No

No

No It is used to adjust HMI contrast and brightness.

Low Security

No

No

No

After pressing this button, HMI will set the current priority to be
the lowest level (the lowest level is 0).

System Menu

No

No

No

After pressing this button, HMI will change screen to system
menu.

Report List

No

No

No

After pressing this button, HMI will output the screen data to
the specific device. It is usually used with print function.
